Small Manual Metal Pipe Tube Tapering Machine

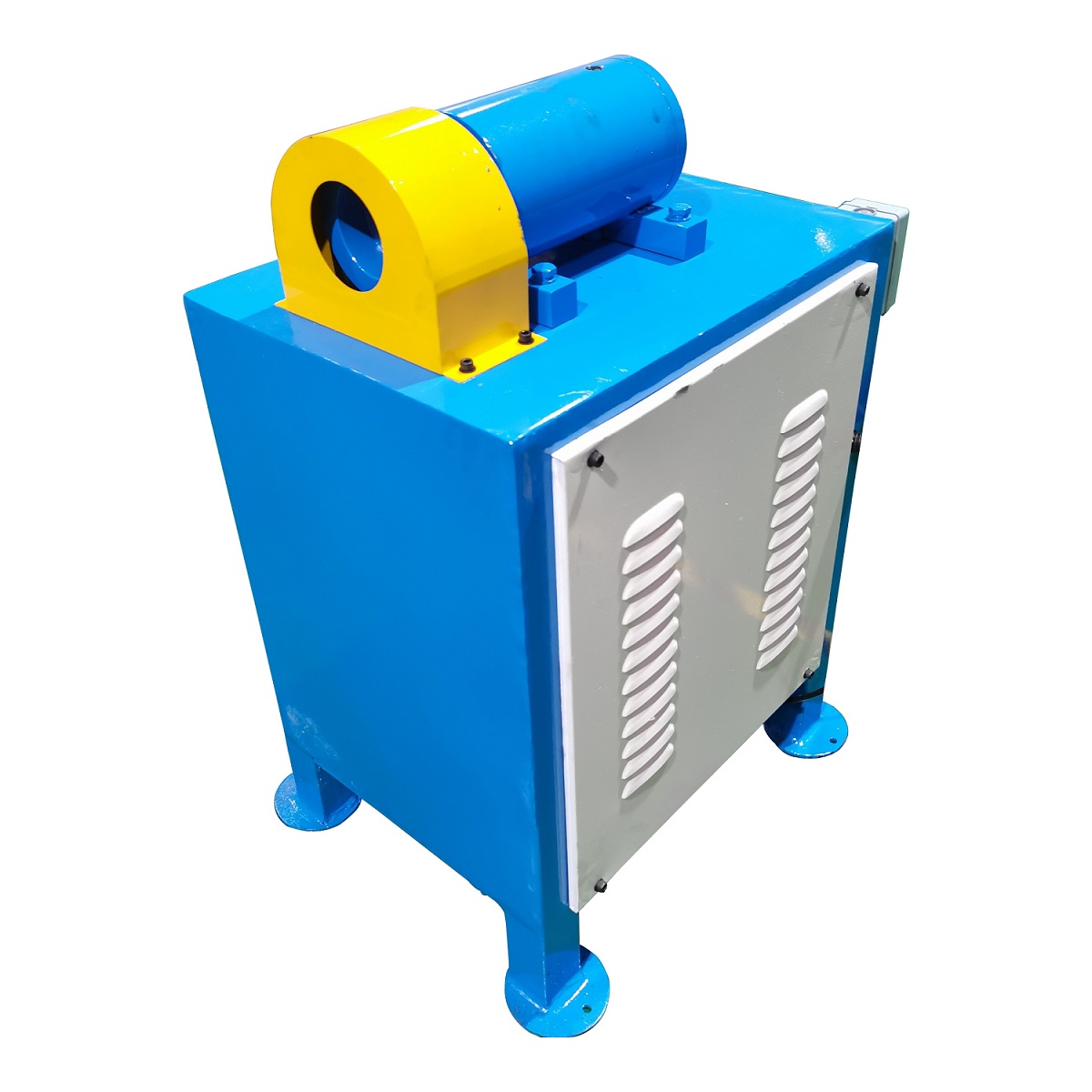

small manual metal pipe tube tapering machine img4

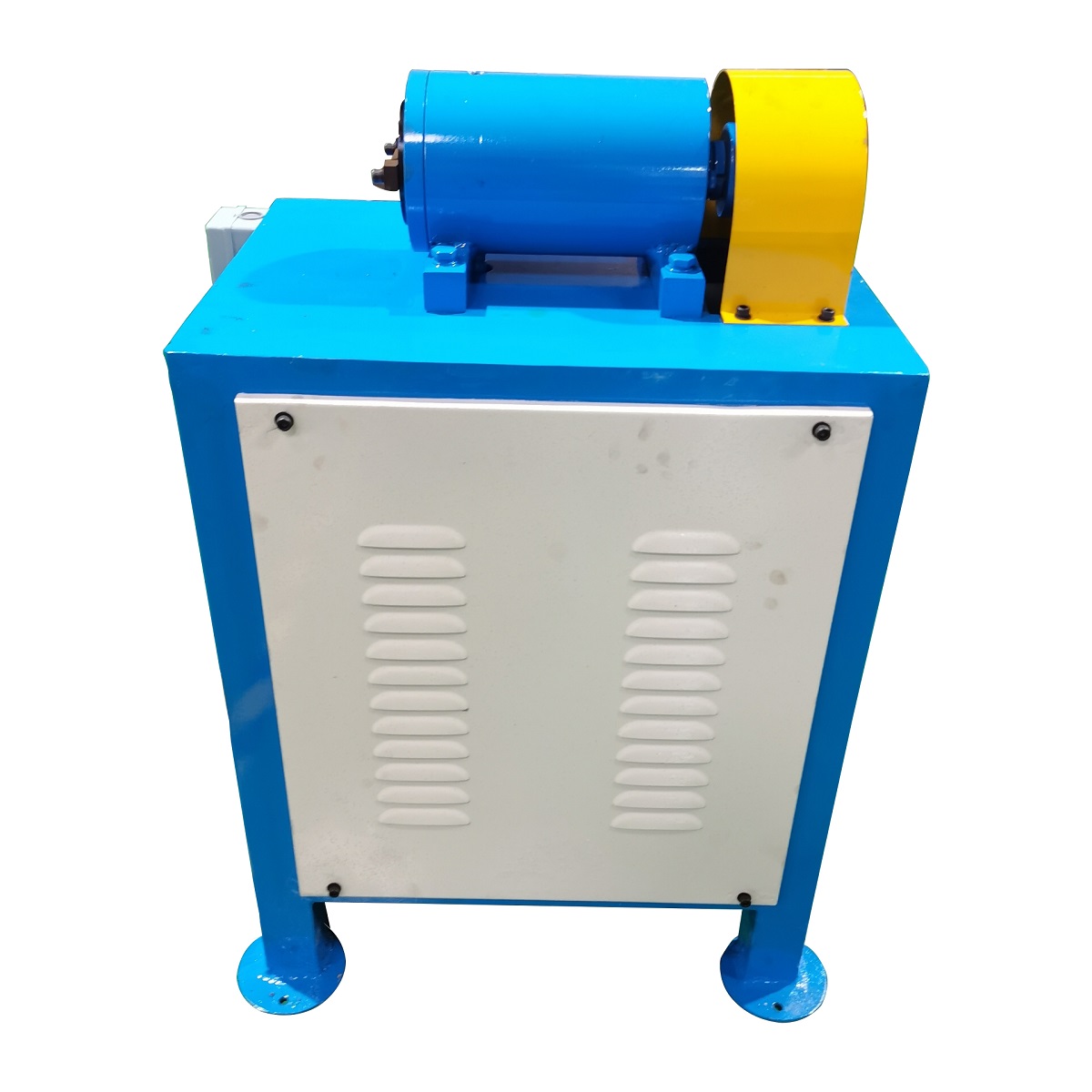

small manual metal pipe tube tapering machine img3

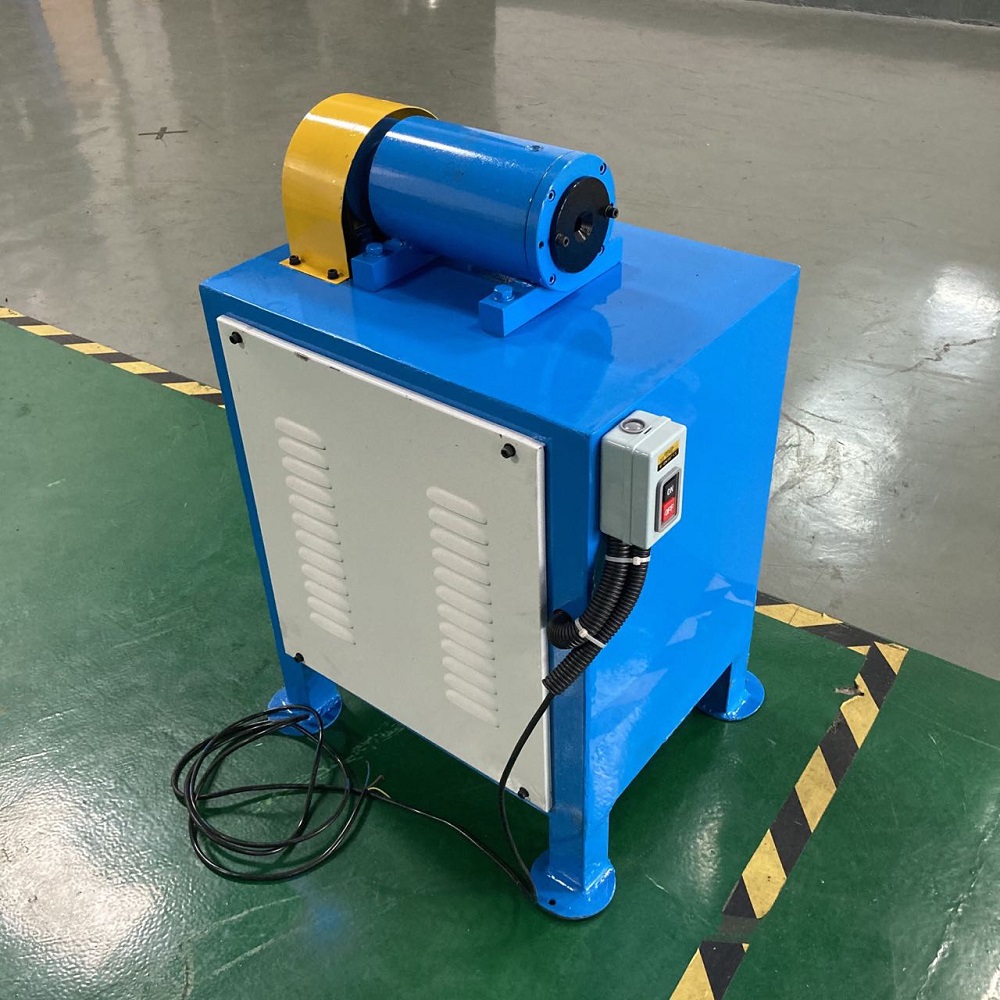

small manual metal pipe tube tapering machine img1

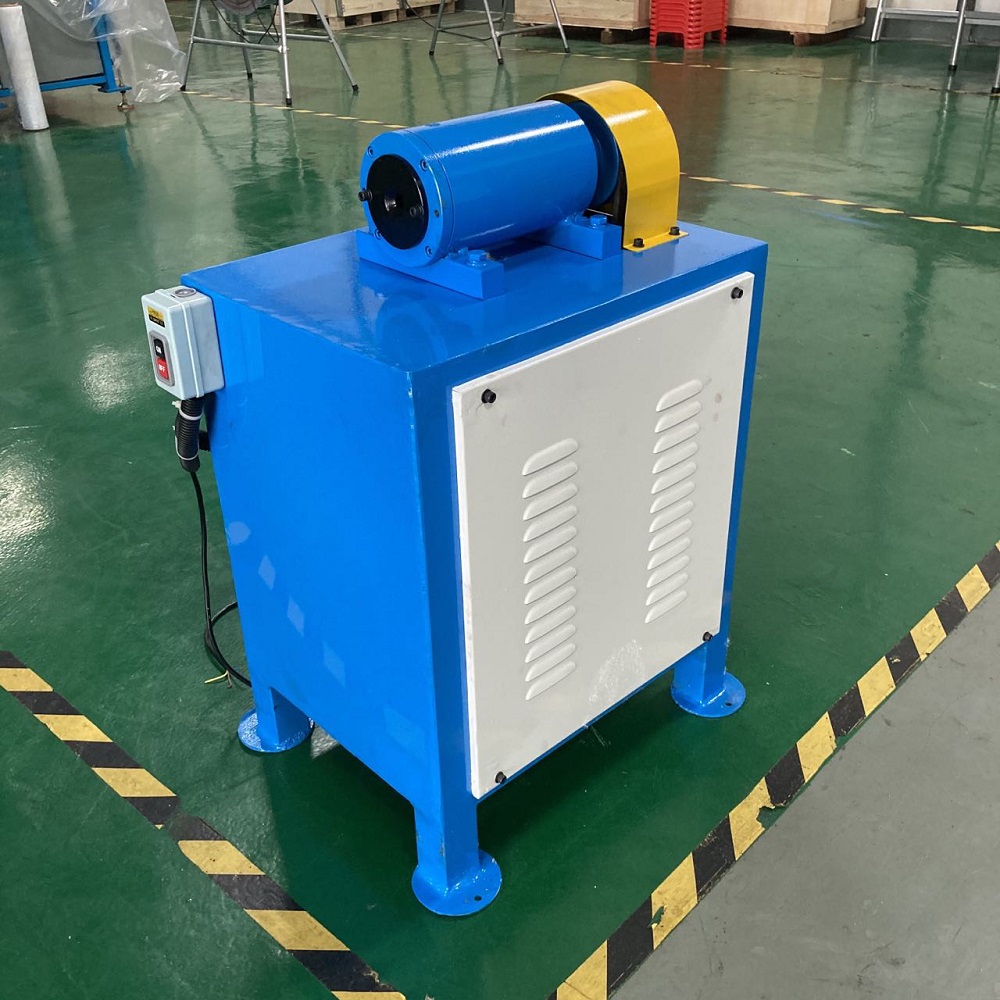

small manual metal pipe tube tapering machine img2
small manual metal pipe tube tapering machine img4
small manual metal pipe tube tapering machine img3
small manual metal pipe tube tapering machine img1
small manual metal pipe tube tapering machine img2

Model Number: AEK-80 Type

$2300.00$2200.00
(Reference Price)

The ALEKVS small-diameter tapered tube machine can process metal tubes with a diameter of less than 50mm into tapered shapes and perform drawing, tapering, reducing, and flat-end forming.

Versatility Across Multiple Applications

One machine handles multiple tasks, meeting a wide range of processing needs.

  • Nozzle Tapered Tube
  • Guide Tapered Sleeve
  • Tapered Straw Tube
  • Tapered Drilling Tube
  • Medical Tapered Needle Tube
Send Inquiry Now

Featured videos

High Precision Pipe Tube Tapering Machine # Video

High Precision Pipe Tube Tapering Machine #

Medical Small Diameter Metal Tube Tapering Machine Video

Medical Small Diameter Metal Tube Tapering Machine

Small tube tapering machines are designed to form secure, leak-proof connections for pipes handling liquids and gases. Their precision ensures tight seals and durable joints without additional preparation, making them ideal for use with stainless steel, iron, and aluminum materials.

Threaded fittings are preferred for smaller-diameter pipes. Their tapered structure enables the pipe and fitting to interlock seamlessly, creating a robust and reliable connection.

bushings or sleeves
nozzles
metal nozzles

Small Manual Metal Pipe Tube Tapering Machine Production Samples

Precise control ensures accuracy, even at high-speed operations.

Compresses and shapes tube components to the desired dimensions with a smooth, bright surface, free of burrs or scratches.

small rotary hammer type pipe shrinking machine
small conical tube forming and grouting pipe taper forming

Machine photos

small steel pipe tube tapering machine
small manual metal pipe tube tapering machine
manual metal pipe tube tapering machine
manual small tube tapering machine
small tube tapering machine
Name/Model AEK-80 Type AEK-100 Type AEK-200 Type AEK-300 Type AEK-450 Type AEK-Low Noise 300
Max Capacity (Diameter × Thickness) φ32×2.0 φ48×2.5 φ38×2.0 φ50×2.0 φ60×2.0 φ50×3.0
Max Length 80 mm 100 mm 195 mm 290 mm 450 mm 300 mm
Forming Time 5-7 s/time 5-7 s/time 7-10 s/time 7-15 s/time 15-30 s/time 7-15 s/time
Motor Power 1.5 KW 3.0 KW 3.0 KW 4.0 KW 5.5 KW 4.0 KW
Oil Pump Power 40 W 40 W 40 W 40 W 90 W 90 W
Spindle Speed 288 r/min 288 r/min 288 r/min 288 r/min 195 r/min 195 r/min
Overall Dimensions (L×W×H) 500×500×1000 mm 505×505×1150 mm 600×600×1150 mm 700×500×1200 mm 920×700×1800 mm 800×800×1300 mm
Weight 270 kg 400 kg 450 kg 694 kg 1278 kg 900 kg
