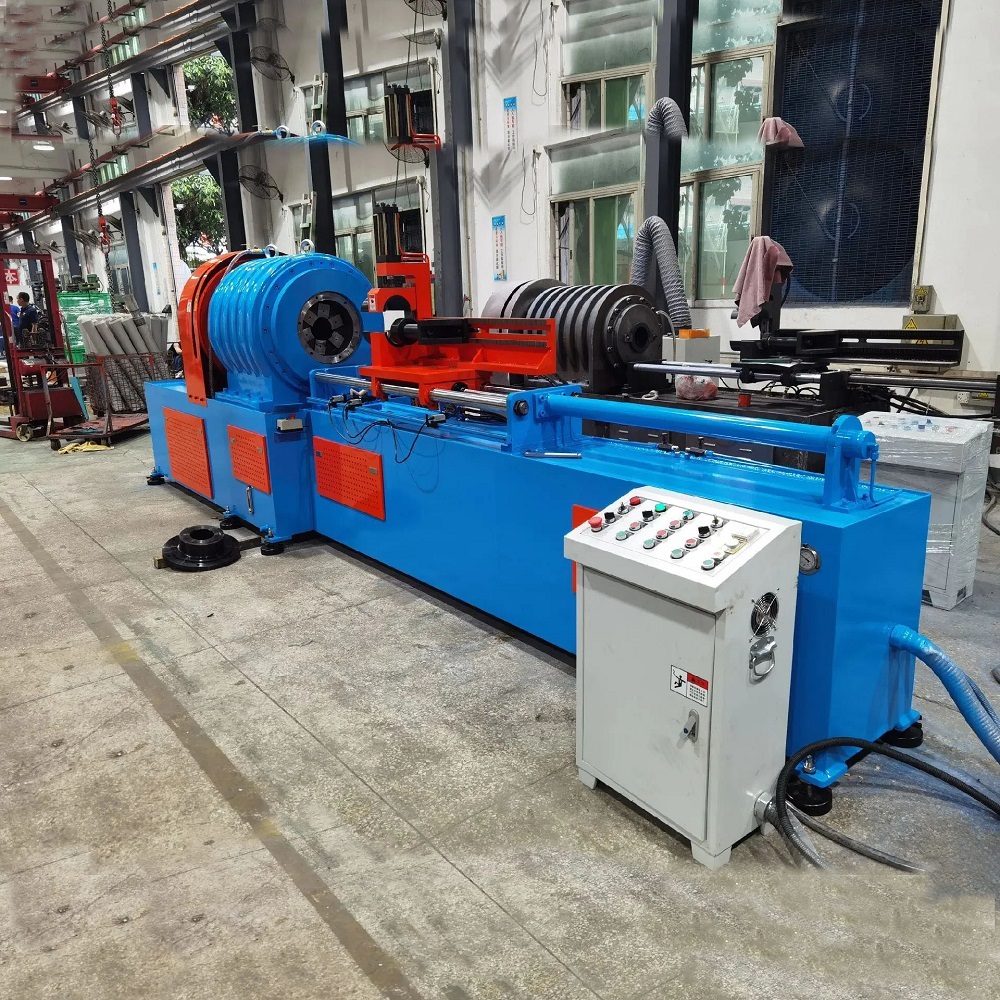

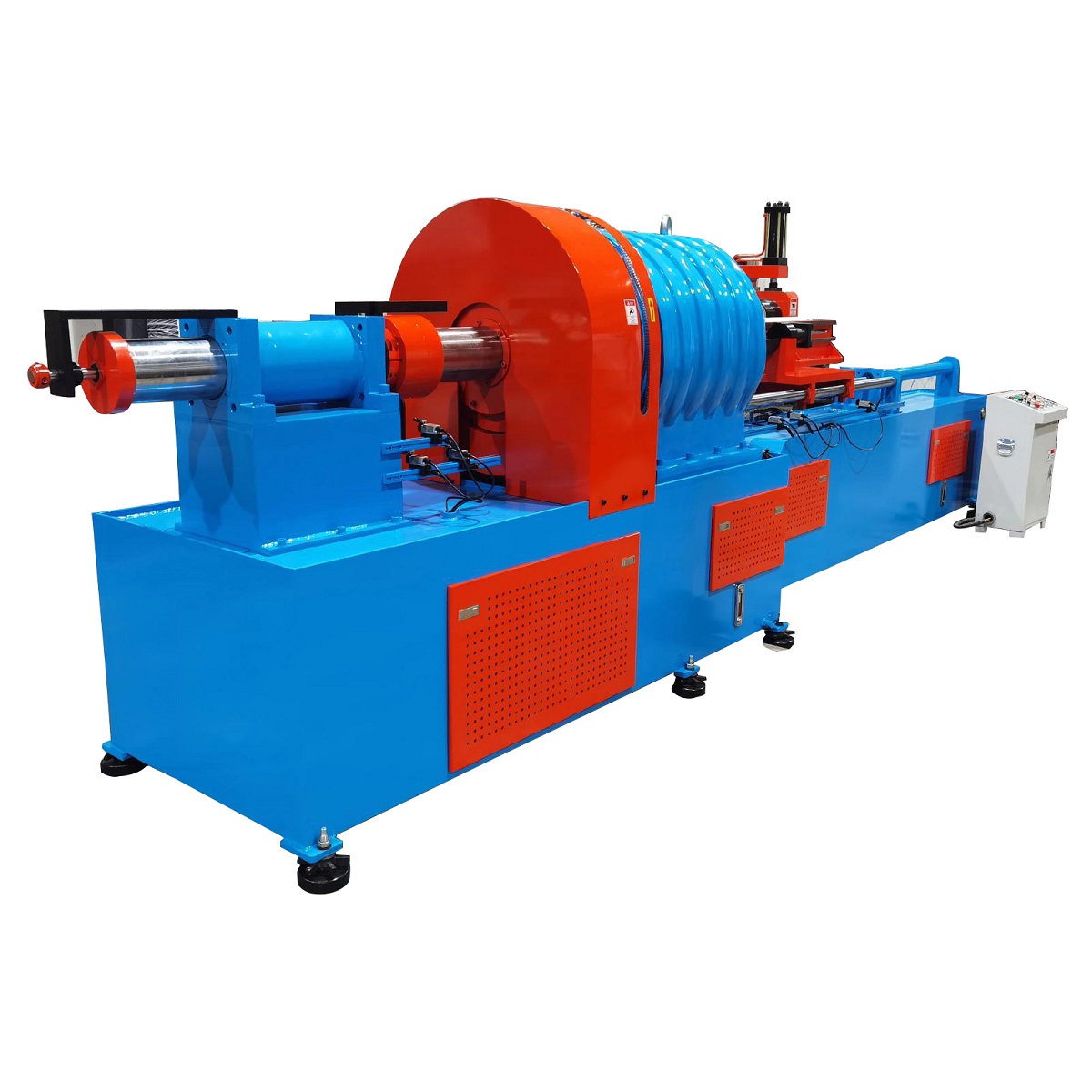

Rotary Swaging Tube Embossing Machine

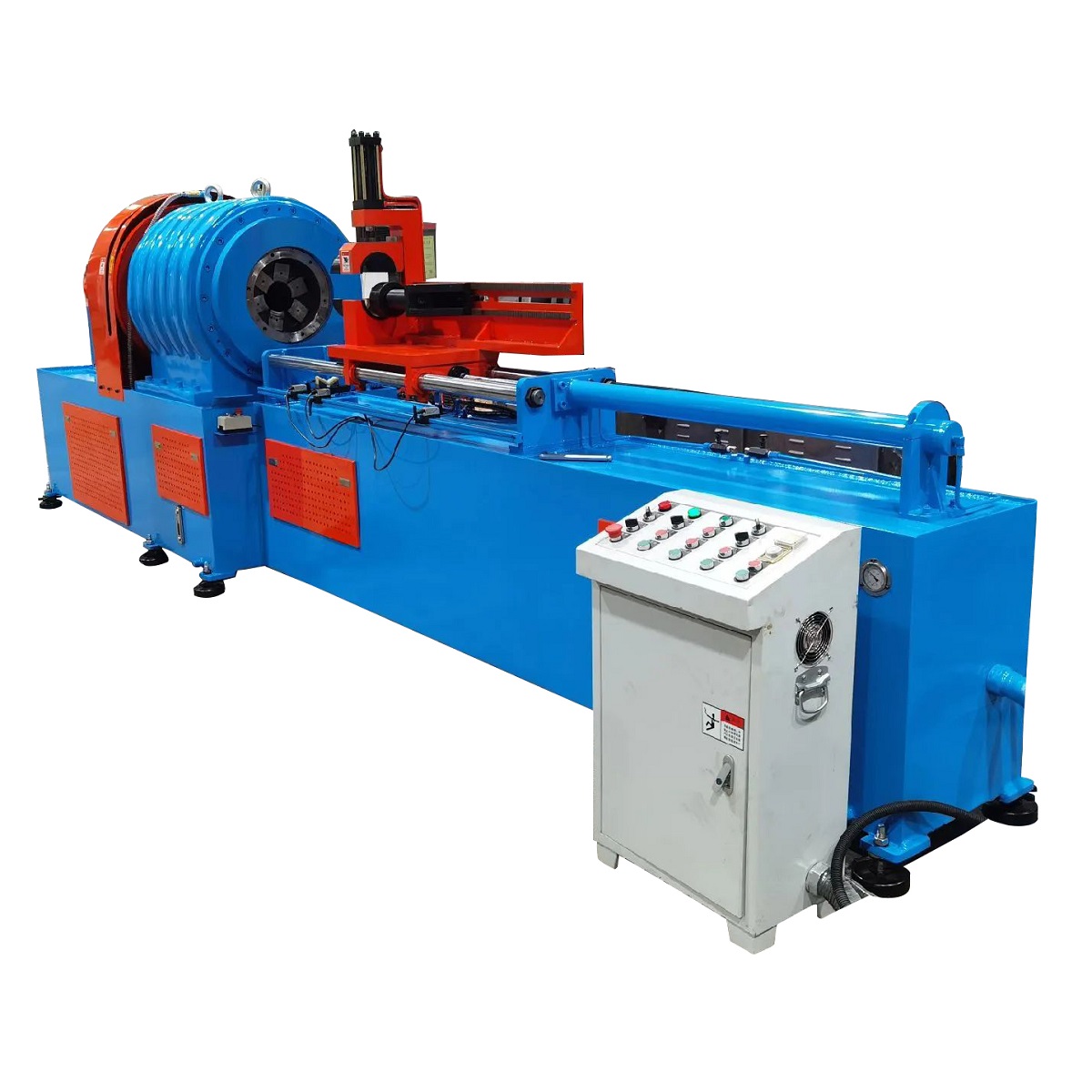

decorative rotary swaging and tube embossing machine img4
decorative rotary swaging and tube embossing machine img3
decorative rotary swaging and tube embossing machine img1

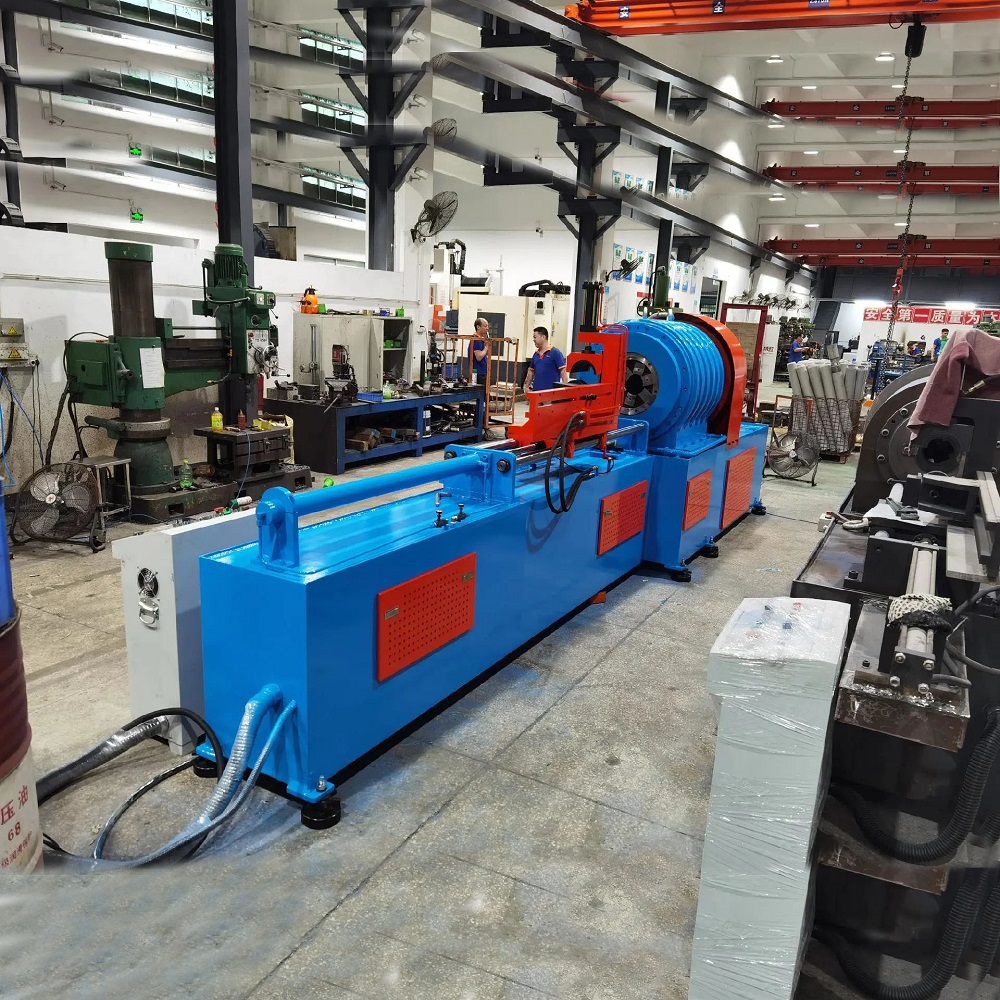

decorative rotary swaging and tube embossing machine img2
decorative rotary swaging and tube embossing machine img4
decorative rotary swaging and tube embossing machine img3
decorative rotary swaging and tube embossing machine img1
decorative rotary swaging and tube embossing machine img2

Model Number: AEK-PEM

$1300.00$1200.00
(Reference Price)

ALEKVS Rotary Sweeping Pipe Embossing Machine Supports tube diameters from φ12 to φ114mm, with expansion available for different models. It is suitable for processing various sizes of decorative tubes.

Capable of processing metal tubes with thicknesses ranging from 0.5mm to 2.5mm, adaptable to various materials such as stainless steel, carbon steel, aluminum alloys, etc.

  • Maximum forming length of up to 540mm, meeting the processing requirements for longer pipe sections.
  • Equipped with a high-performance main motor, with power ranging from 4KW to 11KW depending on the model.
  • Optional Automatic Loading and Unloading System
Send Inquiry Now

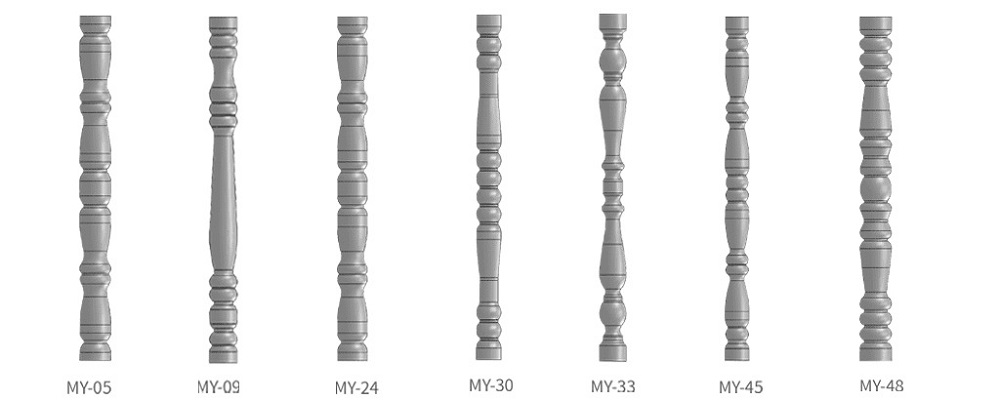

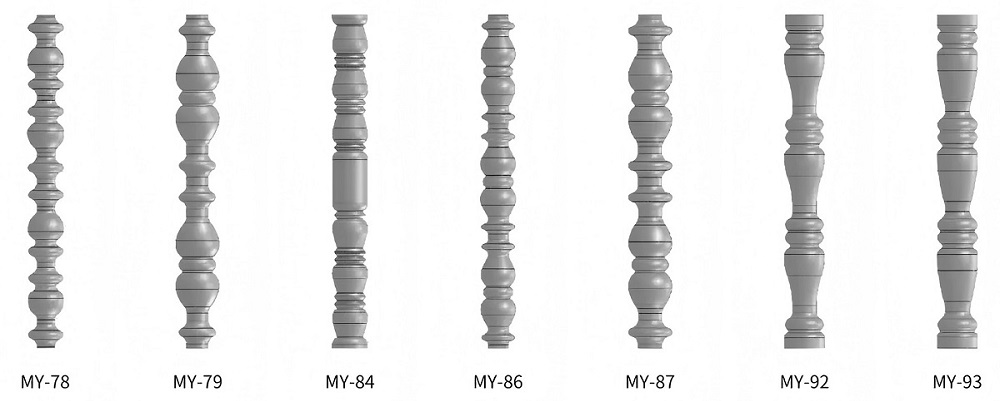

Pipe Embossing Machine – Available Finished Product Pattern

available shape metal pipe manual embossing machine
available shape metal pipe manual embossing machine 2

Tube Embossing Product Application

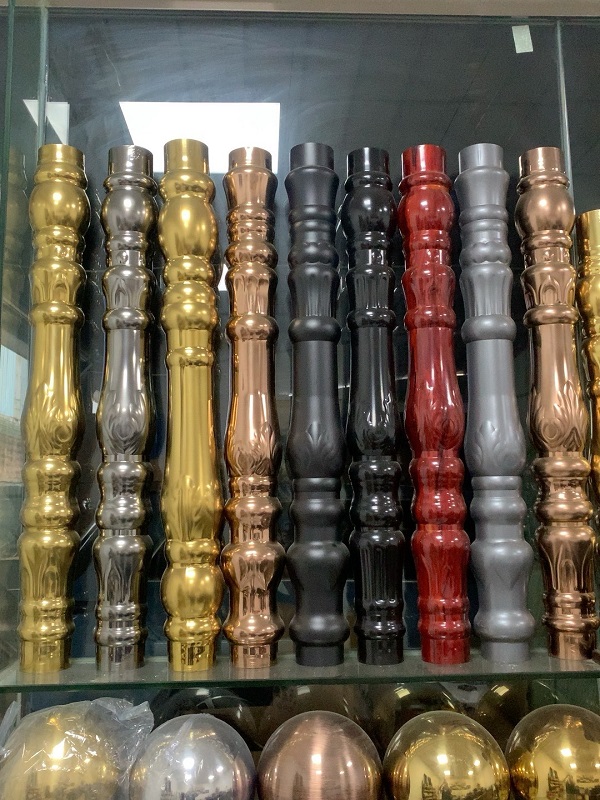

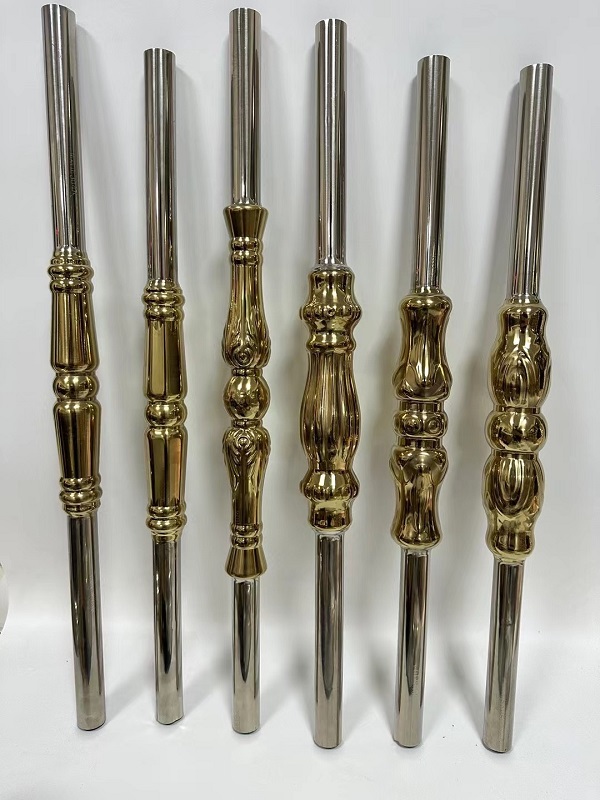

stainless steel and aluminium embossing tube

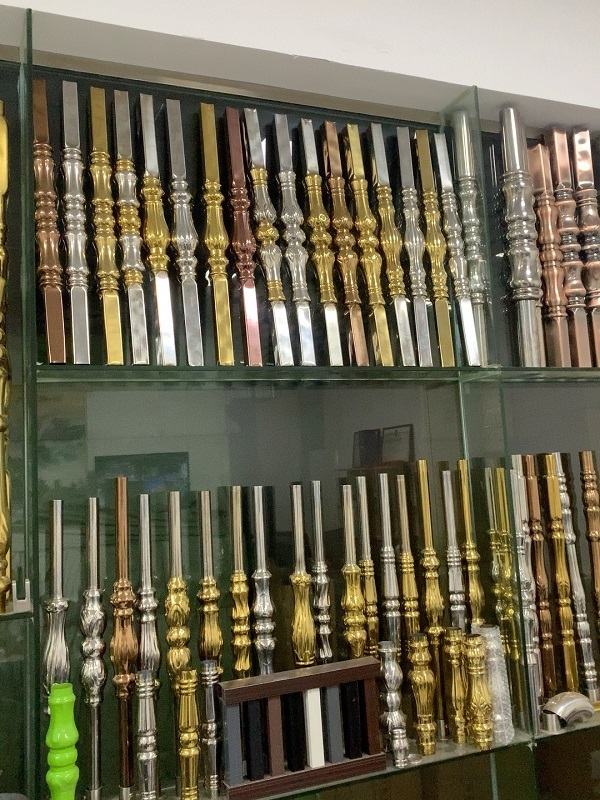

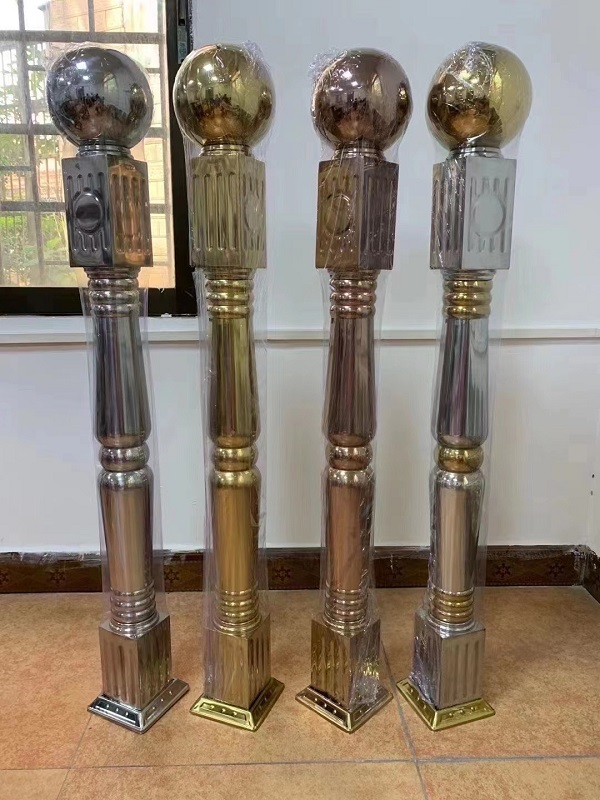

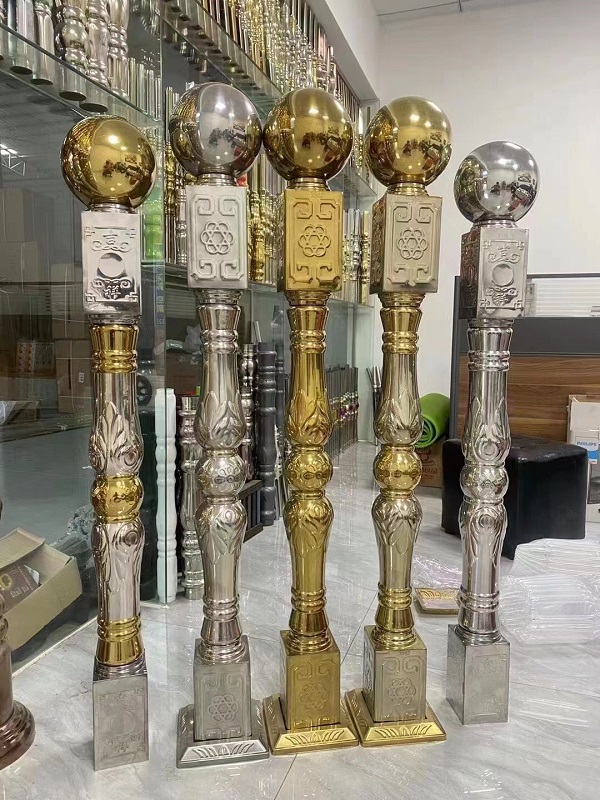

ss steel pillar steel furniture 4
ss steel pillar steel furniture 3
ss steel pillar steel furniture 2
ss steel pillar steel furniture

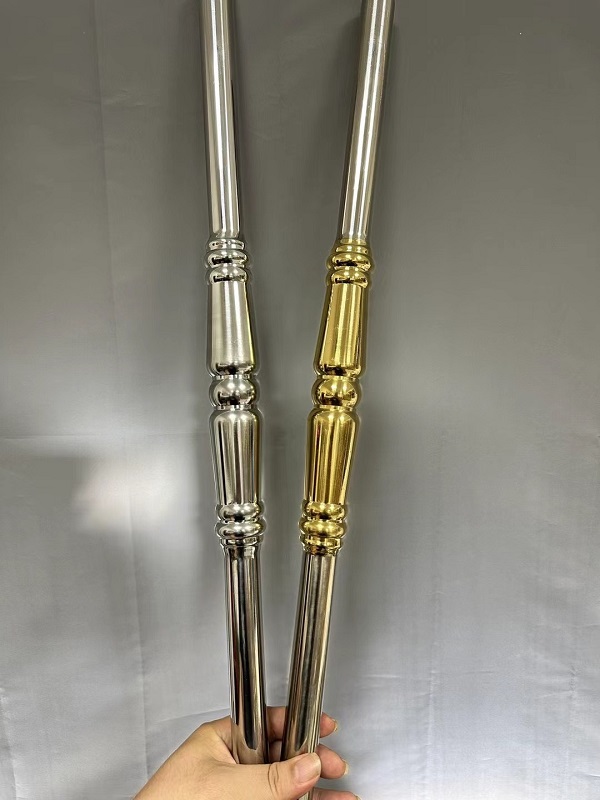

metal tube embossing
rotary swaging embossing machine for stainless steel pipes
pipe embossing and swaging machine

Stainless Steel Tube Rotary Embossing and Swaging Machine Working Principle

Rotary Swaging:

  • High-speed mold rotation applies multi-point pressure to the tube, causing plastic deformation of the material.
  • During the processing, the mold continuously opens and closes, gradually compressing the surface of the tube to achieve a uniform decorative effect (such as embossed patterns, textures, etc.).

Embossing:

  • The surface of the mold is engraved with a specific pattern, which is transferred to the surface of the tube under high pressure.
  • Different patterned molds can be replaced as needed to achieve diverse decorative effects.

Customize your machine

tube and pipe embossing swaging machine
high speed decorative pipe embossing machine
metal steel tube pipe embossing machine oem
decorative rotary swaging and pipe embossing machine oem
Machine Model AEK-PEM-12 AEK-PEM-16 AEK-PEM-19 AEK-PEM-25 AEK-PEM-32
Mold Size(W*L*H) 50*300 50*360 76*300 89*540 114*540
Machine size(MM) 1800*1200*1250 1850*1250*1250 2000*1300*1300 2200*1300*1300 2600*1650*1400
Mold Size(MM 50*300*65 50*360*65 60*300*70 70*540*80 85*540*90
Processing range (MM) φ12- φ51 φ16- φ51 φ19- φ76 φ25- φ89 φ32- φ114
Workpiece thickness (MM) 0.68-1.5 0.68-1.5 0.5-1.2 1.0-25 1.0-2.5
Forming length (MM) 290 350 290 540 540
Molding time (S/second) 3-15 3-15 8-20 8-20 10-30
Amount of mold opening and closing(Max) 20 20 20 30 30
Main motor (KW) 4 4 5.5 11 45976
Packing size(MM) 1900*1260*1500 1950*1350*1550 2300*1500*1650 2260*1360*1550 2700*1750*1500
