Model Number: AEK-HX-114

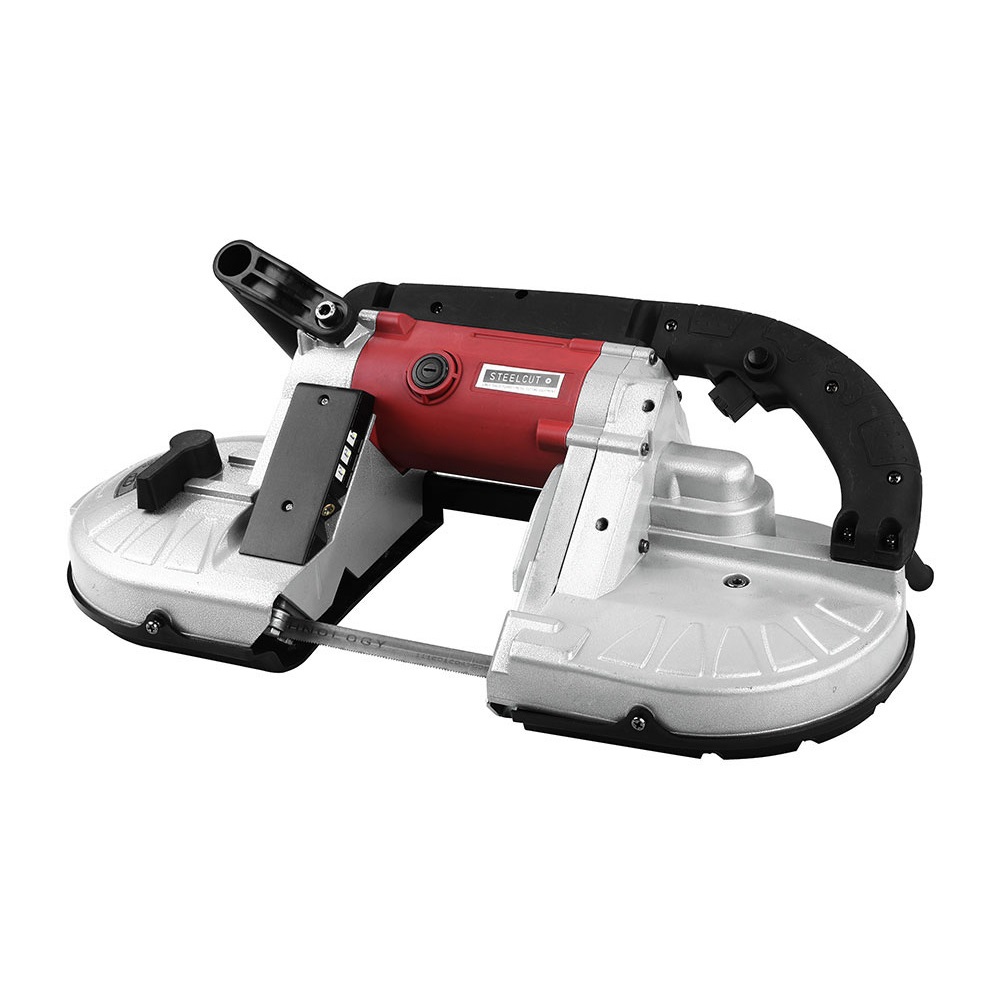

This 220V 710W portable 45 degree angle cutting machine has a maximum round tube diameter of 114mm (4.49 inches)
Suitable for cutting tubes, round tubes, and steel.
Shipping List:Machine x1,,Locating rod x1,Clamp baffle X2,Screw/gasket X4
Aluminum casting base is formed onceSupport machine continuous cutting
High-speed cutting without shakingCast aluminum baseThe cast aluminum base is stable and weighs 6.9KG

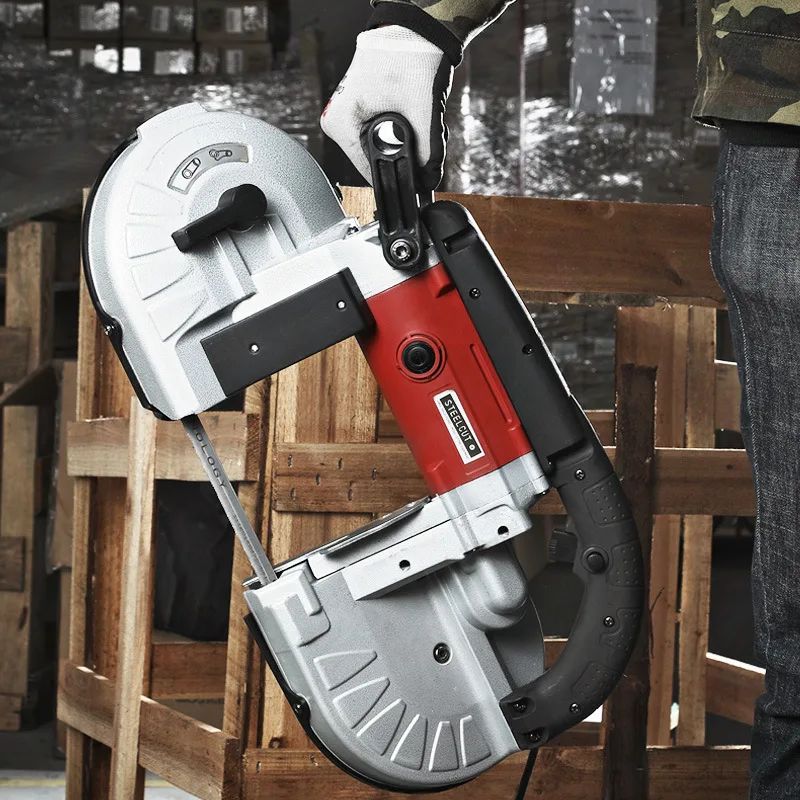

Quick bracket removal and – held step-less speed regulation”Easy lifting and cutting with one hand is more convenient
| Model | AEK-HX-114 |
| Power | 710 W |
| Voltage | 220 V |
| Frequency | 50 Hz |
| Saw Blade Specs | 13×0.65×1140 mm |
| Line Speed | 1~1.7 m/s |
| 0° Cutting Capacity | Round tube: φ114 mm |
| Solid round steel: 50mm | |
| Square tube: 114×120 mm | |
| 45° Cutting Capacity | φ45 mm |
| φ45 mm | |
| 35×35 mm | |
| 60° Cutting Capacity | |
| Net/Gross Weight | 13.5/17 kg |
| Machine Dimensions | 58x26x35 cm |
| Package Dimensions | 72.5x36x43 cm |
