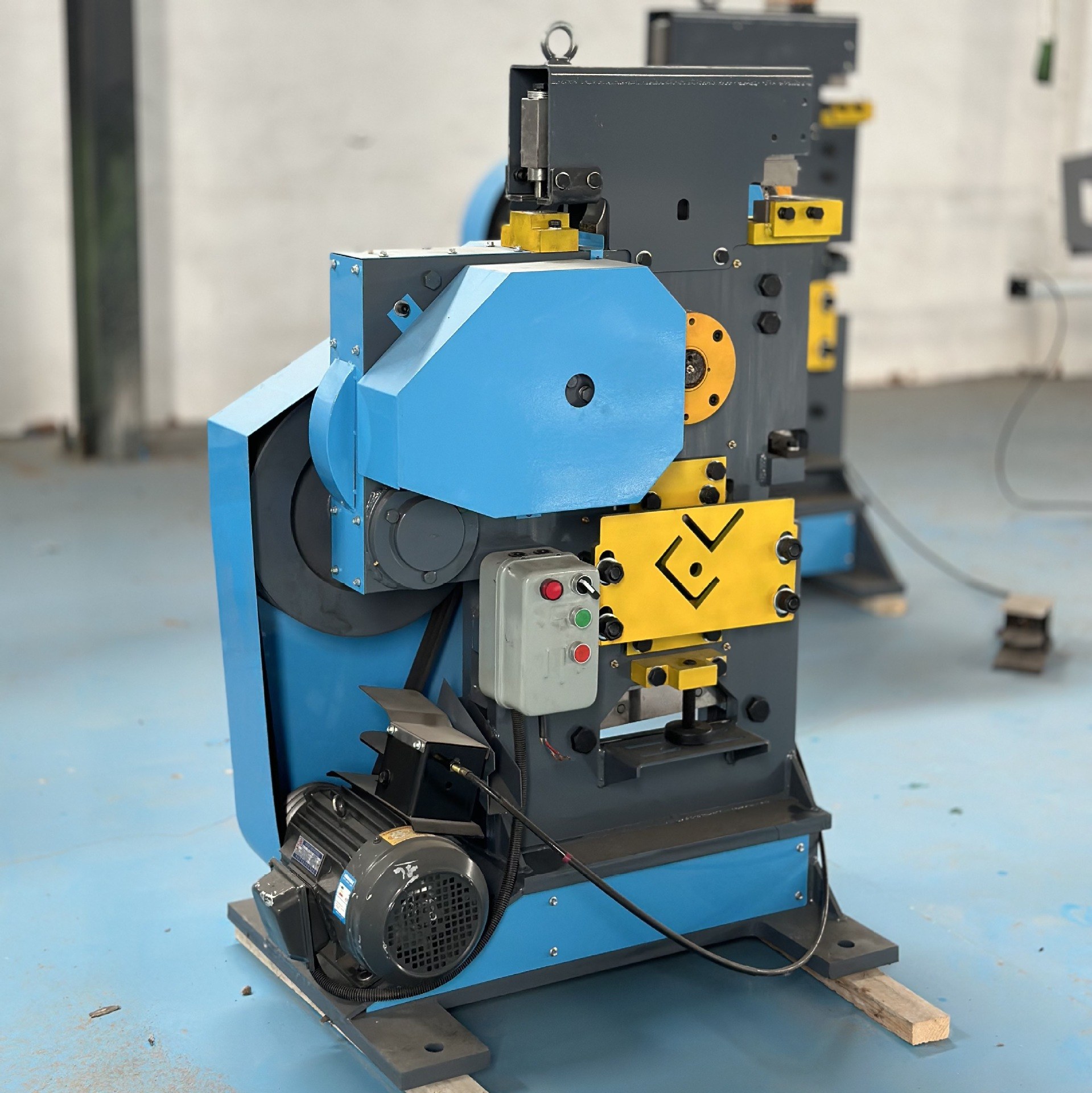

Multi-functional Combined Punching and Shearing Ironworker Machine

multi function punch and shear ironworker machine img4
multi function punch and shear ironworker machine img3
multi function punch and shear ironworker machine img1
multi function punch and shear ironworker machine img2
multi function punch and shear ironworker machine img4
multi function punch and shear ironworker machine img3
multi function punch and shear ironworker machine img1
multi function punch and shear ironworker machine img2

Model Number: AEK-QA Series

$3400.00$3200.00
(Reference Price)

The Multi-functional Combined Punching and Shearing Ironworker Machine is an all-in-one equipment designed for cutting, punching, and bending a variety of materials, including round steel, angle steel, channel steel, steel plates, and square steel.

It offers high cutting precision and is ideal for sheet metal and shaped metal applications, including punching round holes, long holes, and die shearing.

  • Multi-functional: Capable of cutting, punching, and bending different steel shapes and materials.
  • High Precision: Delivers precise cuts and punches for a variety of angles and materials.
  • Wide Application: Used in sheet metal fabrication, shaped metal punching, hole shearing, and more.
Send Inquiry Now

Multi-functional Combined Punching and Shearing Ironworker Machine – Detail photos

multi function hydraulic ironworker machine
multi function ironworker punching and shearing machine
multi function ironworker machine for punching and shearing
multi function ironworker machine for angle and channel steel
integrated ironworker machine for sheet metal processing
multi function ironworker machine with notching and bending

Key Components and Features

angle iron shear angle knife 5
customizable punching dies punching shears 6
flat iron cutting 6
flat punching 8
flat punching 9

Punching:

  • Angle Steel Punching
  • Channel Steel Punching
  • Flat Punching
  • H Steel Punching
  • Heterosexual Punching (Customization)
  • Plane Oval Punching
  • Plane Punching (General)
  • Channel Steel Facet Punching

Cutting:

  • Angle Steel Cutting
  • Channel Steel Cutting
  • Flat Bar Cutting
  • H Steel Cutting
  • I-Beam Cutting
  • Heterosexual Custom Cutting
  • Angle Steel Shear (Square, Angles)
  • Angle Steel Oblique Shear
  • V-Cut Angle Steel
  • Flat Trimming

Shearing:

  • Angle Steel Shearing
  • Shear Steel
  • Plane Chamfering
flat iron cutting 5
electric control box
flat punching 2
flat punching 3

Ironworker Machine- Customized

multi functional combined punching and shearing ironworker machine 2
multi function ironworker machine for sheet metal and angle steel
manual ironworker machine for angle steel cutting
ironworker machine with channel steel punching and shearing
mechanical ironworker for punching and shearing

Versatile Cutting, Punching, and Bending Die

customizable punching dies punching shears
customizable punching dies punching shears 2
flat iron cutting 2
mould
mould 2
mould 3

Application

flat steel
angle steel mold
angle steel
iron plate
Model Max.shear force Stroke Rate Tool stroke Power Weight Dimension Angle steel Channel stee Round hole Long hole Cutting board Round bar Steel plate Right angle Vangle
AEK-QA32-8B 360KN 30 times/min 30mm 2.2KW 2P 560KG 1010*650*1100mm 75*75*8 GB 100# φ22*8 40*17*8 120*8 φ30 20*20 75*75 50*50
AEK-QA34-10B 500KN 30 times/min 30mm 3KW 700KG 1010*650*1350mm 100×100×10 GB 120# φ25*10 40*18*10 10*200 φ38 50*50 50*50 50*50
AEK-QA35-12A 900KN 30 times/min 36mm 4KW 4P 1100KG 1100*700*1450mm 120×120×12 GB 160# φ31*12 40*21*12 14*330 φ40 35*35 50*50 50*50
AEK-QA35-12B 1100KN 30 times/min 36mm 4KW 4P 1100KG 1100*700*1450mm 120×120×12 GB 160# φ31*12 40*21*12 14*330 φ40 35*35 75*75 50*50
AEK-QA35-14B 1400KN 30 times/min 36mm 5.5KW 1400KG 1150*730*1500mm 160×160×14 GB 200# φ35*14 70*20*12 16*350 φ45 35*35 75*75 70*70
AEK-QA35-16B 1450KN 30 times/min 36mm 7.5KW 1500KG 1200*750*1550mm 175×175×16 GB 200# φ35*16 70*25*14 16*350 φ45 35*35 75*75 70*70
