Mini Portable CNC Plasma Pipe Cutting Machine (φ25-219mm)

Model Number: AEK PP-219

$2100.00$1900.00
(Reference Price)

ALEKVS Mini Portable CNC Plasma Pipe Cutting Machine
Effective Cutting Pipe Diameter: 25-63mm

Cuts complex shapes such as miter, groove, saddle, hillside, and more.

Ideal for cutting intersection lines where branch pipes connect to the main pipe.

Featured videos

Mini Portable CNC Plasma Metal Pipe Cutting Machine Video

Mini Portable CNC Plasma Metal Pipe Cutting Machine

ALEKVS  Portable CNC Mini Plasma Cutting Machine  Video

ALEKVS Portable CNC Mini Plasma Cutting Machine

Portable CNC Mini Plasma Cutting Machine for Notching, Hole Cutting, and Cutting Off

  • Pipe Diameter Range: 25-63mm
  • Manual Feed: Pipe fed by hand for flexibility
  • Portable & Compact: Easily movable with a mini shape
  • Versatile Cutting: Ideal for cutting, notching, and hole making
iron stainless steel pipe arc cutting hole cutting cutting off3
iron stainless steel pipe arc cutting hole cutting cutting off1
iron stainless steel pipe arc cutting hole cutting cutting off

Mini Portable 25-63mm Throughout Round Pipe Plasma Cutting Machine

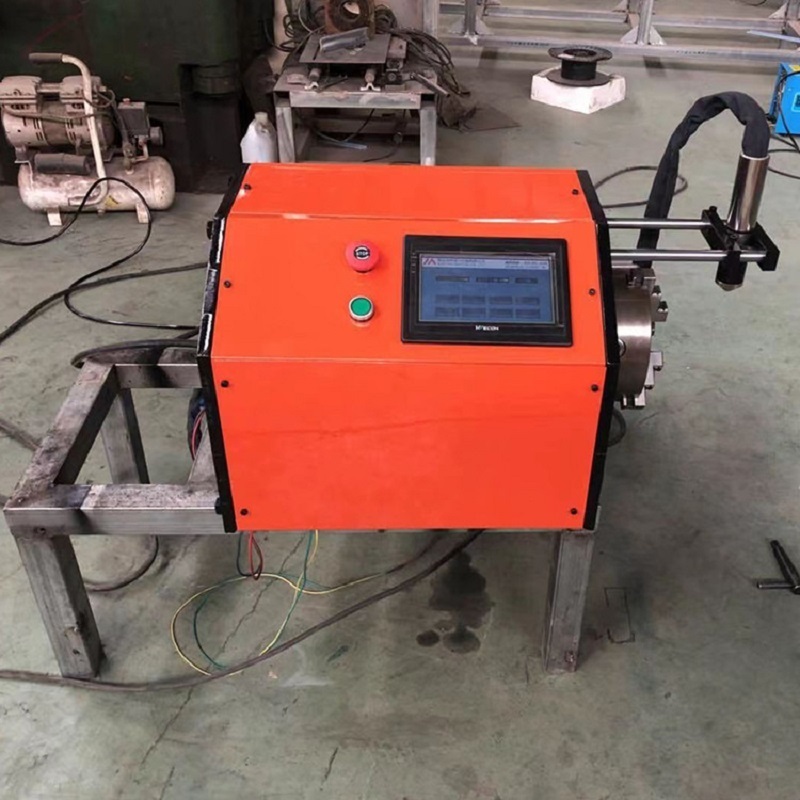

mini portable cnc plasma cutting machine photos2
mini portable cnc plasma cutting machine photos1
mini portable cnc plasma cutting machine photos
portable cnc plasma cutting machine
mini portable 25 63mm throughout round pipe plasma cutting machine

Portable CNC Flame Plasma Cutting Machine Key Features

  • High Efficiency:20 times faster than manual cutting
  • Multiple Functions: Supports arc cutting, hole cutting, and cutting off

Easy to Operate: Independent programming, no mold changes required, precise cutting for any arc shape

portable cnc mini plasma cutting machine details
Portable CNC Mini Plasma Cutting Machine Details
portable cnc mini plasma cutting machine chuck fixture
Portable CNC Mini Plasma Cutting Machine Chuck Fixture

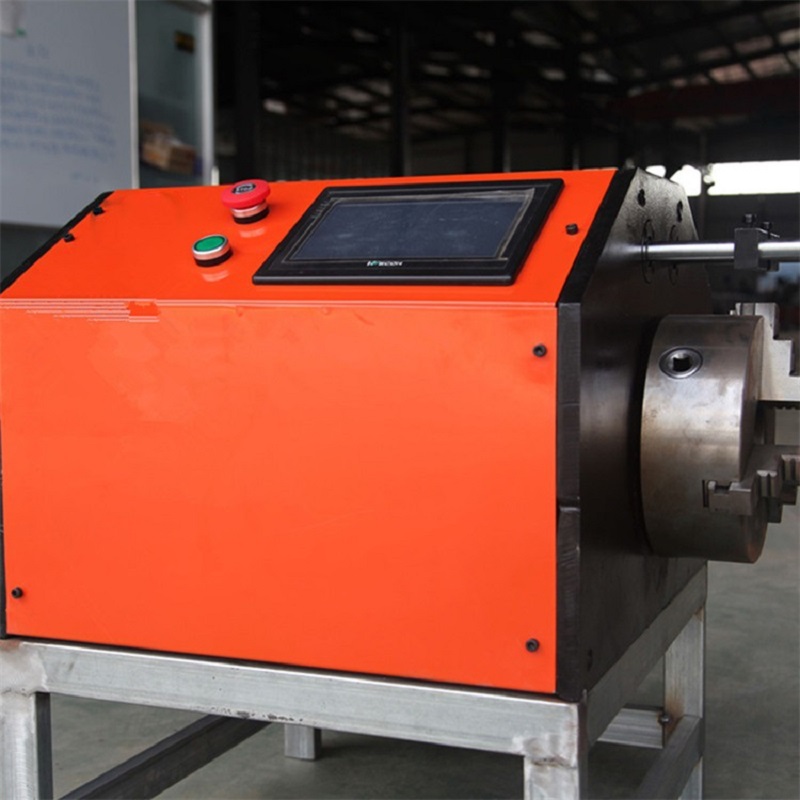

portable cnc mini plasma cutting machine touch screen cnc control
Portable CNC Mini Plasma Cutting Machine – Touch Screen CNC Control

Cutting Capacity:

  • Carbon Steel & Stainless Steel: Up to 20mm
  • Aluminum: Up to 10mm

(For other material options, please get in touch with us)

portable cnc plasma pipe cutter
portable cnc flame plasma cutting machine
metal pipe cutting arc cutting pipe cutting hole cutting

CNC Plasma Tube Cutting Machine Application

intersection line arc mouth
arc mouth
arc mouth 2
Model AEK PP-219
Function Notching, Hole Cutting, Cutting Off
Control Mode Automatic
Cutting Method Plasma
Cutting Stroke 200mm
Applicable Material Iron Pipe, Stainless Steel
Max Cutting Thickness 12mm (Depends on Plasma Power)
Applicable Pipe Size Round: 25-219mm
Max Through Pipe Size 63mm
Dimensions (L x W x H) 650 x 750 x 500mm
Weight 75kg
