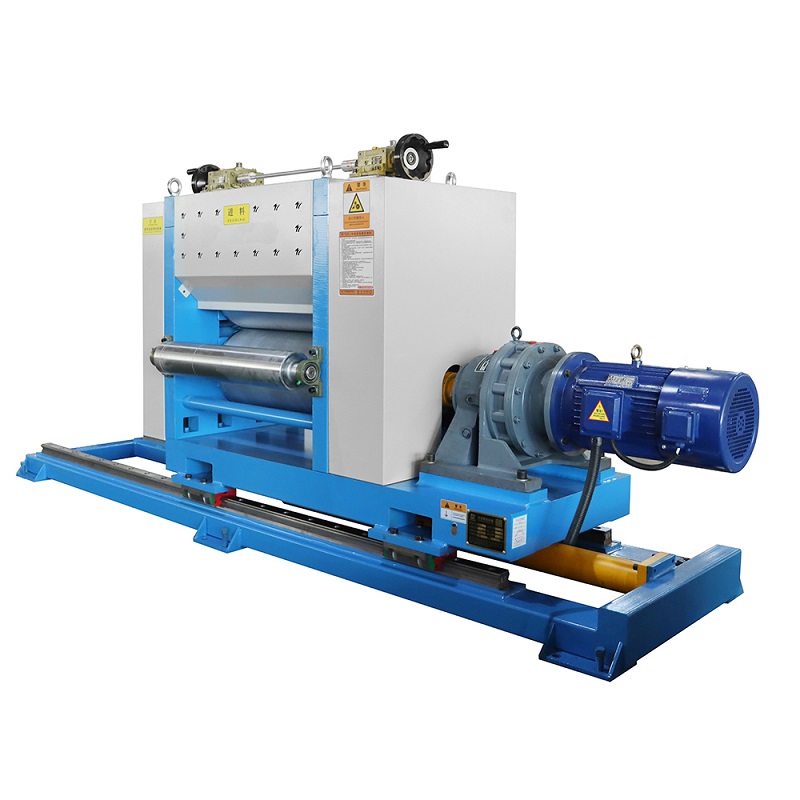

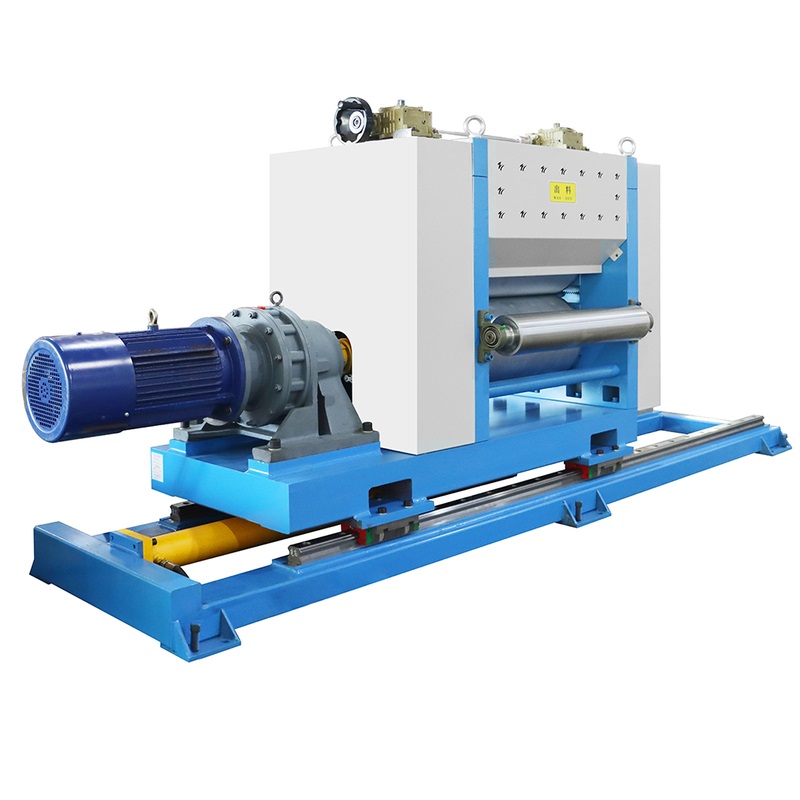

Sheet metal plate embossing machine banner

Macchina per goffratura di lamiere

Numero modello: AEK-REM-P55

$25000.00$22000.00
(Prezzo di riferimento)

This sheets Embossing Machine can emboss steel plates, copper plates or aluminum plates. It can emboss Diamond Pattern, Checker Plate, Stripes

Widely used in anti-slip plates, Elevator floor, construction materials, decorative panels, vehicle steps.

Invia richiesta ora

Video in evidenza

Metal wall panels Stainless steel, aluminum plate Embossing machine Video

Metal wall panels Stainless steel, aluminum plate Embossing machine

automatic stainless steel plate embossing machine Video

automatic stainless steel plate embossing machine

Willow Leaf Sheet Metal Embossing Machine Video

Willow Leaf Sheet Metal Embossing Machine

  • Will emboss stainless steel, iron plate, aluminum plate, copper plates
  • Emboss Gutter coil, Emboss flashing material, Emboss siding material
  • Flower roller material: 42crmo solid roller, quenching and tempering heat treatment HRC＞58
  • Aluminum alloy material: 5052
  • Thickness 0.14-0.2mm,
  • Material width ≤ 600mm.
  • Motor: 380V, 11.0Kw,50Hz, wire speed 0-10M/min
  • Loaded on your truck.
  • Roller specifications:Φ310*700mm
  • Embossing roller size 350-450mm; width 1000-1600mm
  • Weight of retractable reel 30-ton

Rollable pattern texture

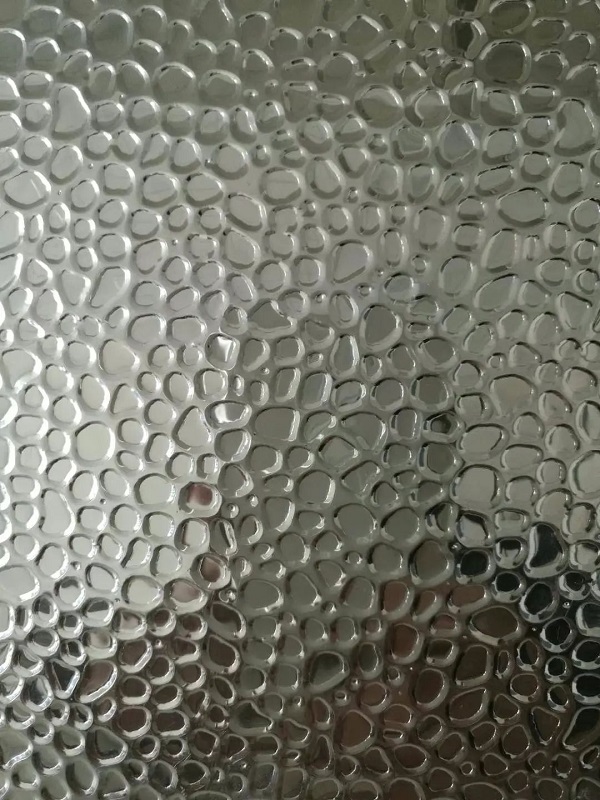

water droplet Aluminum embossing sheet

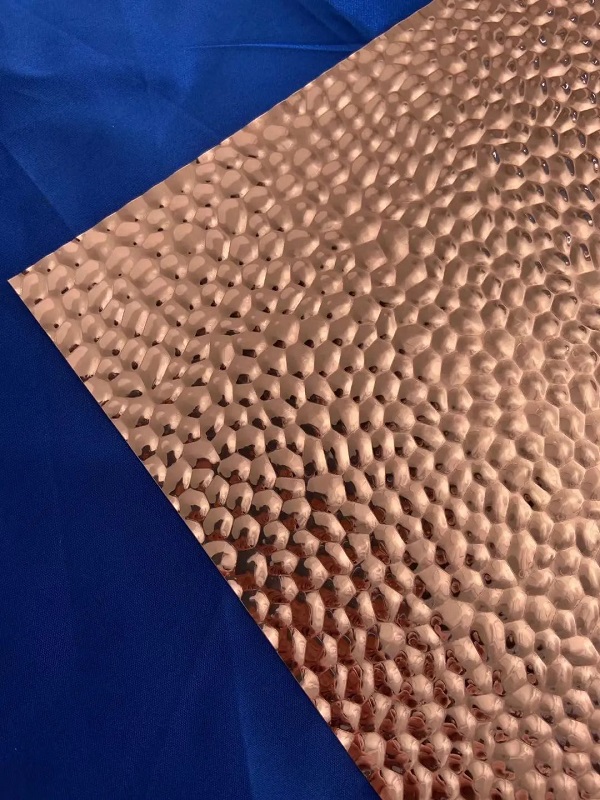

Pebble copper plates

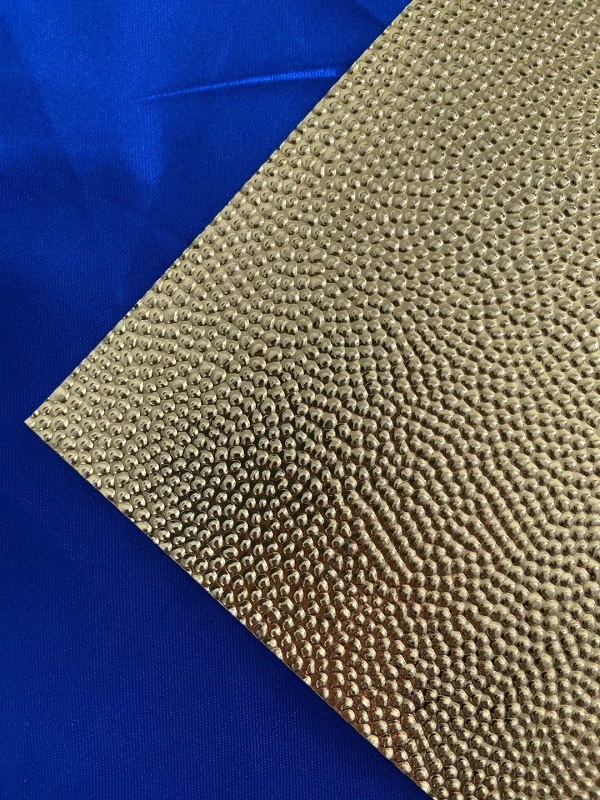

Bump texture copper plate

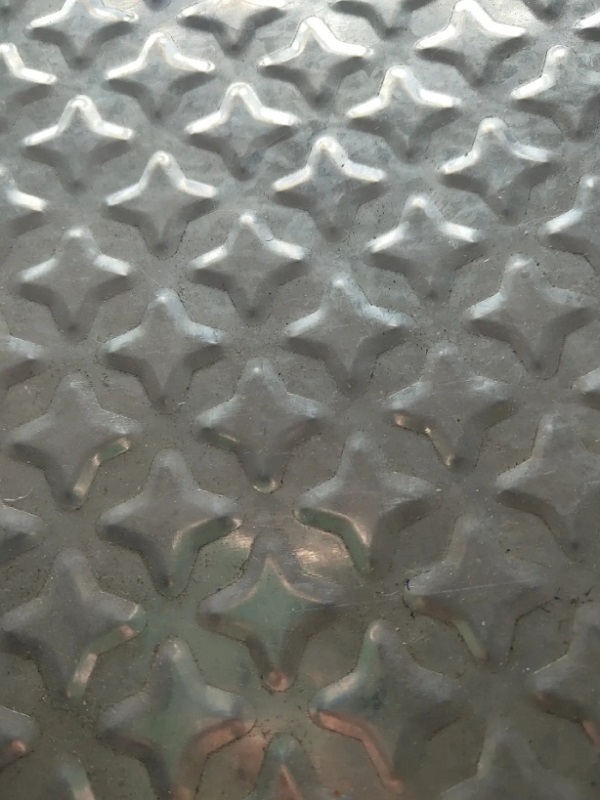

embossed star-shaped pattern

Different pattern rollers can be customized

Subway anti-slip stainless steel plate

It can be rolled into stainless steel plates for subway anti-skid plates, decorative metal plates for building decoration, such as aluminum plates, copper plates, and iron plates.

Modello AEK-REM-P55
Materiale Aluminum alloy: 5052, Stainless steel
Thickness of Aluminum Alloy 0.14-0.2 mm
Thickness of Pressed Material 3 millimetri
Width of Aluminum Alloy ≤ 600 mm
Width of Pressed Material 500-1500 mm
Product Pattern Made according to the sample shape
Pattern Direction Longitudinal and consistent with the direction of the aluminum strip
Flower Roller Size Φ310*700 mm
Flower Roller Material 42crmo solid roller, quenching and tempering heat treatment HRC＞58
Roller Specifications Φ460*1600 mm
Roller Pattern Secondo i requisiti del disegno
Embossing Form Upper and lower pressing (lower roller fixed)
Regolazione della pressione Turbo reducer pressurization
Screw Rod Diameter Φ50 mm
Adjustment Stroke 50 mm
Bearing Seat Integral machined part
Adjustment Value Display Scale displayed
Pattern Roller Pressing Center Height 730 mm
Archway Thickness 70 mm
Embossing Machine Moving Device Linear guide + oil cylinder form
Linear Guide Model HGW55HA (extended type), brand: Shangyin
Oil Cylinder Bore diameter Φ80 mm, stroke 1300 mm (without hydraulic station)
Transmission System Requirements adopting variable frequency speed regulation
Velocità della linea 20-42 meters/minute
Speed of Pressed Material 0-6 metri/minuto
Motore 380V, 7.5 kW, 50HZ (YVP132V-4)
Reducer Model XWY7-29
Modalità di trasmissione Precision gear
Invertitore Brand: Delta, independent electric control box system
Overall Size Specifications 2500 mm (embossing equipment) * 800 mm width
