CNC Auto-Feed 20mm Drill Press Machine (1.1kW) banner

Trapano a colonna CNC con alimentazione automatica da 20 mm (1,1 kW)

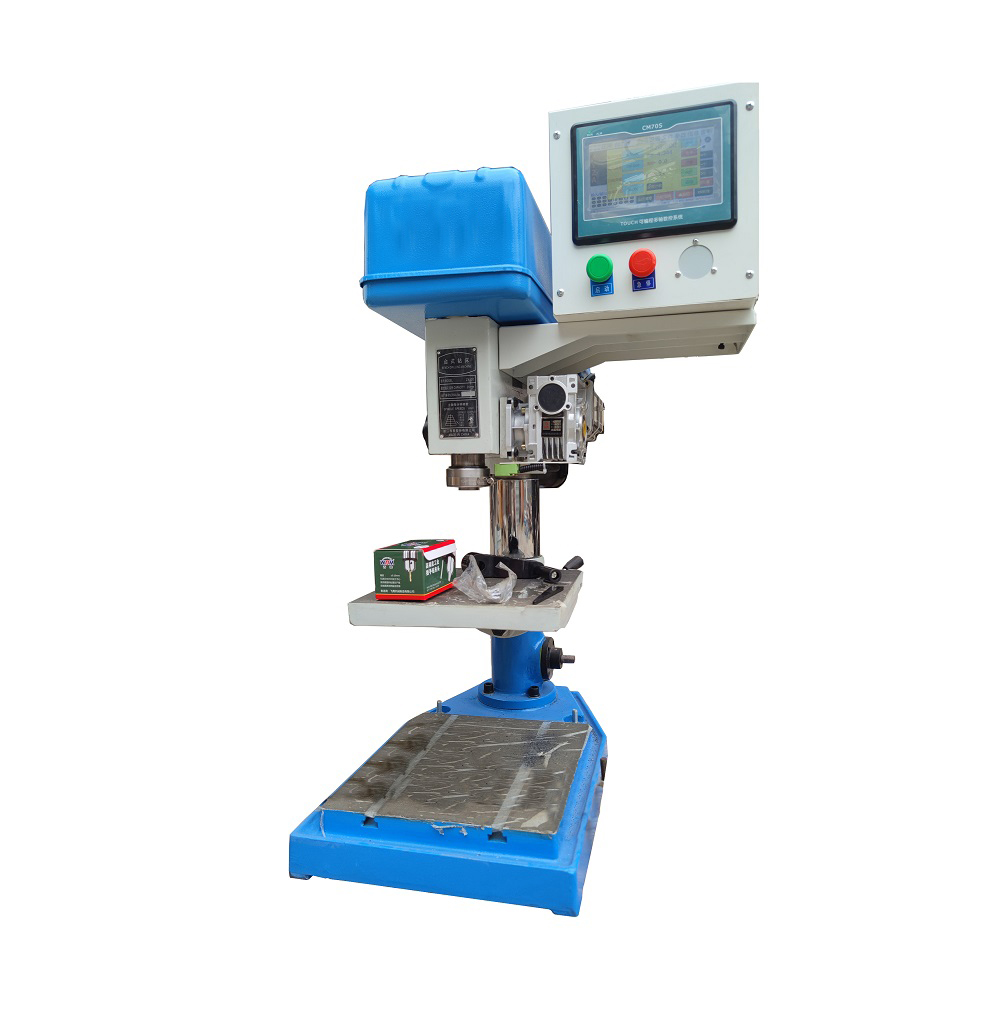

trapano a colonna per foratura metalli img1
trapano a colonna per foratura metalli img4

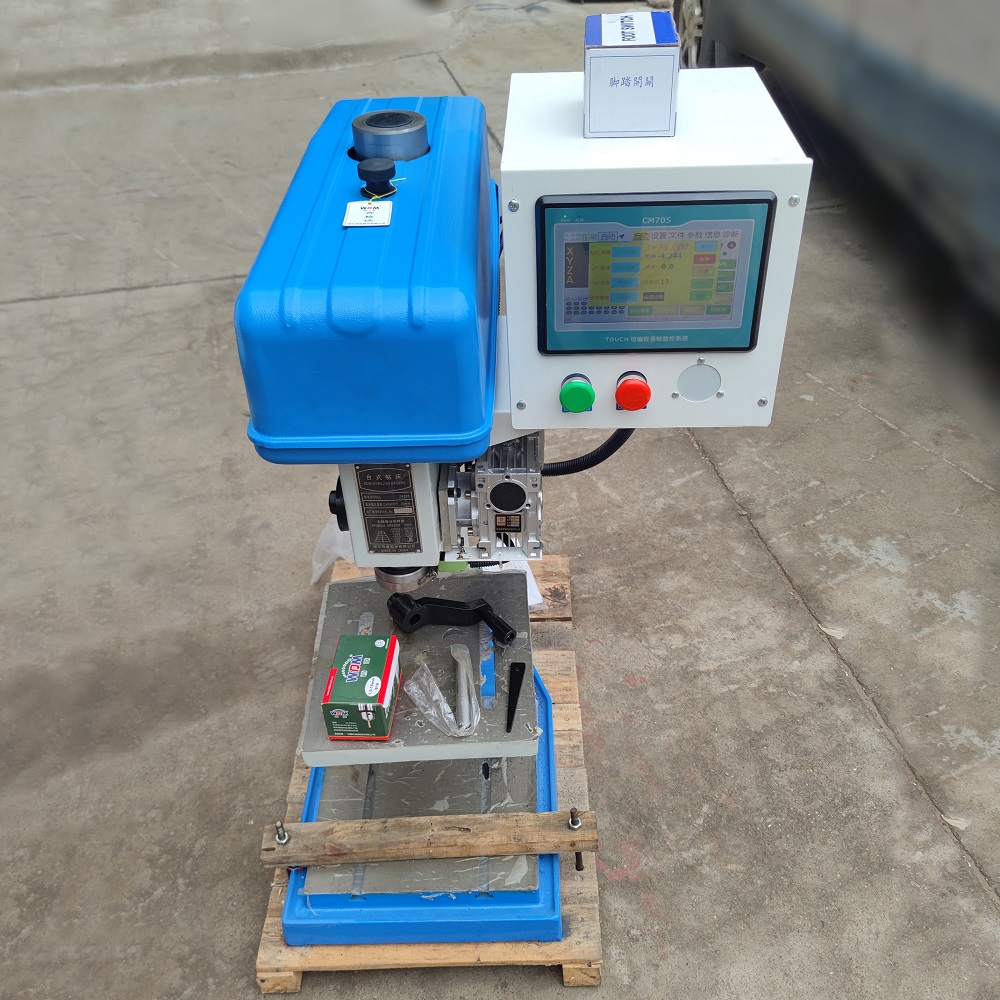

drill press machine for metal drilling img3

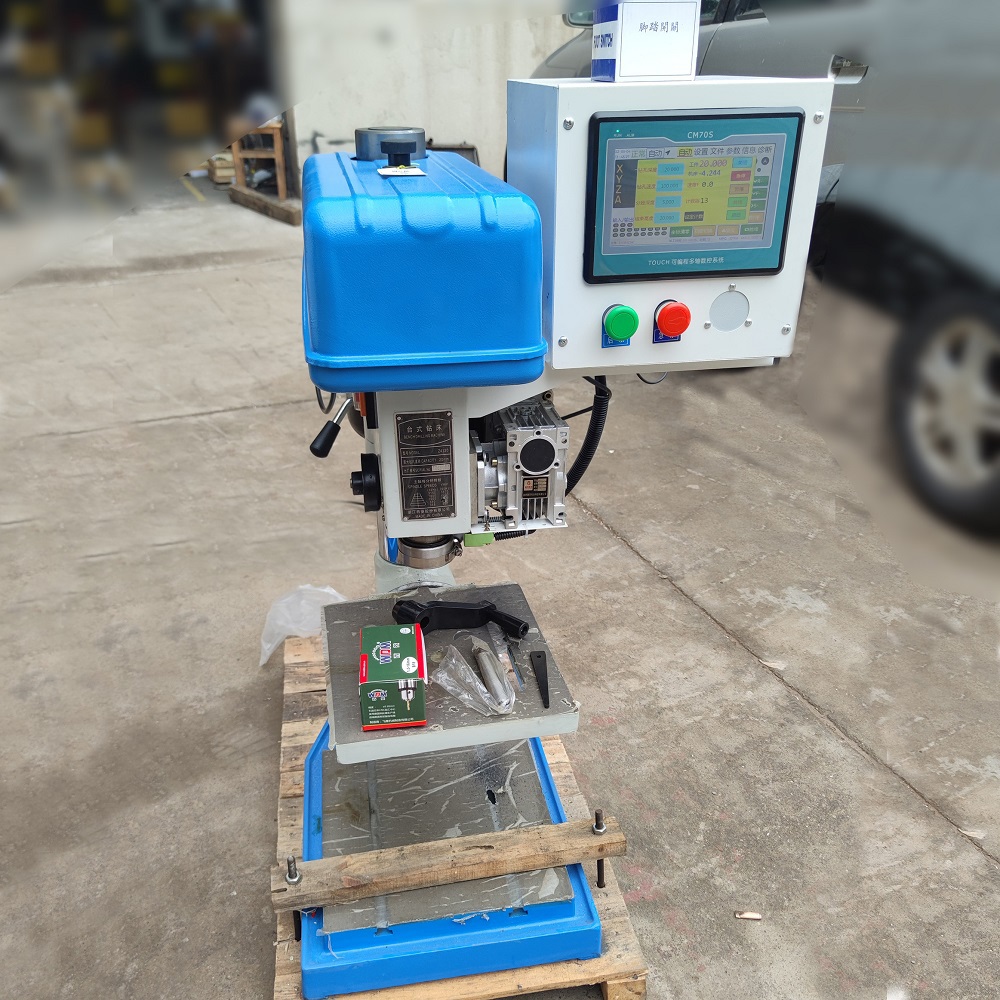

drill press machine for metal drilling img2
trapano a colonna per foratura metalli img1
trapano a colonna per foratura metalli img4
drill press machine for metal drilling img3
drill press machine for metal drilling img2

Numero modello: AEK-Z4120B1

$2200.00$1900.00
(Prezzo di riferimento)

Machine Equipped with an MT2 precision grinding spindle, a powerful 1100W motor, and an adjustable feed driven by a 750W servo motor, this machine ensures smooth, multifunctional performance to meet the drilling needs of steel and cast iron.

It can handle a maximum drilling diameter of 20mm in cast iron and 16mm in steel, making it ideal for automotive production, mechanical parts, or construction components.

The PLC color display allows for precise adjustments and easy operation.

Invia richiesta ora

Video in evidenza

CNC Auto Feed 20mm Drill Press Machine 1 1kW Video

CNC Auto Feed 20mm Drill Press Machine 1 1kW

Bench Drill Press ALEKVS Industrial bench drill Video

Bench Drill Press ALEKVS Industrial bench drill

CNC drill press machine details

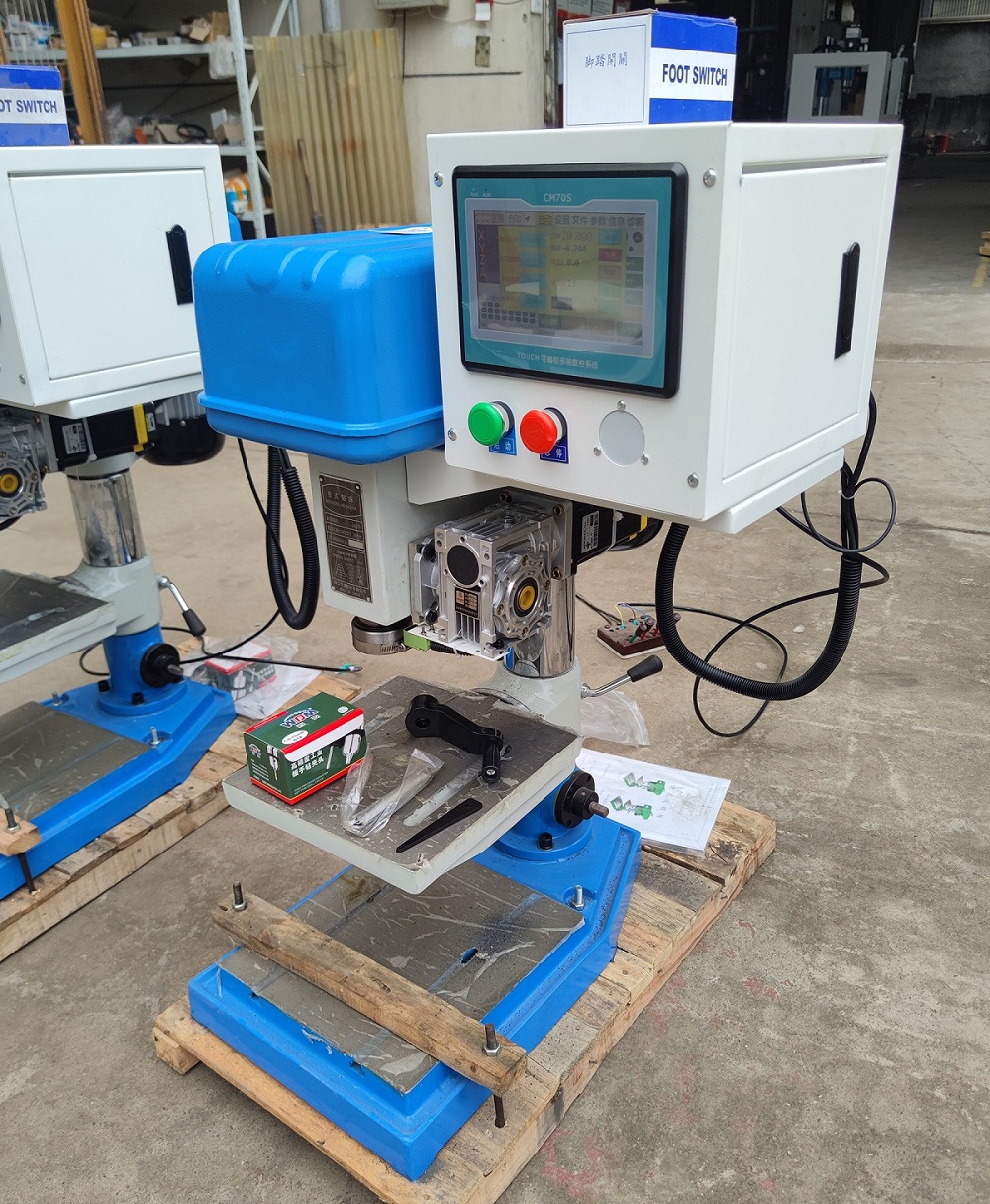

cnc 20mm automatic drill press 1 1kw for steel and cast iron2

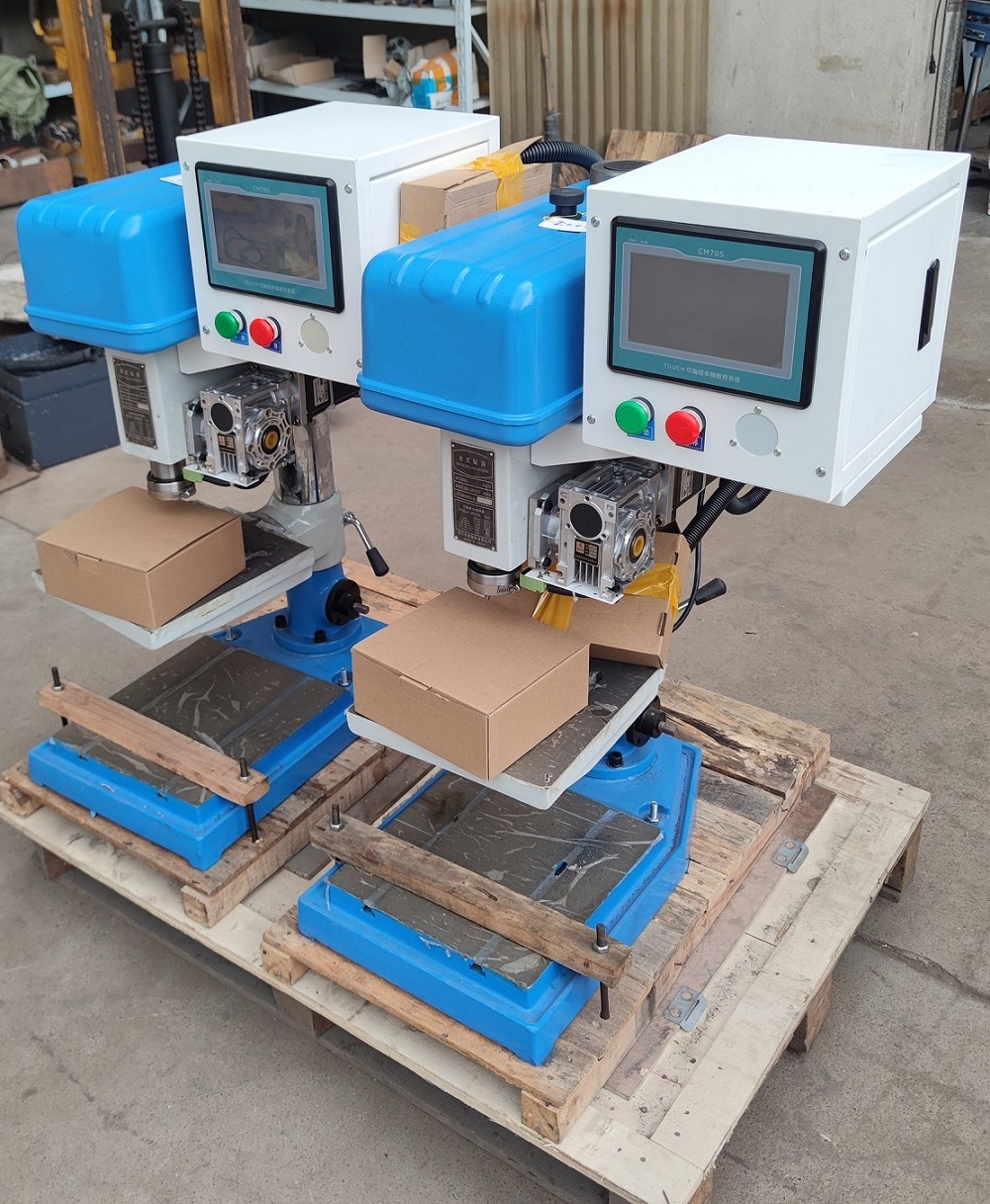

cnc 20mm automatic drill press 1 1kw for steel and cast iron1

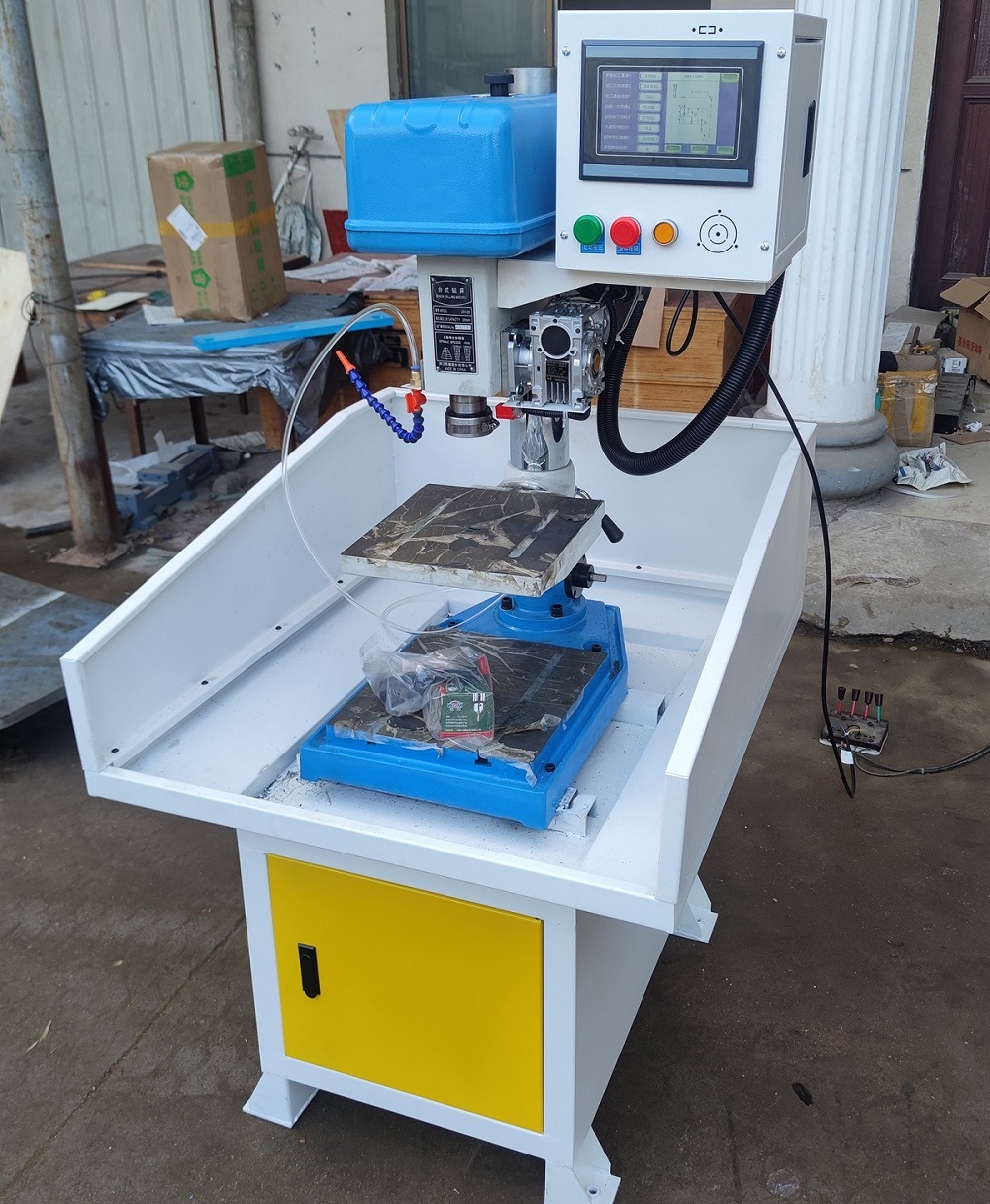

cnc 20mm automatic drill press 1 1kw with cooling system rack

Caratteristiche principali:

  • Drilling Capacity: Maximum drilling diameter of 16mm in steel and 20mm in cast iron.
  • High-Precision Feed System: 125mm spindle stroke and adjustable 5-speed belt drive for fine-tuning tasks with maximum accuracy.
  • Advanced Control: Precise adjustments via the PLC color display.
  • Sturdy Column Design: 85mm cylindrical column for enhanced stability and accuracy.
  • Flexible Workbench Layout: For versatile operations, central workbench (280x300mm) and solid base workbench (590x375mm).
  • Frame / Cooling System: Made from high-quality, thickened cold-rolled steel for durability and corrosion resistance.
cnc 20mm automatic bench drill press functional diagram
double station automatic drill press with cooling rack
automatic feeding cnc drill press bench drilling 2
automatic feeding cnc drill press bench drilling 1
automatic feeding cnc drill press bench drilling
  1. CNC Universal Dividing Head: Flexible indexing, vertical & horizontal, ideal for dividing workpieces.
  2. CNC Rotary Worktable: Vertical, horizontal, or angled rotation with easy operation and maintenance.
  3. CNC Cross/Longitudinal Worktable: X/Y axis movement for processing both regular and irregular hole patterns.
  4. CNC Control System: Multi-machine operation, simple, and batch production-friendly.

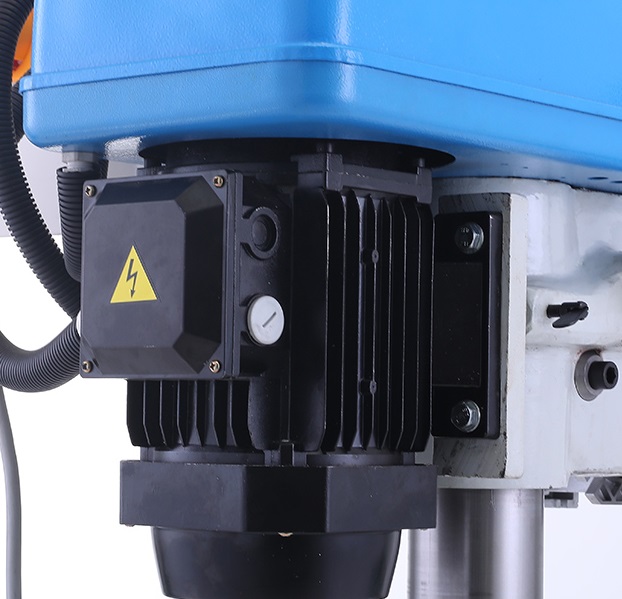

full copper motor
Full Copper Motor

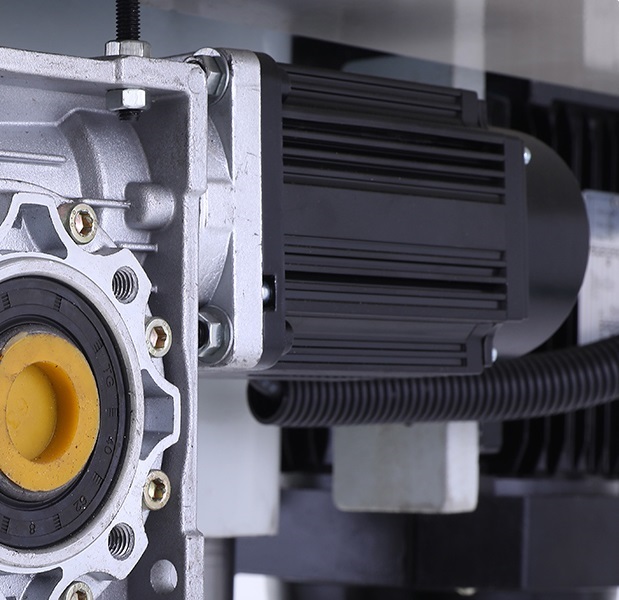

servo motor 2
Servo Motor

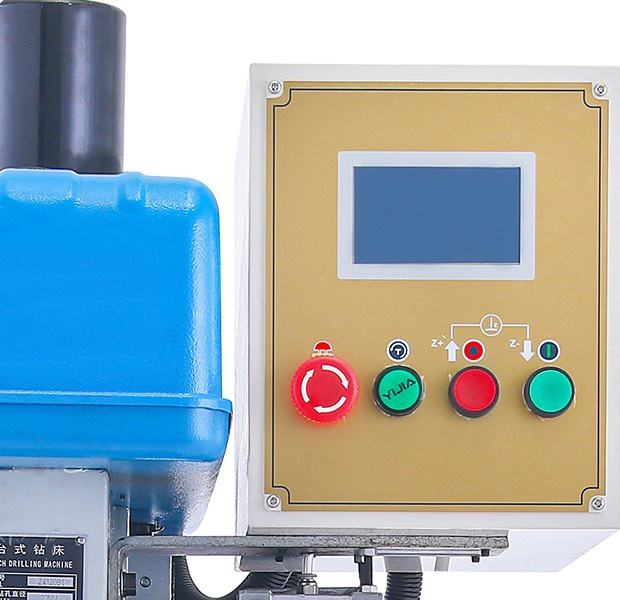

cnc control system
CNC Control System

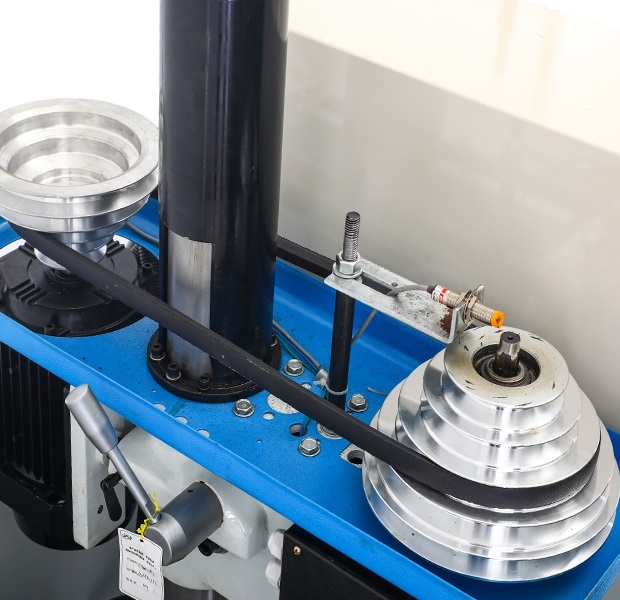

belt and tower wheel
Belt and Tower Wheel

Industrial CNC Automatic Drill Press Optional

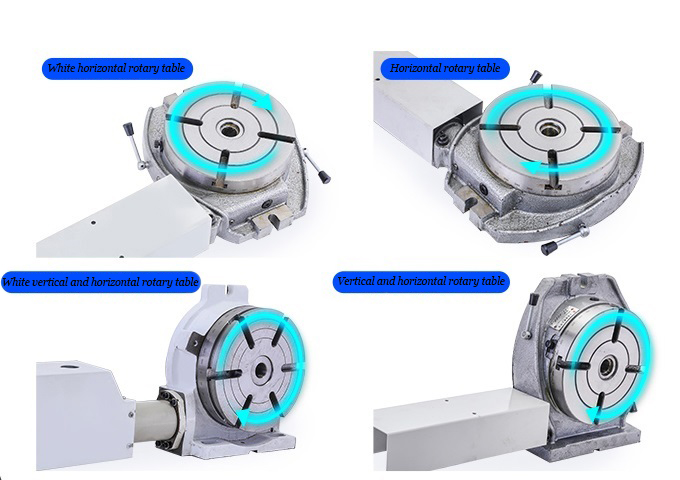

cnc rotary worktable
CNC rotary worktable

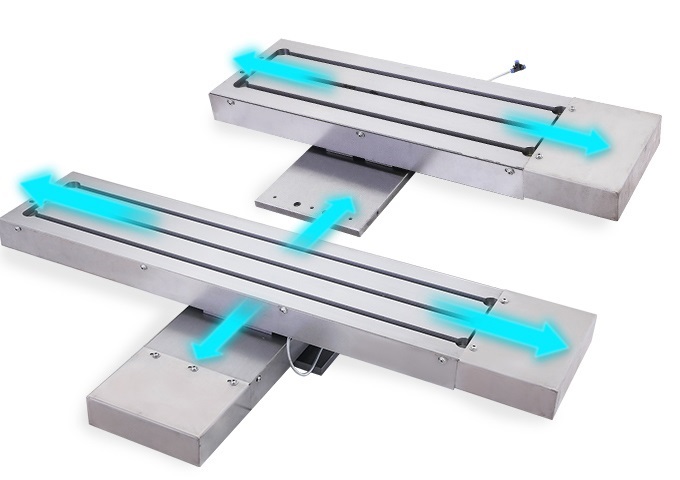

cnc cross longitudinal worktable
cnc cross longitudinal worktable

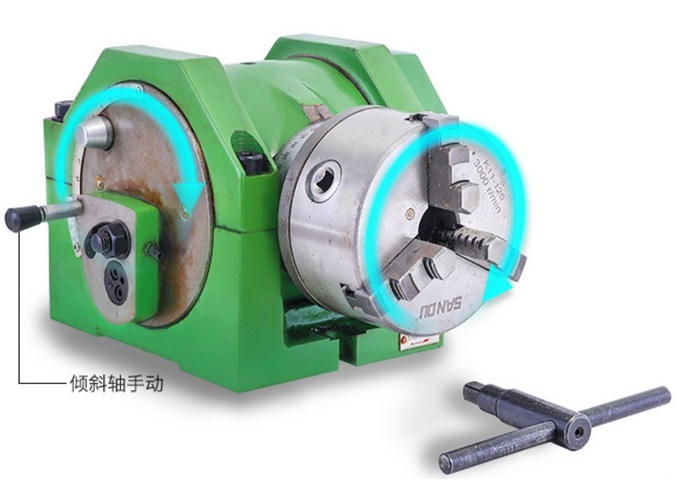

cnc universal dividing head
CNC universal dividing head

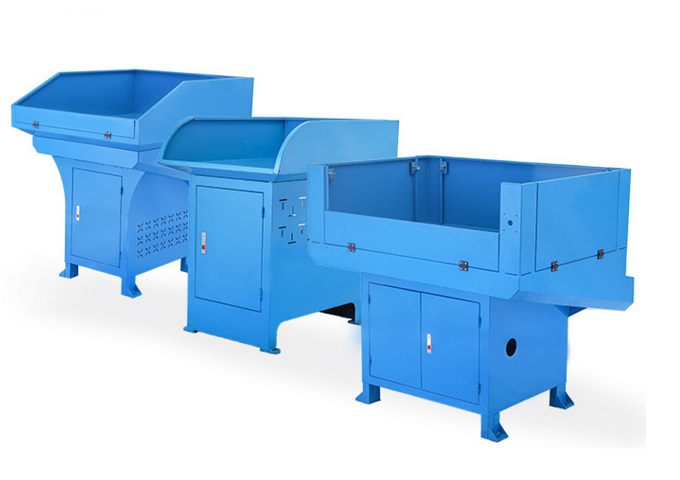

frame cooling system
frame cooling system



Modello AEK-Z4120B1 Specificazione
Max Drilling Diameter Acciaio 16mm
Cast Iron 20mm
Tapping Function Opzionale
Z-axis (Feed) Corsa del mandrino 125mm
Feed Structure Riduttore
Feed Servo Motor 750W
Spindle Taper MT2
Velocità del mandrino 365~3150 (r/min)
Modalità di trasmissione Belt
Speed Levels 5
Motore mandrino 1100W
Column Column Type Cylindrical
Diametro della colonna 85mm
Spindle End to Middle Table 299mm
Spindle End to Base Table 560mm
Spindle End to Column Surface 240mm
Sistema di controllo Tipo PLC Color Display Screen
Middle Table Size Dimensions (L*W) 280*300mm
Dimensioni di base Dimensions (L*W) 590*375mm
Frame/Cooling Tipo Opzionale
Peso Gross/Net (Approx.) Peso: 165/140 kg
