Industrial Cutting Horizontal Bandsaw

Model Number: AEK-HX-712R

$1300.00$1200.00
(Reference Price)

This AEK-HX-712R Industrial Cutting Horizontal Band Saw Clamp vice plate can be rotated up to 45°.

4-step blade speeds Horizontal metal cut band saw with 3ph 750kw / 1ph 1100kw.

Send Inquiry Now

Featured videos

Horizontal Vertical Cutting Band Saw 712R Manual Band Saw Machine Video

Horizontal Vertical Cutting Band Saw 712R Manual Band Saw Machine

The band saw is a versatile tool that can be used in a wide range of applications across different industries and settings,including metalworking industries,fabrication shops, maintenance facilities, educational settings, and hobbyist workshops.

Switching between horizontal and vertical cutting modes on the same machine is quick and easy, saving time and effort compared to using multiple machines,greatly improving production efficiency.

0-45° Body Corner Cutting

0°MAXIMUM SAWING
CAPACITY		 ●(178mm) ■(178×210mm)
45°MAXIMUM  SAWING
CAPACITY		 ●(127mm) ■(85×140mm)

Function Indication

industrial-cutting-horizontal-bandsaw-(bow-can-be-swiveled)-detail-img5

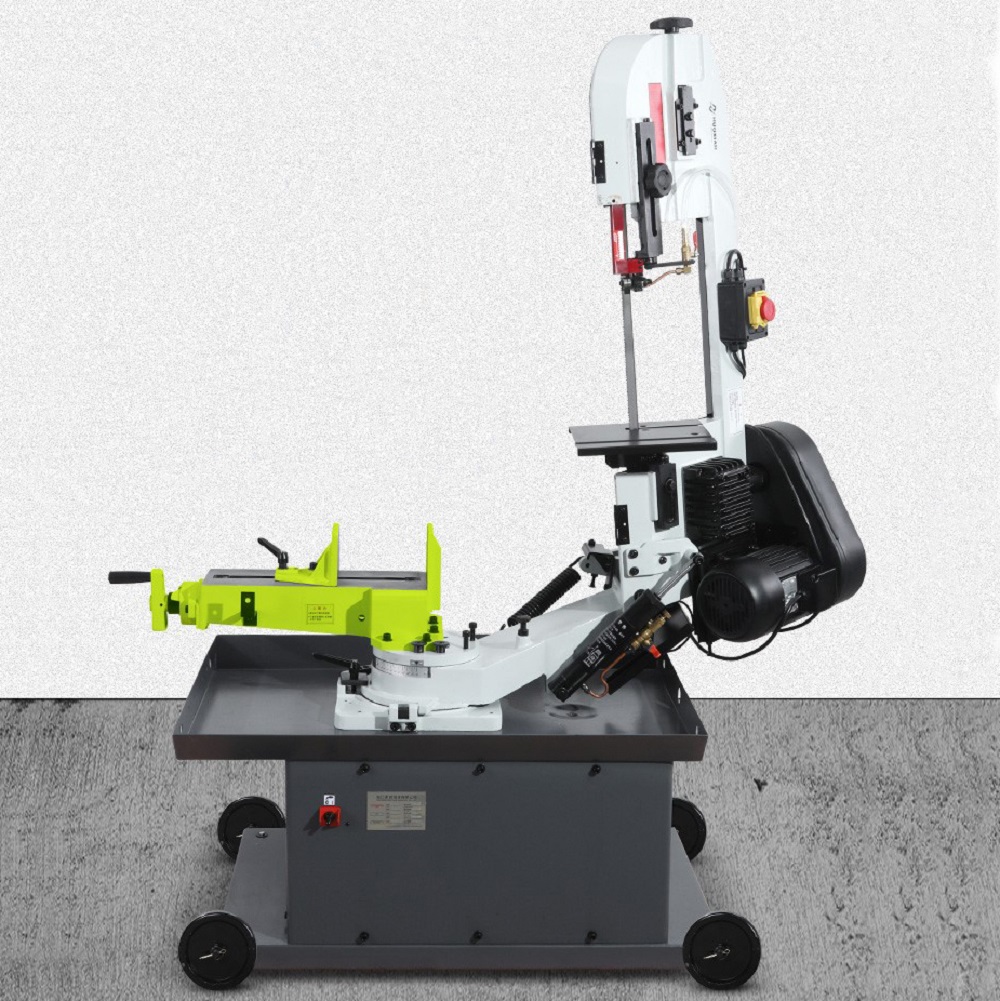

Vertical/Horizontal
With Silent Moving Wheels
back
Back
Horizontal & vertical sawing mode

Wide range of application materials
Chip baffle design
Cooling Pump
3ph electric switch
1ph electric switch
Model AEK-HX-712R
Hacksaw Blade(mm) 19×0.9×2362
Motor power:(w) 750
1100
Net weight/Gross weight(kg) 185/238
Cuting Range 90° ● 178
■ 178×210
45° ● 127
■85×140
60°
Machine dimensions(mm) 1200x610x1700
Power 3ph 750 / 1ph 1100
Line Speed 22/34/49/64MPM
European standard certification CE √
EU electromagnetic compatibility certification EMC √
EU Standard Certificate √
