Model Number: AEK-JY-Series

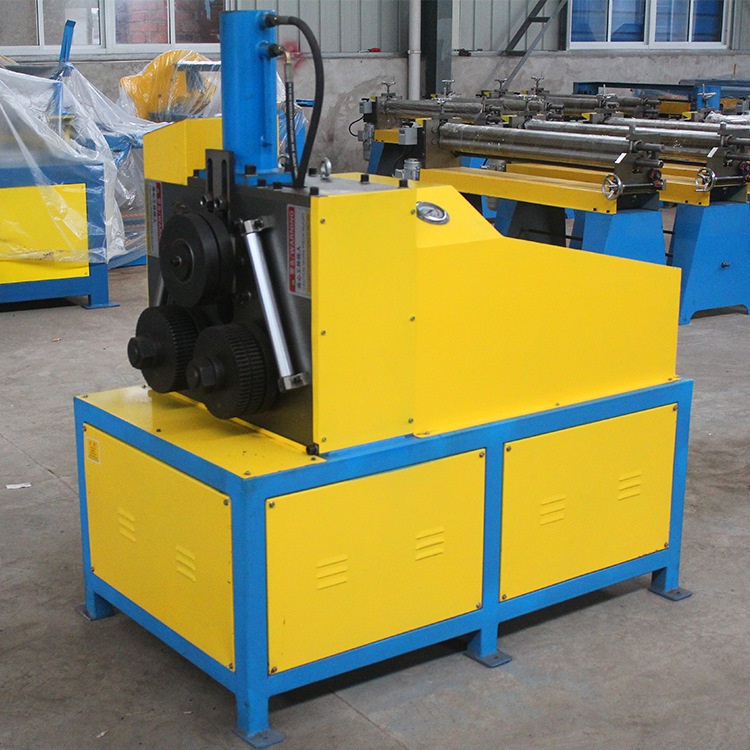

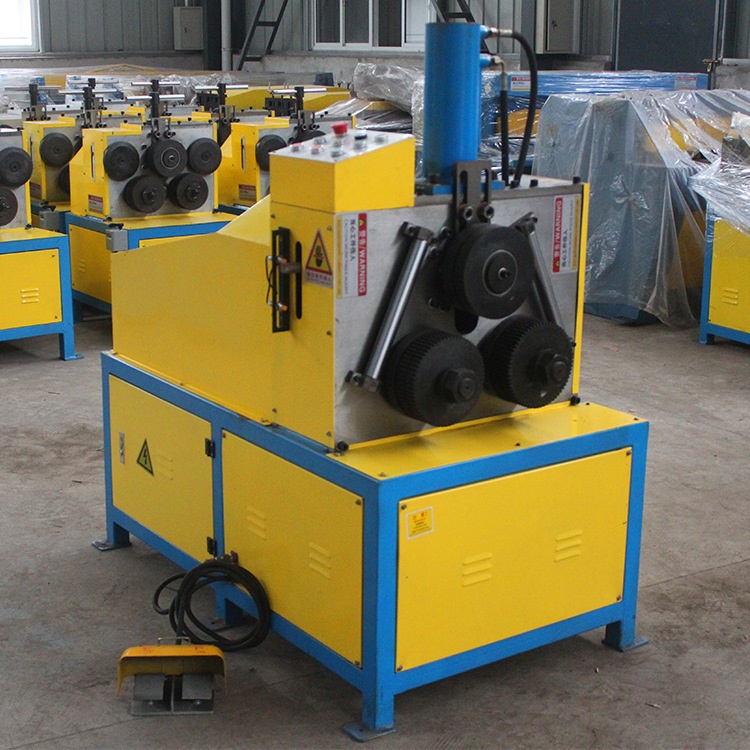

This hydraulic three-roller pipe bending machine is hydraulically driven, enabling quick and smooth bending of various metal materials, including flat iron, angle iron, T-shaped and U-shaped cross-section iron, square pipes, and round tubes.
This machine can easily bend flat angle iron with a maximum specification of L120*12 and round pipes with a diameter of 800 mm, while also accommodating other customized profiles to meet your diverse processing needs.
Our hydraulic roll bender can handle various bending tasks for those looking for more specialized solutions, including the hydraulic pipe bender 1/2 inch manual copper exhaust tube Bend.
The industrial-grade hydraulic system powers the movement of the top forming roller, ensuring seamless adjustments and maintaining stability throughout the bending process.
This machine serves as an ideal Hydraulic Roll Pipe Tube Bender for a wide range of applications.
| Model | AEK-JY-50 | AEK-JY-60 | AEK-JY-80 | AEK-JY-100 | AEK-JY-120 |
| Yield Strength (MPa) | ≤245 | ≤245 | ≤245 | ≤245 | ≤245 |
| Flat Iron Angle | L50*5 | L60*6 | L80*8 | L80*8 | L120*12 |
| The Volume Diameter (mm) | 400 | 400 | 500 | 600 | 800 |
| The Roller Diameter (mm) | 170 | 170 | 230 | 320 | 360 |
| The Main Motor Power (kW) | 2.2 | 3 | 7.5 | 11 | 11 |
| Vice Motor Power (kW) | / | 3 | 3 | 3 | 3 |
| Type Speed Reducer | 200 | 200 | 250 | 250 | 250 |
| Size – L (mm) | 1200 | 1200 | 1200 | 1200 | 1200 |
| Size – W (mm) | 660 | 700 | 1000 | 1000 | 1000 |
| Size – H (mm) | 1100 | 1150 | 1500 | 1500 | 1500 |
| The Weight (Kg) | 500 | 700 | 1100 | 1200 | 1300 |
