Hydraulic Square Pipe End Reducing Shrinking & Crimping Machine

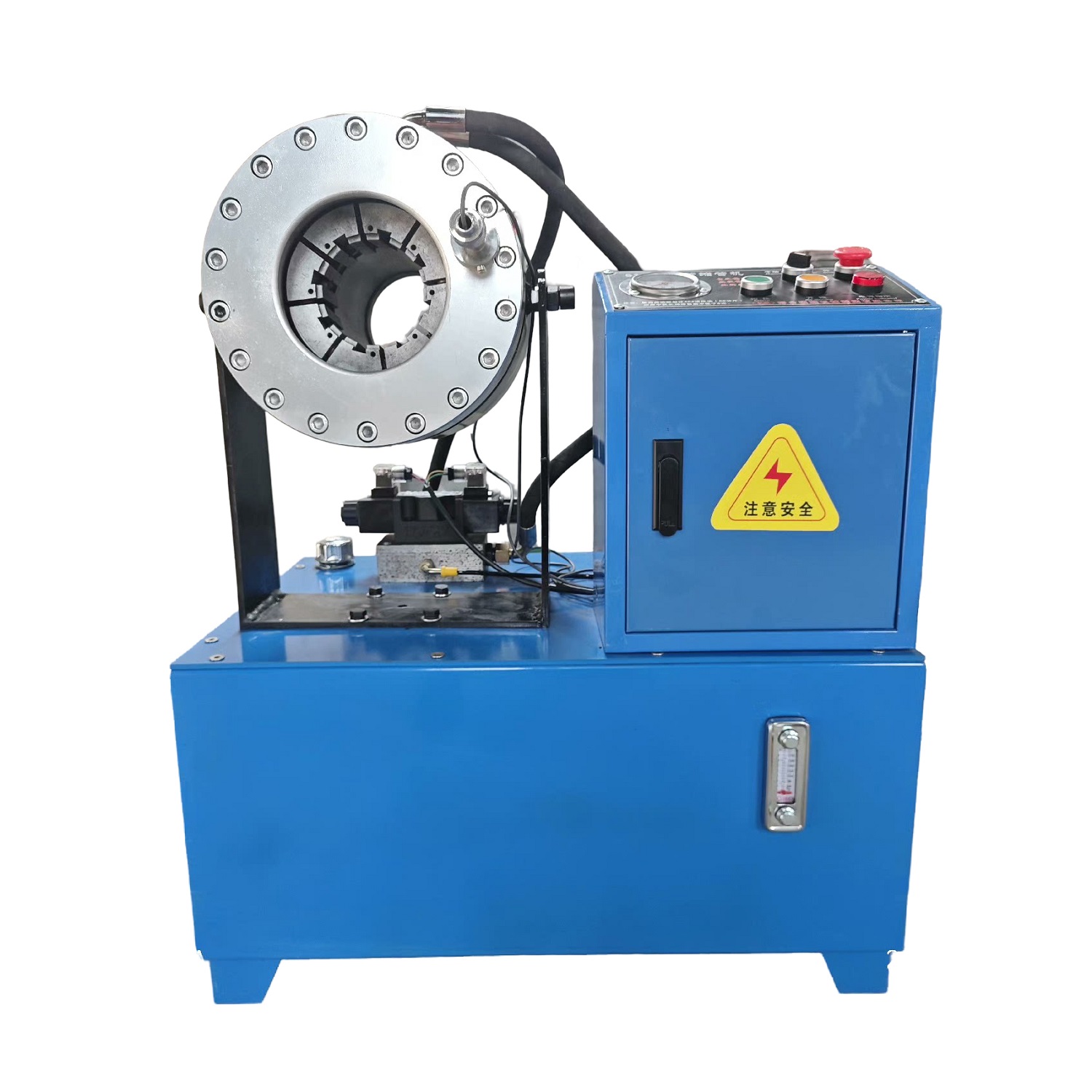

hydraulic pipe end reducing shrinking crimping machine img1

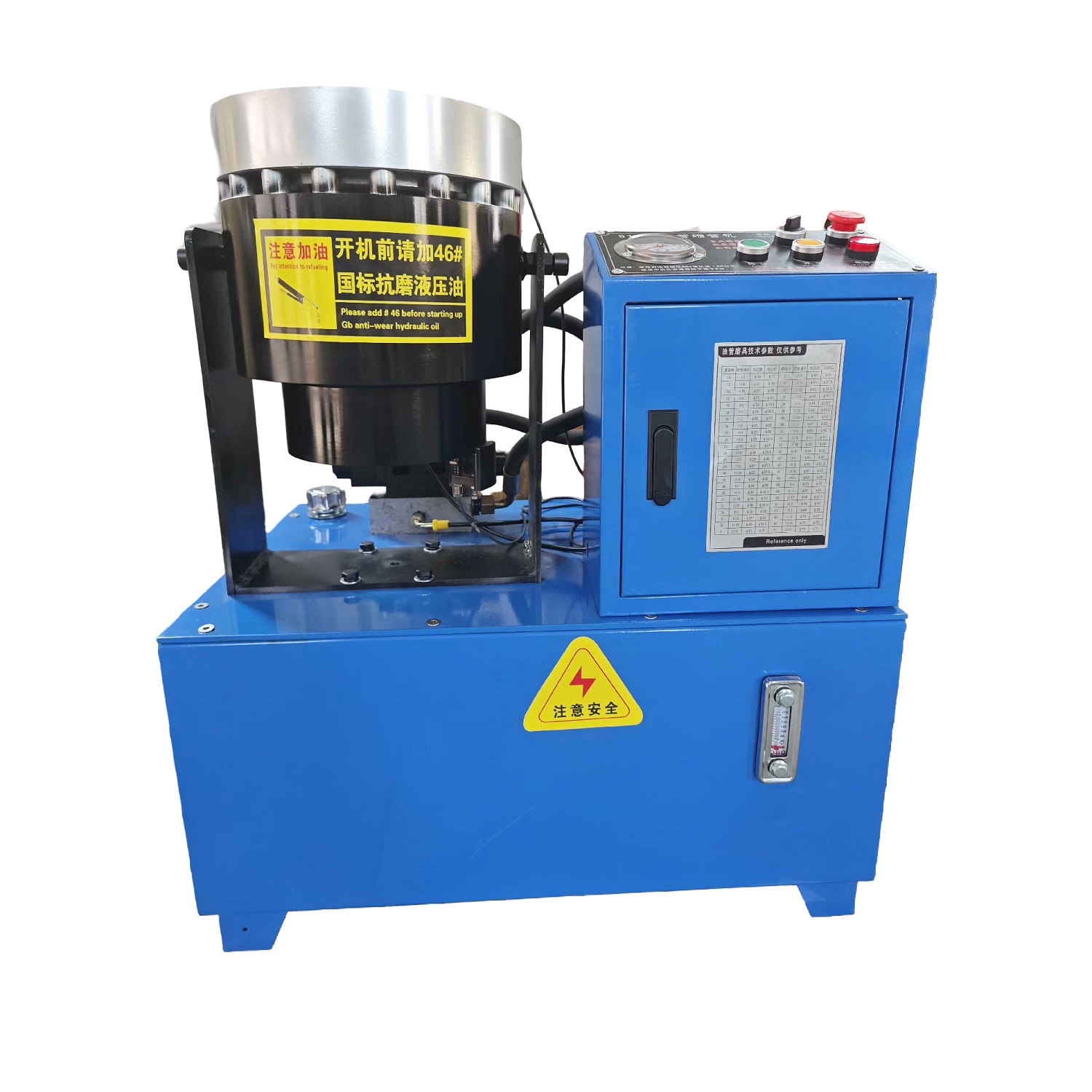

hydraulic pipe end reducing shrinking crimping machine img2

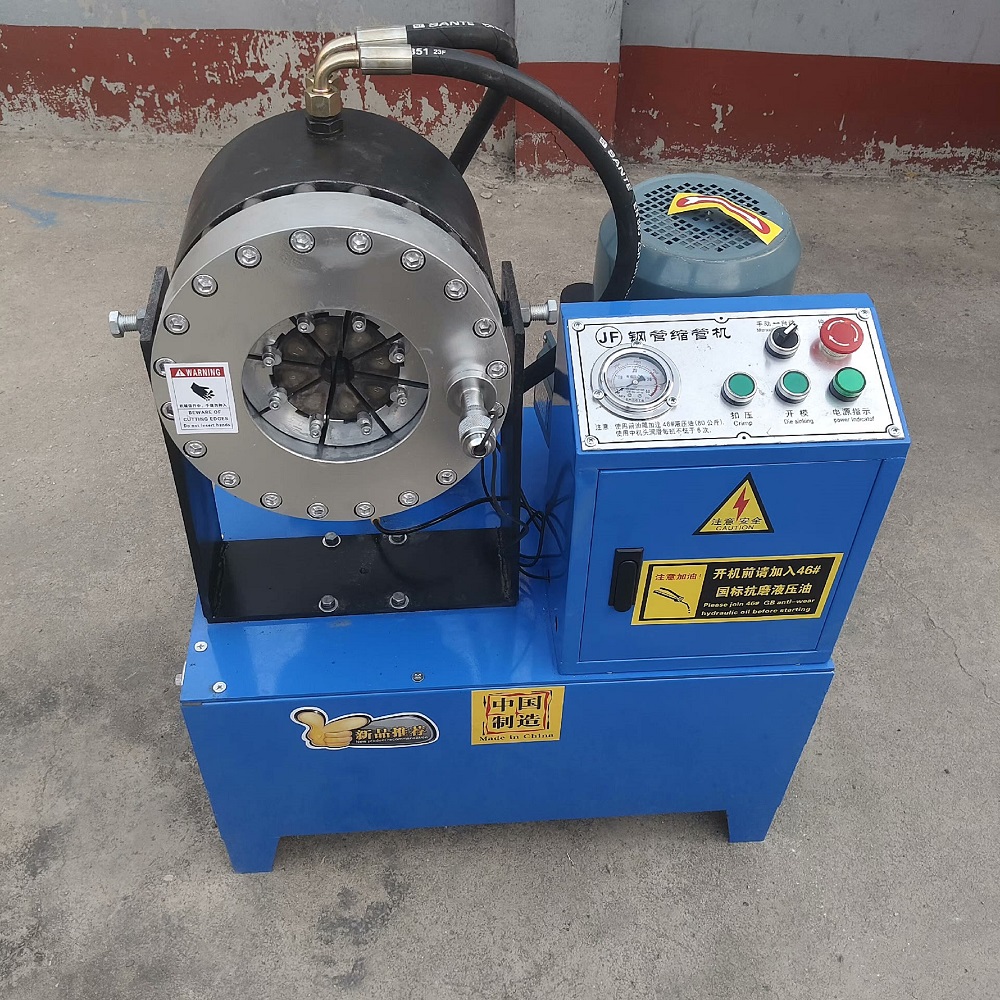

hydraulic pipe end reducing shrinking crimping machine img3

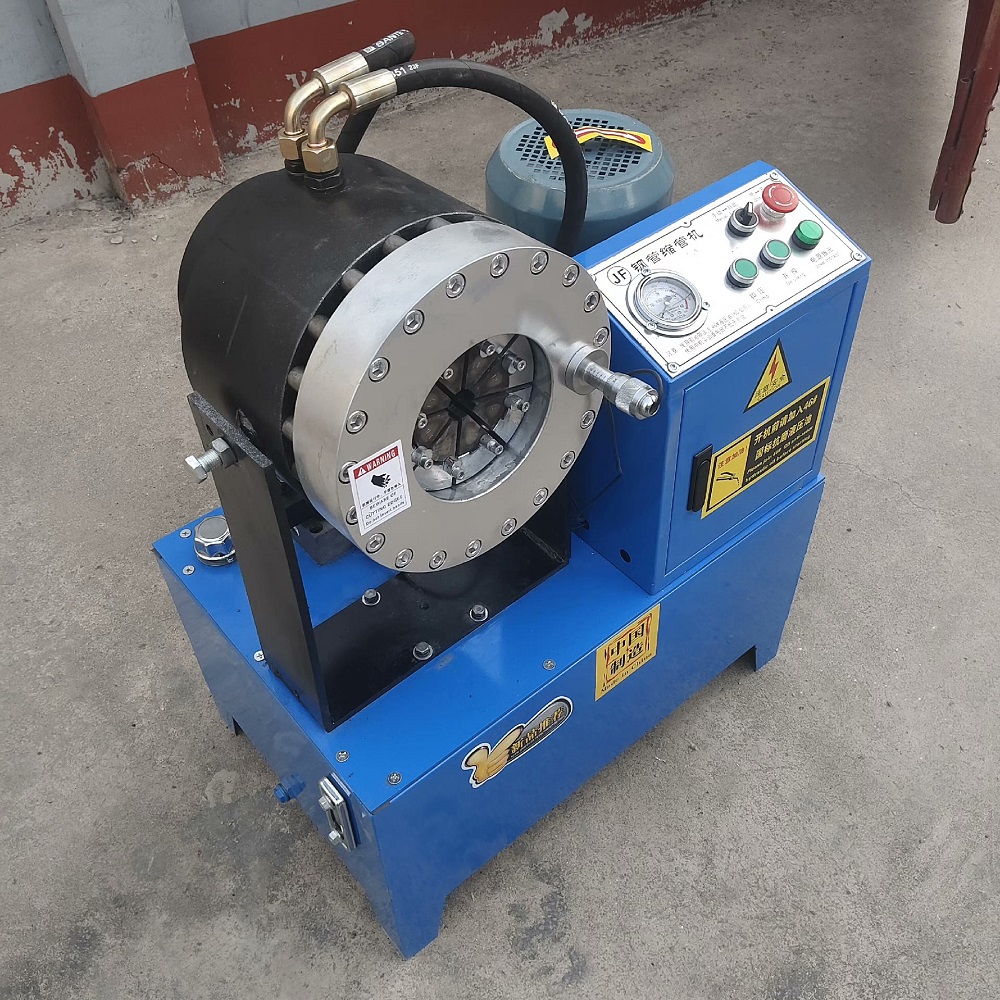

hydraulic pipe end reducing shrinking crimping machine img4
hydraulic pipe end reducing shrinking crimping machine img1
hydraulic pipe end reducing shrinking crimping machine img2
hydraulic pipe end reducing shrinking crimping machine img3
hydraulic pipe end reducing shrinking crimping machine img4

Model Number: AEK-SHSM

$1100.00$800.00
(Reference Price)

This equipment features a versatile design with vertical and horizontal operation modes and is equipped with an intelligent CNC system. The crimping function ensures secure and reliable pipe connections that are suitable for processing various types of pipes.

The wear-resistant precision engraving head design maintains high accuracy and excellent performance even after extended use. Additionally, the precision knob positioning allows for greater accuracy during the processing.

It is widely used for the processing of scaffolding pipes, greenhouse pipes, high-pressure pipes, irregular pipes, air-conditioning pipes, steel wire ropes, square pipes, round pipes, and other types of pipes.

Send Inquiry Now

Featured videos

Tube reducing machine ALEKVS Video

Tube reducing machine ALEKVS

square tube reducing machine # Video

square tube reducing machine #

Machine Application

stainless steel shrink tube
square tube shrink tube2
square tube shrink tube
tubing and crimping

Machine photos

80mm pipe end forming and shrinking machine
tube tip reducer shrinking former pipe end shrink forming machine
6 76mm hydraulic tube and pipe end forming shrinking machine
pipe pressing equipment automatic pipe shrinking machine
hydraulic steel hose and pipe end shrinking and crimping machine
hydraulic steel hose and pipe end shrinking and crimping machine alloy machine head

Machine details

  • Solenoid Valve: High sensitivity, strong sealing, fast response
  • Spiral Micrometer: Upper and lower limit valves, rotary positioning, high scale adjustment precision
  • Eight-Petal Arbor Base: Forged from 20Cr material, heat-treated for hardness, improved wear resistance and precision
  • Foot Switch: Safe, stable, flexible, and convenient. Easily movable when processing long materials, saving time and freeing hands
  • Precision Engraving Head: CNC engraving and milling for higher precision, wear-resistant with built-in double-layer dust protection for long service life
  • CNC Panel: Integrated key operation, safe and convenient, instrument display with multiple adjustments
  • High-Quality Molds: Custom molds available according to customer requirements, made to different specifications
  • Electroplated Head: High-quality alloy head, long service life, heat-resistant and wear-resistant
spiral micrometer
solenoid valve 2
precision engraving head
high speed motor
high quality mold
electronic appliances
Modle Hydraulicpipe shrinking
machine		 Hyperbolic 6-wheel steel pipe straightening
machine
Walking speed 12m/min 12m/min
Scope of
application		 20/22/25/32mm 48-51mm
Straightening
camber		 60° 60°
Straighteningeffect ≤3° ≤3°
Product function Straightening and bending Straightening,derusting,descaling and painting
Motor Power 3kw 3kw+3kw+3kw
Overall dimension 130×95×120cm 290×95×120cm
Weight 350kg 1100kg
