Hydraulic Pipe End Forming Reducing & Expanding Machine

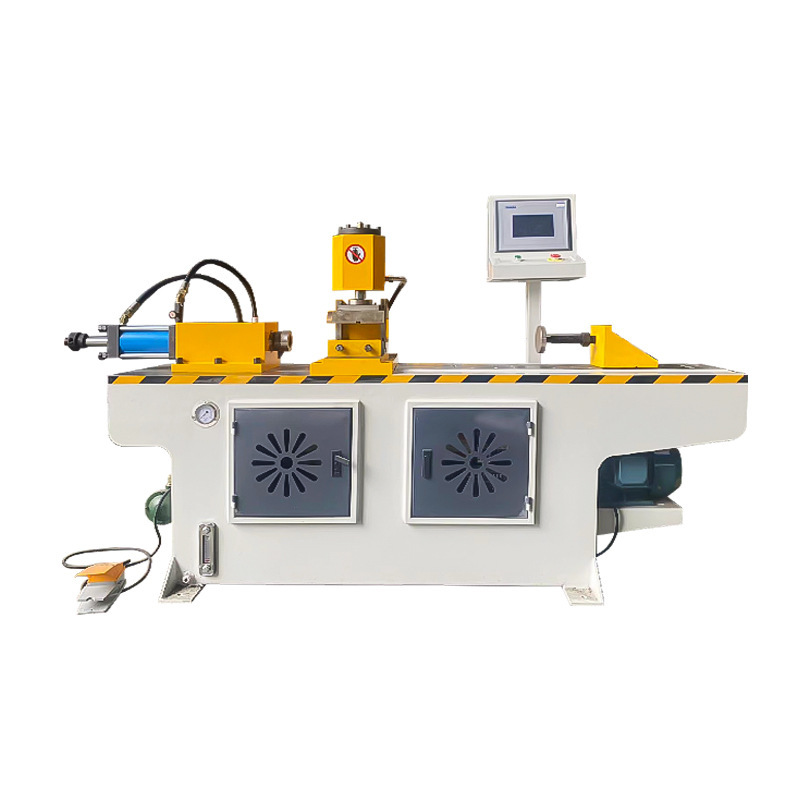

hydraulic pipe end forming and expanding machine img5

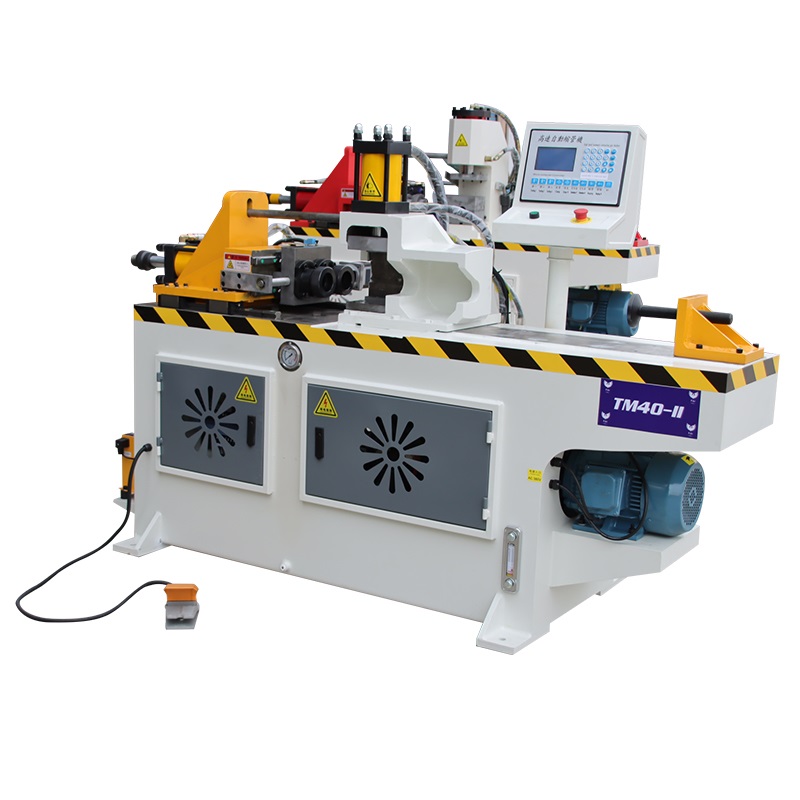

hydraulic pipe end forming and expanding machine img2

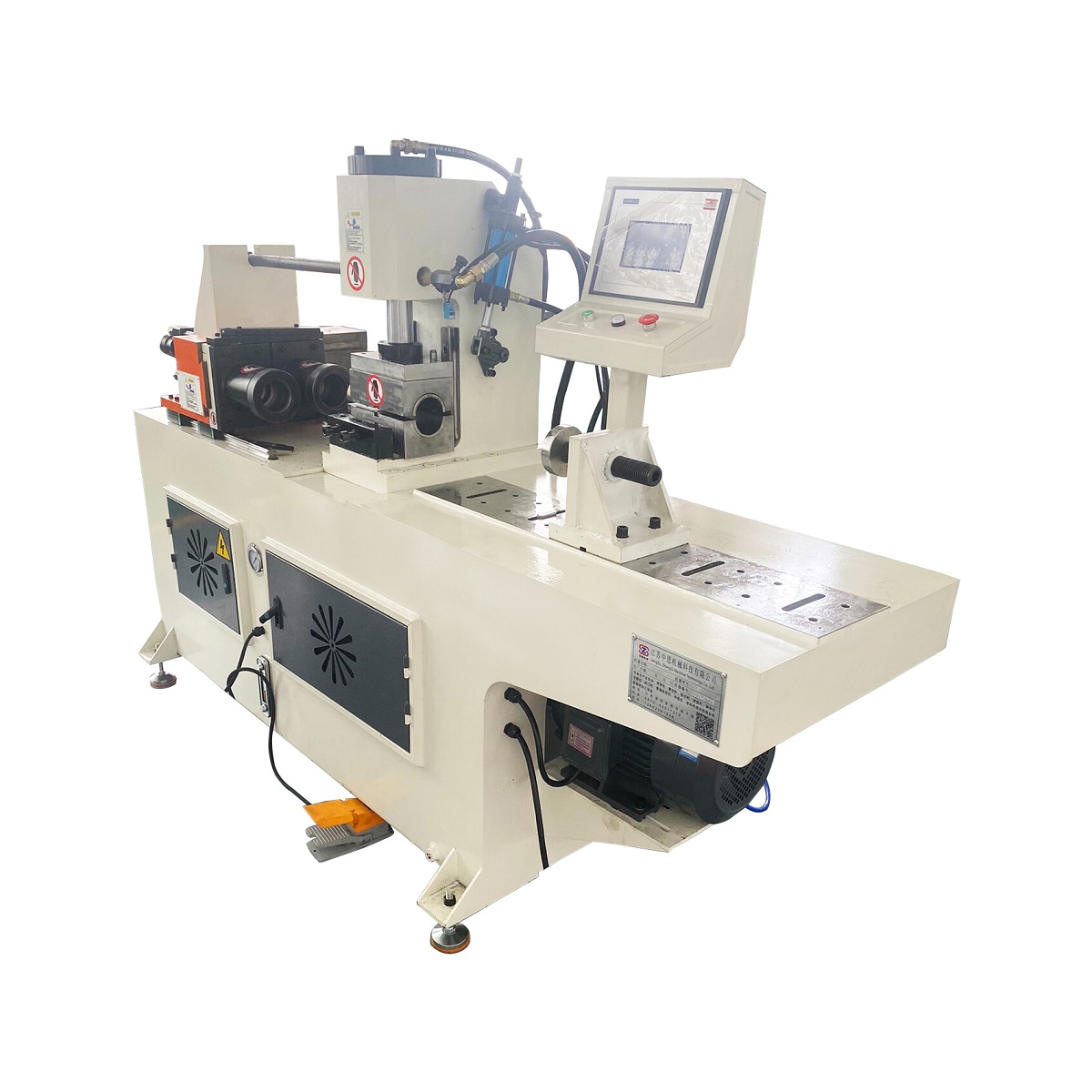

hydraulic pipe end forming and expanding machine img1

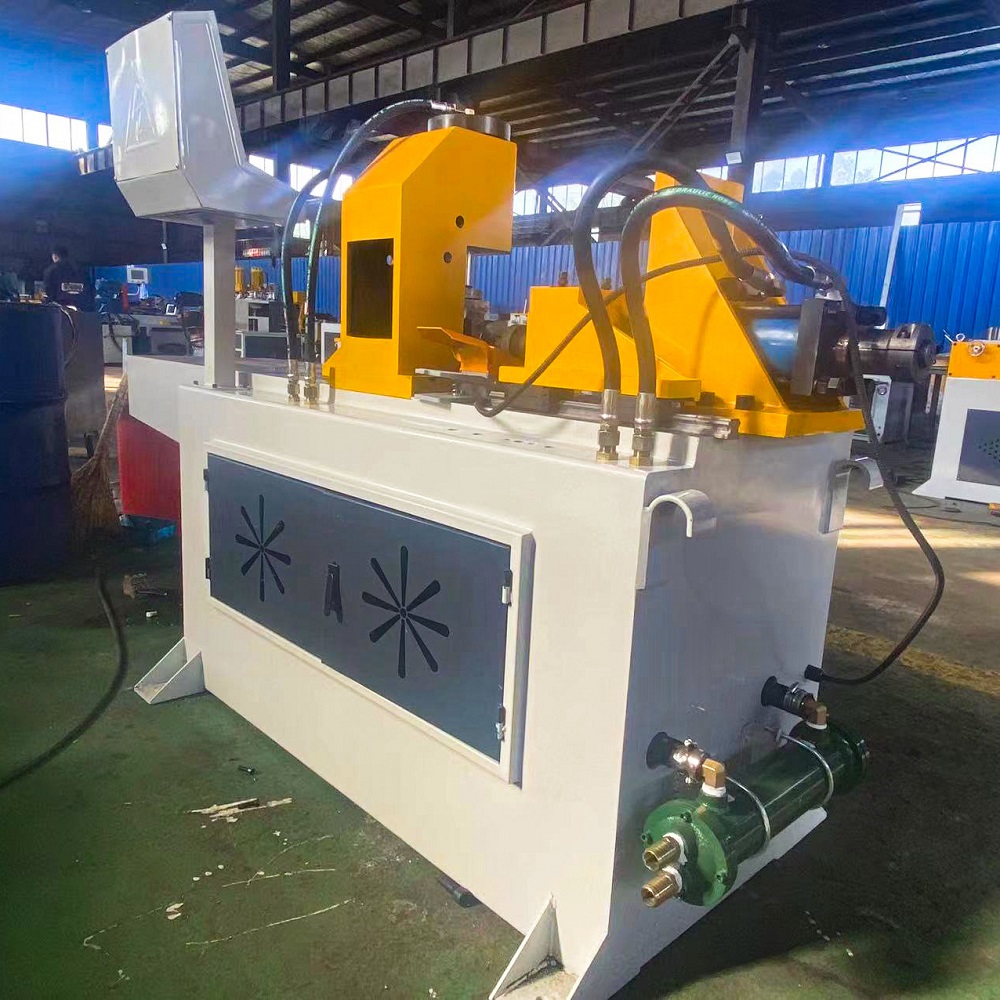

hydraulic pipe end forming and expanding machine img3

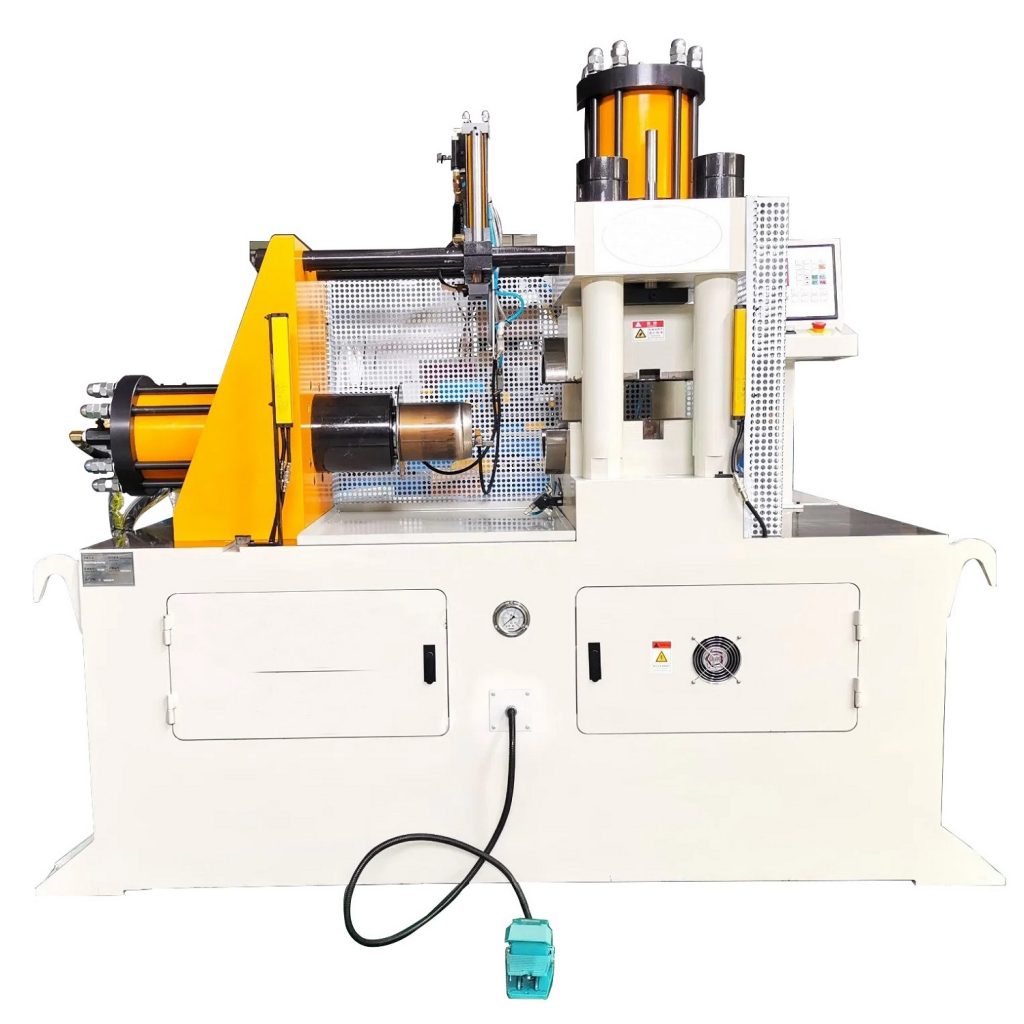

hydraulic pipe end forming and expanding machine img4
hydraulic pipe end forming and expanding machine img5
hydraulic pipe end forming and expanding machine img2
hydraulic pipe end forming and expanding machine img1
hydraulic pipe end forming and expanding machine img3
hydraulic pipe end forming and expanding machine img4

Model Number: AEK-120A1

$3400.00$3200.00
(Reference Price)

The Hydraulic Pipe End Forming and Reducing Machine handles pipe lengths from 0 mm to 2500 mm. It features custom-forming dies for pipe fittings and tube shrinking (expanding, reducing), providing robustness and reliability.

Faster production is achieved with forming times ranging from 3 to 7 seconds, depending on the model.

Customized precision punches with alloy steel liners ensure accuracy controlled within ±0.05 mm.

ALEKVS offers automatic pipe shrinking, expanding, reducing, flaring, crimping, beading, and end-forming machines, along with tailored solutions.

Send Inquiry Now

Featured videos

Fully automatic pipe reducing machine Video

Fully automatic pipe reducing machine

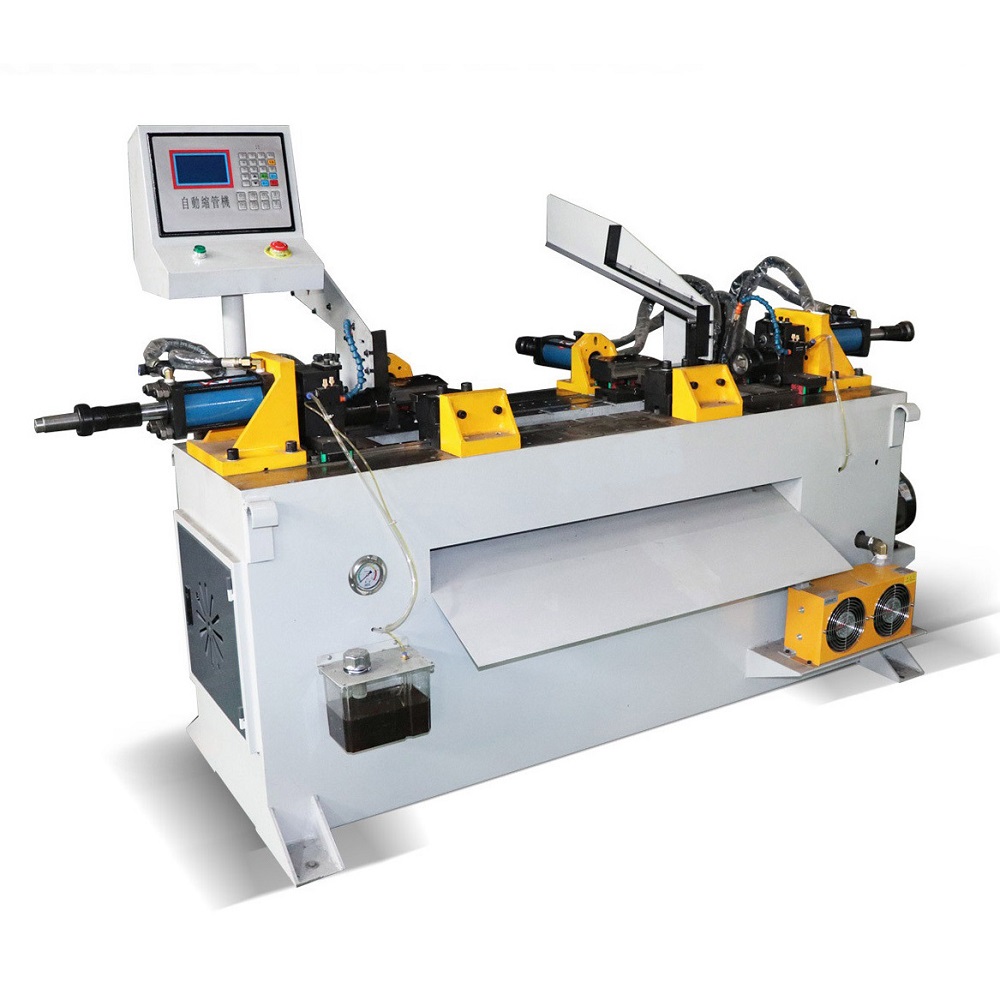

AEK40NC Double Head Pipe Tube End Forming & Shrinking Machine Video

AEK40NC Double Head Pipe Tube End Forming & Shrinking Machine

AEK Pipe Tube End Forming Reducing Expanding Shrinking Machine Application samples

pipe reducing expanding shrinking forming application
round pipe reducing2
round pipe reducing
dm 20250108192135 002

Hydraulic Pipe End Forming and Expanding Machine Key Features

  • Custom Forming Dies: Designed for pipe fittings and tube shrinking (expanding, reducing, ribs), ensuring robust and reliable performance.
  • Hydraulic-Driven Operation: Tube clamping and end-forming processes are powered by hydraulic systems for high precision.
  • Emergency Stop Device: Provides enhanced safety during operation.
  • Water Cooling System: Ensures stable performance during long-duration, high-temperature tasks.
  • Customized Precision Punches: Alloy steel liners with accuracy controlled within ±05 mm.
  • Adjustable Rear Limit Stop Screw: Ensures precise tube shrinking and expanding.
  • Precision Electrical Control: Includes brand-name air switches, AC contactors, and thermal overload protectors.
  • Loop Oil Circuit: Ensures precise machine control.
  • Mobile Pedal Switch: Allows for emergency stops, enhancing operational safety.
  • Optional Multi-Station Mode: Provides enhanced flexibility and efficiency.

 Machine Photos

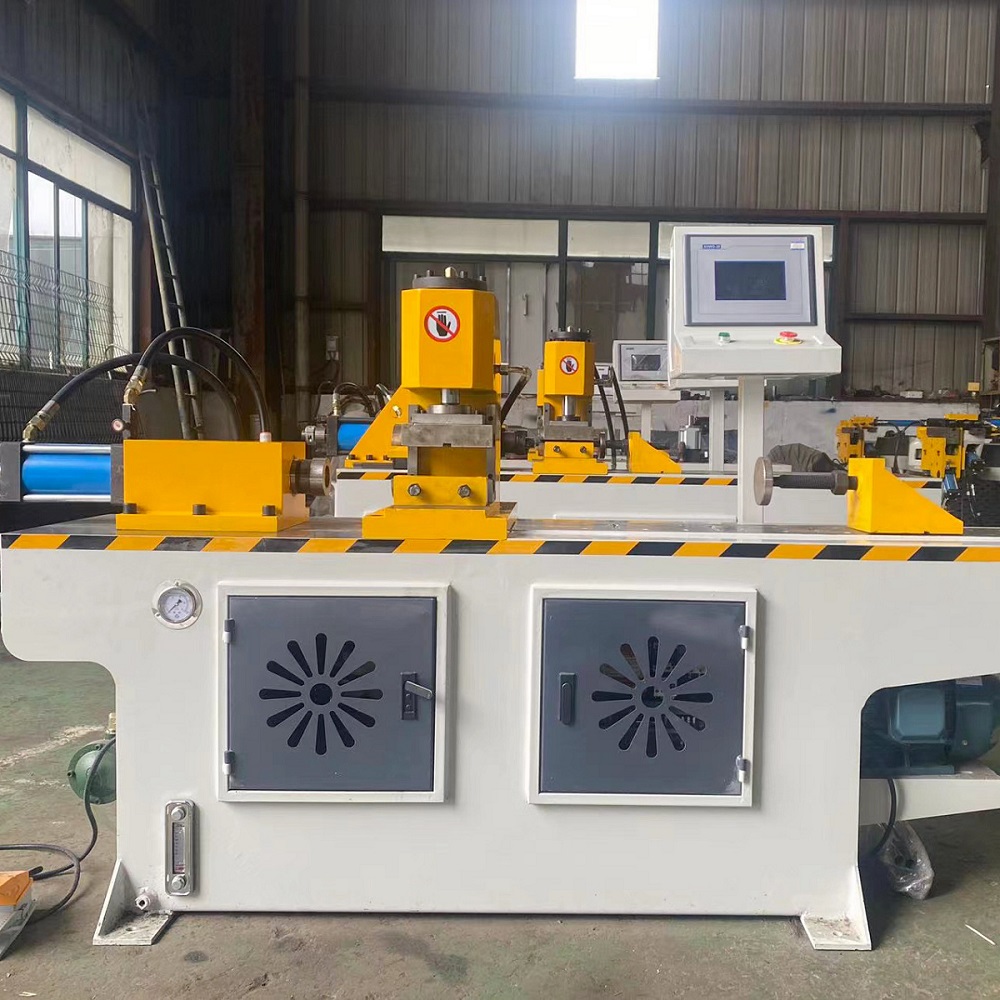

pipe end forming reducing expanding shrinking machine 3
tube pipe end forming reducing expanding shrinking machine2
tube pipe end forming reducing expanding shrinking machine
stainless steel pipe tube end forming reducing expanding shrinking machine
pipe tube end forming reducing expanding shrinking machine
hydraulic pipe end shrinking and diameter reducing machine
round tube expanding

Pipe Tube End Forming Machine for Reducing and Expanding OEM

alekvs oem hydraulic pipe end forming and reducing machine
alekvs oem hydraulic pipe end forming and expanding machine

Hydraulic Pipe End Forming and Expanding Machine – Component Details

rear limit stop screw adjustable
hydraulic cylinder
precision electrical control box
plc control panel
tube and pipe end reducing expanding shrinking forming machine fixture
pipe tube end forming expanding
square tube reduction
forming mold customizable
high quality motor
Model AEK-40A1 AEK-60A1 AEK-80A1 AEK-120A1
Max. Tube O.D. & W.T. (mm) Φ40×2.0 Φ60×2.5 Φ80×3.0 Φ120×3.0
Forming Speed (per sec) 150 180 180 200
Forming Time (sec) 3s 4s 5s 7s
Length of Application (mm) 1500 1800 2000 2500
Total Power 5HP 7.5HP 10HP 15HP
Dimensions (m) 2.2×0.4×1.1 2.2×0.45×1.1 2.5×0.48×1.1 3.0×0.5×1.1
Weight of Machine (kg) 800 1100 1500 1800



Type OD Station of forming Max. forming length Model
Single head -1H up to 30 mm 1 / 2 / 3 /4 S 100 mm AEK-30-1H
up to 40 mm 1 / 2 / 3 /4 S 100 mm AEK-40-1H
up to 60 mm 1 / 2 / 3 /4 S 120 mm AEK-60-1H
up to 80 mm 1 / 2 / 3 /4 S 170 mm AEK-80-1H
up to 100 mm 1 / 2 / 3 /4 S 210 mm AEK-100-1H
up to 130 mm 1 / 2 / 3 /4 S 250 mm AEK-130-1H
up to 150 mm 1 / 2 / 3 /4 S 250 mm AEK-150-1H
Double head -2H up to 30 mm 1 / 2 / 3 /4 S 100 mm AEK-30-1H
up to 40 mm 1 / 2 / 3 /4 S 100 mm AEK-40-2H
up to 60 mm 1 / 2 / 3 /4 S 120 mm AEK-60-2H
up to 80 mm 1 / 2 / 3 /4 S 170 mm AEK-80-2H
up to 100 mm 1 / 2 / 3 /4 S 210 mm AEK-100-2H
up to 130 mm 1 / 2 / 3 /4 S 250 mm AEK-130-2H
up to 150 mm 1 / 2 / 3 /4 S 250 mm AEK-150-2H
