Hydraulic Automatic Double-Head Tube End Shrinking and Expanding Machine

double head pipe end forming shrinkage retraction machine img2
double head pipe end forming shrinkage retraction machine img3

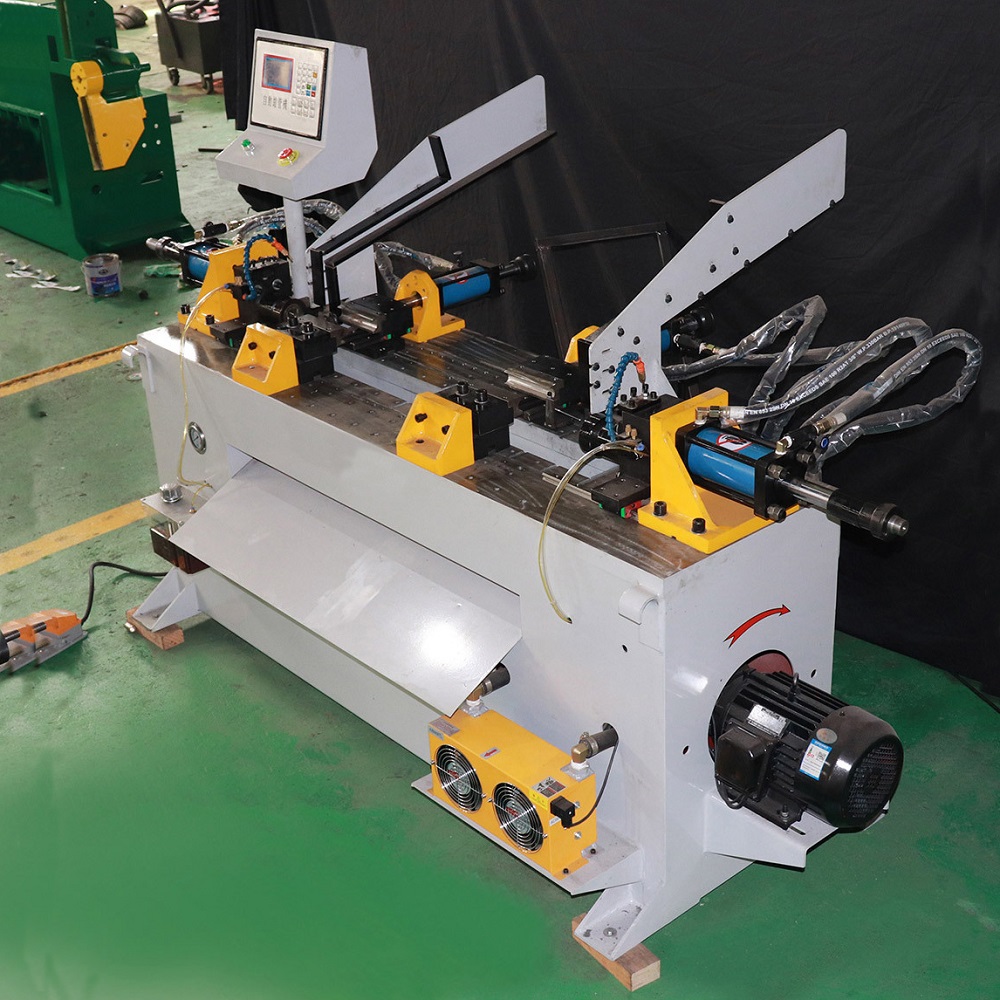

double head pipe end forming shrinkage retraction machine img4

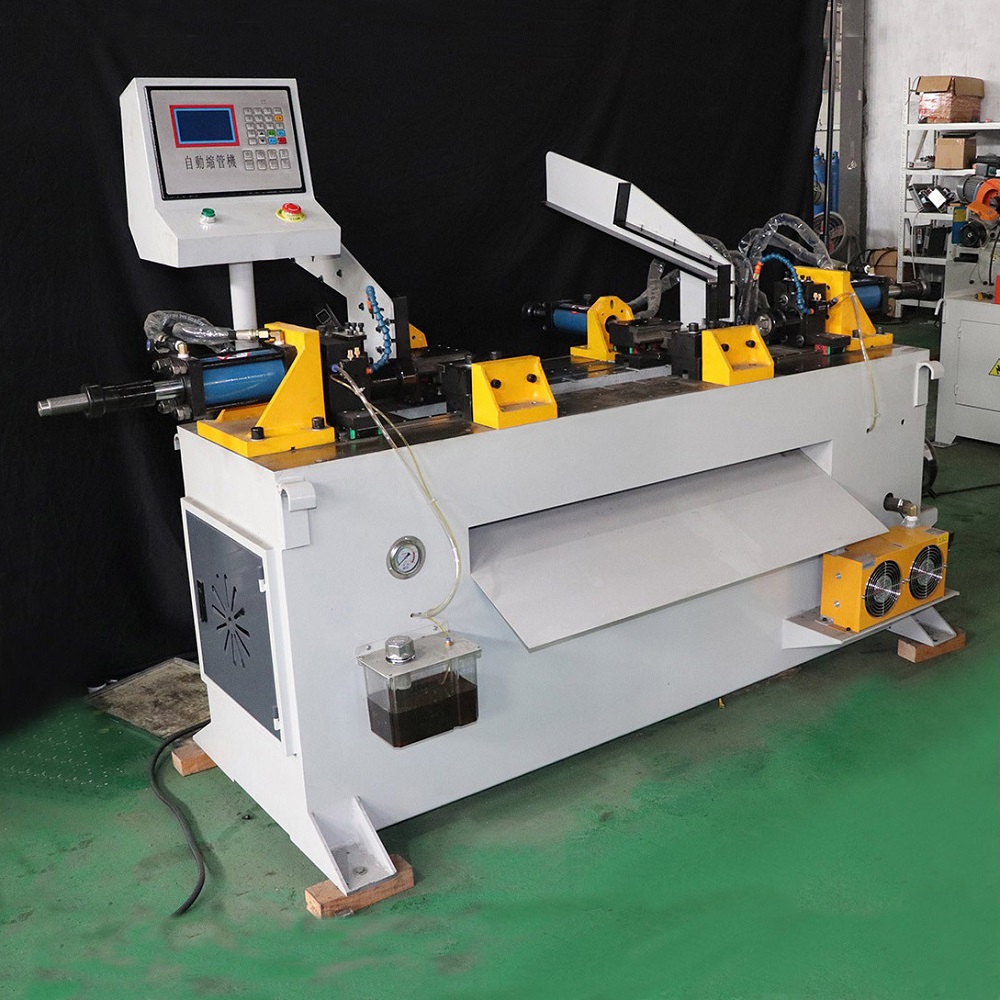

double head pipe end forming shrinkage retraction machine img1
double head pipe end forming shrinkage retraction machine img2
double head pipe end forming shrinkage retraction machine img3
double head pipe end forming shrinkage retraction machine img4
double head pipe end forming shrinkage retraction machine img1

Model Number: AEK-40NC

$2300.00$2200.00
(Reference Price)

ALEKVS Hydraulic Double-Head Automatic Pipe Shrinking Machine With models ranging from AEK-40NC to AEK-220NC, the series supports pipe diameters from 40mm to 220mm and wall thicknesses up to 8mm.

Available strokes of 100mm to 150mm make these machines suitable for pipe end-forming tasks such as expanding, beading, and flaring.

  • Tooling can be customized based on customer drawings or sample workpieces.
  • Supports single-station, dual-station, or multi-station operations for versatile processing.
Send Inquiry Now

Featured videos

Double Head Tube End Forming & Expanding Machine Video

Double Head Tube End Forming & Expanding Machine

Automatic loading and unloading Double Head Tube End Forming & Shrinking Machine Video

Automatic loading and unloading Double Head Tube End Forming & Shrinking Machine

Hydraulic Double-Head Aluminum & Stainless Steel Pipe Shrinking Machine Applications

  • Supports various materials, including steel, stainless steel, aluminum, titanium, and brass.
  • Automotive exhaust systems.
  • Furniture manufacturing.
  • Air conditioning and refrigeration industries.
  • Metal pipe forming for general industrial purposes.
stainless steel punching shrink tube2
stainless steel punching shrink tube1
stainless steel punching shrink tube
plc controlled cnc automatic pipe shrinking machine with double heads
fully automatic double head pipe shrinking machine with plc control

Customize the machine for your product

double head tube end forming expanding machine
pipe shrinking tube reducing machine for furnituretablechair leg processing
double head pipe end forming shrinkage retraction machine
auto double head tube end forming shrinking expanding machine for metal pipes

CNC Automatic Double-Head Pipe Reducing & End Forming Machine Key Features

User-Friendly Operation

Equipped with a human interface for easy access to auto and manual operating modes.

Mobile foot switch offers dual functions: start and emergency stop.

compact structure
plc control
hydraulic system

High-Quality Construction

All parts are manufactured under strict quality control for high durability and standardized specifications.

Constructed with high-precision linear guide rails for stable and accurate propulsion.

Made with stainless steel for durability and resistance to corrosion.

aek40nc double head pipe tube end forming shrinking machine
hydraulic double head aluminum stainless steel pipe shrinking machine

Hydraulic System

Hydraulic-driven clamping and end-forming mechanisms ensure smooth operation.

Equipped with a hydraulic cooling system for stable, long-term operation under high temperatures.

Utilizes imported high-performance hydraulic valve elements for efficient mold changes.

Customization & Tooling

Tooling can be customized based on customer drawings or sample workpieces.

Supports single-station, dual-station, or multi-station operations for versatile processing.

Optional punching die.

cooling system 2
automatic clamping
positioning screw rod
Model AEK-40NC AEK-60NC AEK-80NC AEK-100NC AEK-115NC AEK-165NC AEK-220NC
Capacity 40x2mm 60×2.5mm 80x3mm 100×3.5mm 115x4mm 165x5mm 220x8mm
Max. Forming Stroke 100mm 100mm 100mm 150mm 150mm 150mm 150mm
Forming Time 3-4s 4-5s 7-8s 9-10s 12-14s 15-18s 20-25s
Power 4Kw 5.5Kw 7.5Kw 11Kw 15Kw 22Kw 33Kw
Woking Pressure 14Mpa 14Mpa 14Mpa 14Mpa 14Mpa 14Mpa 14Mpa
