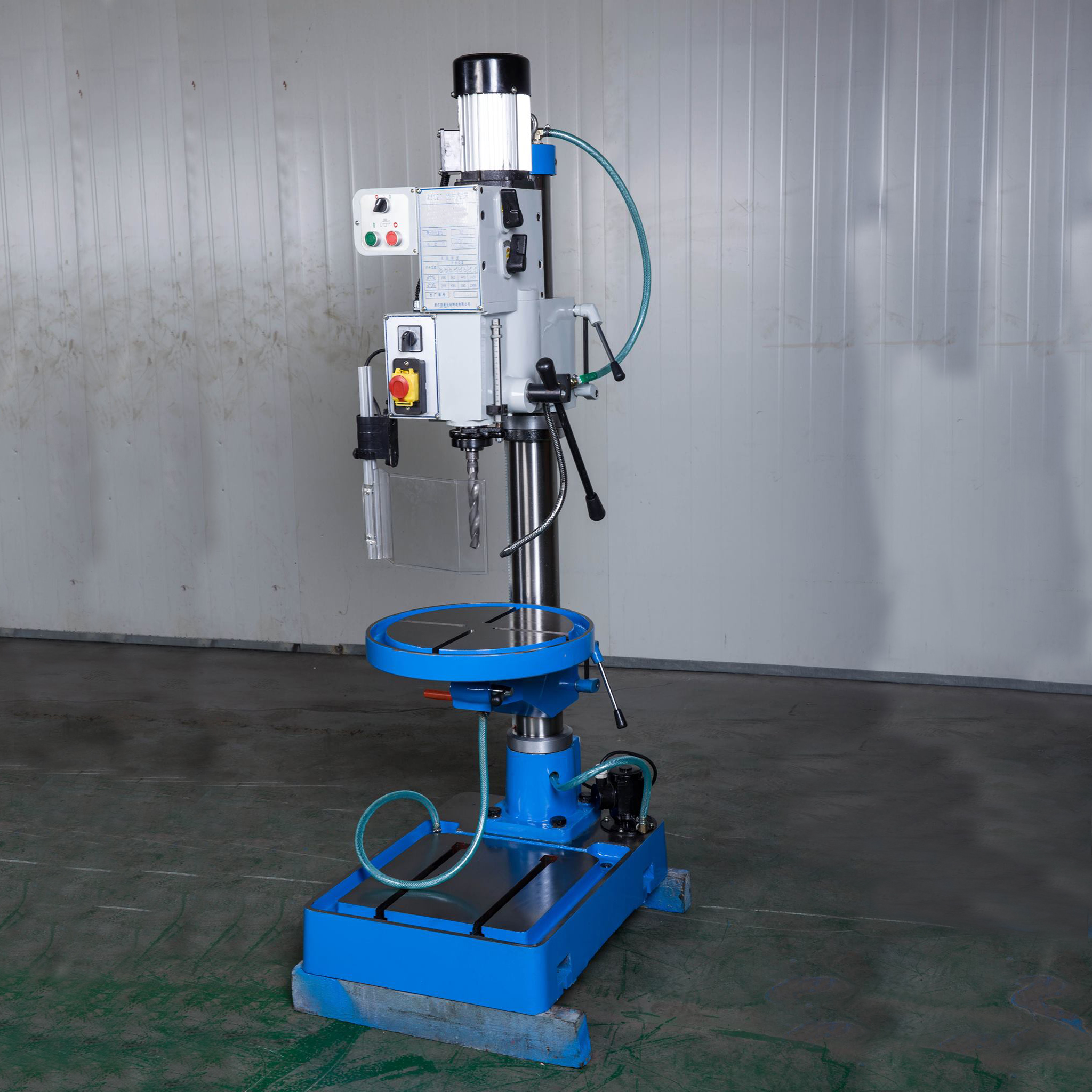

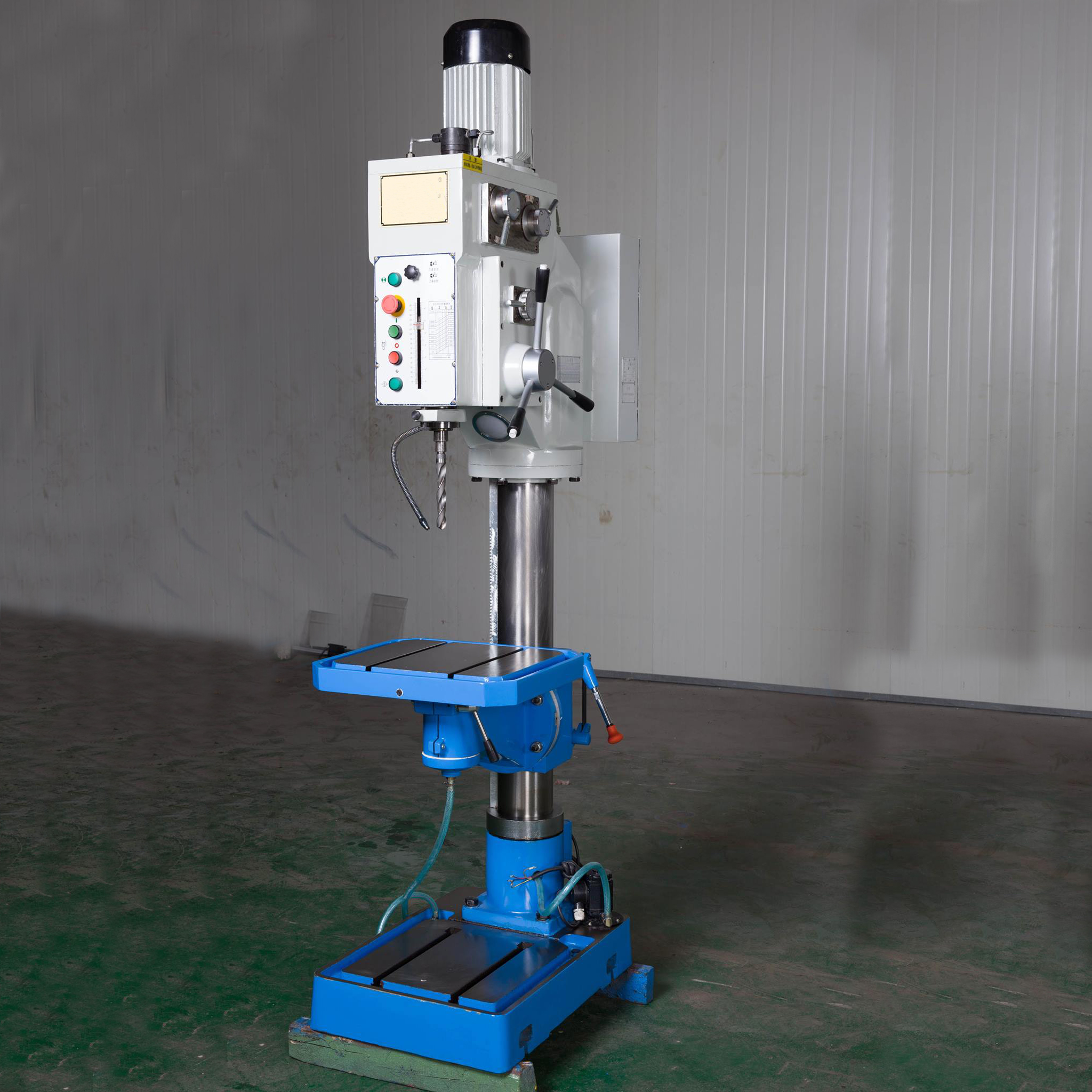

Heavy Duty 50mm Industrial Pillar Drilling Machine

Model Number: AEK-Z50 Series

$6300.00$5900.00
(Reference Price)

Heavy Duty Industrial Pillar Drilling Machine suitable for drilling, reaming, tapping, scraping, etc.

Equipped with a cooling device and work lamp.

High spindle speed, wide speed range, and a unique tool withdrawal device for convenient tool changes.

The fully adjustable worktable can rotate 360° and tilt up to +45°, allowing for precise positioning.

Heavy Duty Industrial Pillar Drilling Key Features:

  • High-Efficiency Two-Speed Motor: Dual-speed options to enhance operational efficiency and superior performance.
  • Cooling System: Prevents overheating, extending continuous working time.
  • Optimized Gear Shifting: Improved structure with a wide speed range for versatile performance.
  • 360° Rotating Worktable: Fully adjustable worktable for precise positioning with 360°.
  • High Spindle Speed & Wide Speed Range: Offers flexibility for various applications, with a unique tool withdrawal device for easy tool changes.
  • Integrated Power Switch: Modern, user-friendly design with easy operation.
  • Spindle Speed Adjustment: Easily adjust spindle speed to suit specific workpiece requirements.
  • Precision Depth Dial: Clear and precise depth measurements for enhanced accuracy.
  • One-Button Emergency Stop: Instantly halts the machine in case of errors to minimize risks.
  • Built-in Coolant Pump: Keeps tools cool during operation, preventing overheating and prolonging tool life.
heavy duty 50 mm industrial multifunctional pillar drilling machine
Heavy Duty 50 mm Industrial Multifunctional Pillar Drilling Machine
drillingreamingtappingscraping
drilling & reaming & tapping & scraping
alekvs heavy duty pillar drill machine
heavy duty pillar drill machine

Heavy Duty 50 mm Industrial Pillar Drilling Machine Features

spindle speed adjustment
spindle speed adjustment
precision depth dial
precision depth dial
one button emergency stop
one button emergency stop
integrated power switch
integrated power switch
high efficiency dual speed motor
high-efficiency dual-speed motor
built in coolant pump
built-in coolant pump
Model AEK-Z5035 AEK-Z5040 AEK-Z5050
Maximum Drilling Capacity 35 mm 40 mm 50 mm
Maximum Tapping Capacity M24 M27 M30
Column Diameter 140 mm 160 mm 180 mm
Spindle Travel 160 mm 180 mm 240 mm
Spindle Axis to Column Generating Line Distance 330 mm 360 mm 360 mm
Maximum Distance Spindle Nose to Table 590 mm 590 mm 570 mm
Maximum Distance Spindle Nose to Base 1180 mm 1180 mm 1160 mm
Spindle Taper MT4 MT4 MT4 or MT5
Spindle Speed Range 75–2500 r/min 42–2050 r/min 42–2050 r/min
Spindle Speed Series 12 12 12
Spindle Feed Rate 0.1 / 0.2 / 0.3 mm 0.07 / 0.15 / 0.3 mm 0.07 / 0.15 / 0.3 mm
Worktable Surface Dimensions 500 × 440 mm 550 × 470 mm 550 × 470 mm
Table Travel 550 mm 550 mm 550 mm
Base Dimensions 400 × 390 mm 450 × 440 mm 450 × 440 mm
Overall Height 2300 mm 2330 mm 2380 mm
Motor Power 1500 / 2200 W 2200 / 2800 W 2200 / 2800 W
Coolant Motor Power 40 W 40 W 40 W
Gross / Net Weight 595 / 545 kg 815 / 755 kg 1045 / 985 kg
Packing Dimensions 108 × 62 × 220 cm 108 × 62 × 245 cm 108 × 62 × 245 cm



Model AEK-Z5025 AEK-Z5025-B AEK-Z5030
Maximum Drilling Capacity 25 mm 25 mm 30 mm
Maximum Tapping Capacity M20
Column Diameter 100 mm 100 mm 120 mm
Spindle Travel 150 mm 150 mm 135 mm
Distance Spindle Axis to Column Generating Line 225 mm 225 mm 320 mm
Maximum Distance Spindle Nose to Table 630 mm 550 mm
Maximum Distance Spindle Nose to Base 1070 mm 550 mm 1100 mm
Spindle Taper MT3 MT3 MT3
Spindle Speed Range 100–2900 r/min 100–2900 r/min 65–2600 r/min
Spindle Speed Series 8 8 12
Spindle Feed Rate 0.1 / 0.2 / 0.3 mm/r
Worktable Surface Dimensions Φ440 mm 500 × 440 mm
Table Travel 560 mm 560 mm 490 mm
Base Dimensions 690 × 500 mm 690 × 500 mm 400 × 390 mm
Overall Height 1900 mm 1390 mm 2050 mm
Motor Power 750 / 1100 W 750 / 1100 W 850 / 1100 W
Coolant Motor Power 40 W 40 W 40 W
Gross / Net Weight 300 / 290 kg 235 / 225 kg 495 / 450 kg
Packing Dimensions 70 × 56 × 182 cm 78 × 52 × 117 cm 108 × 62 × 215 cm
