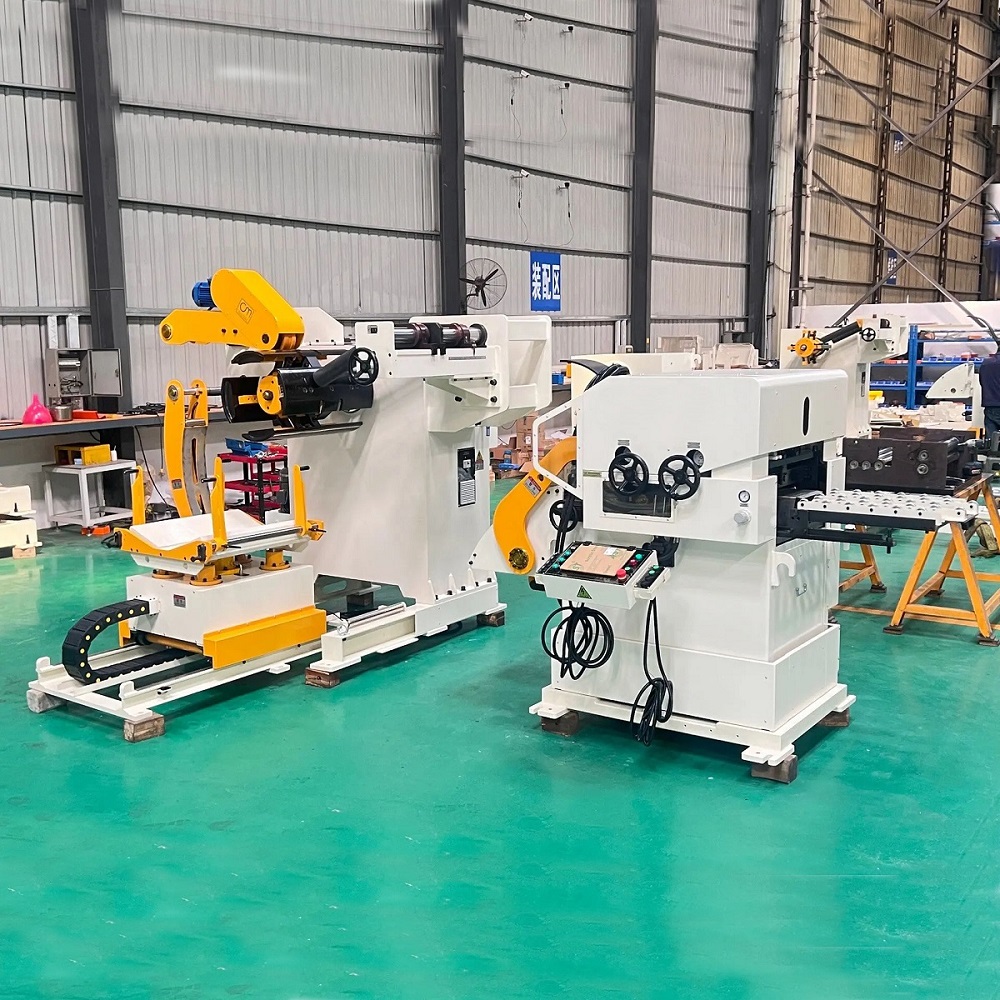

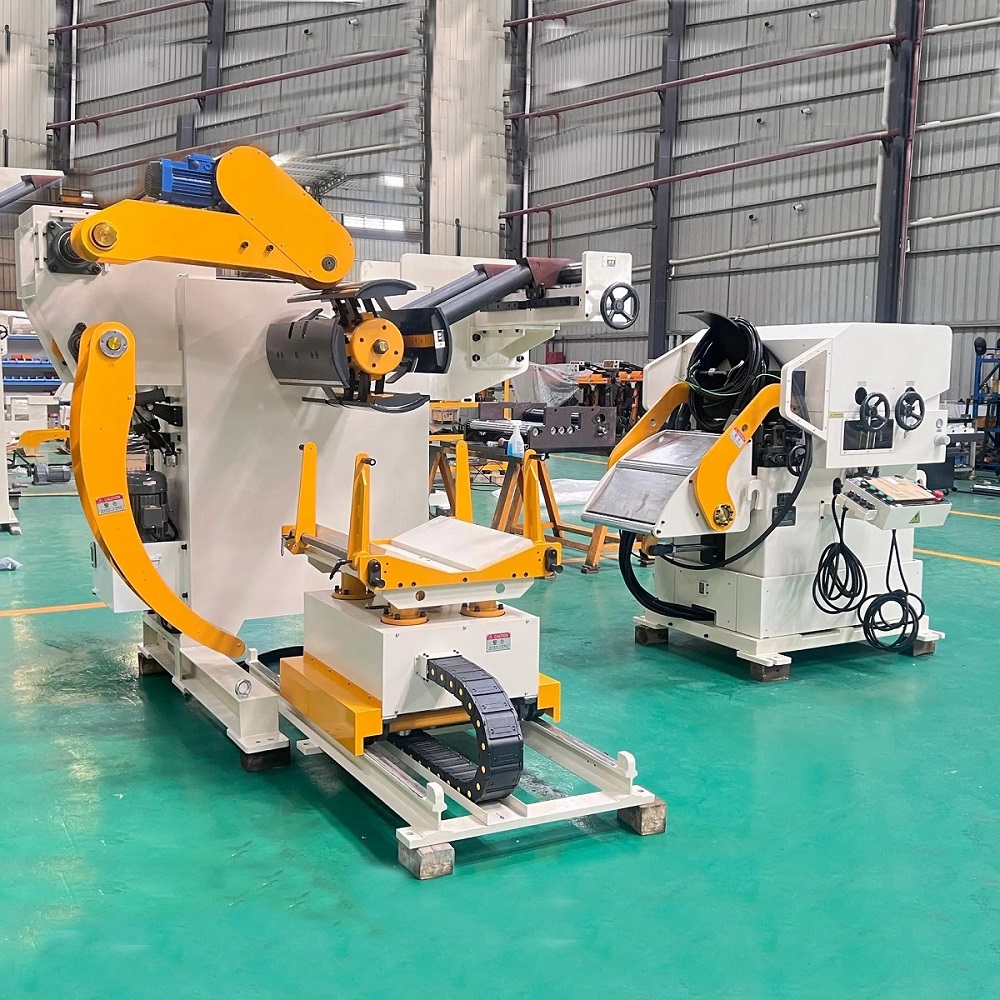

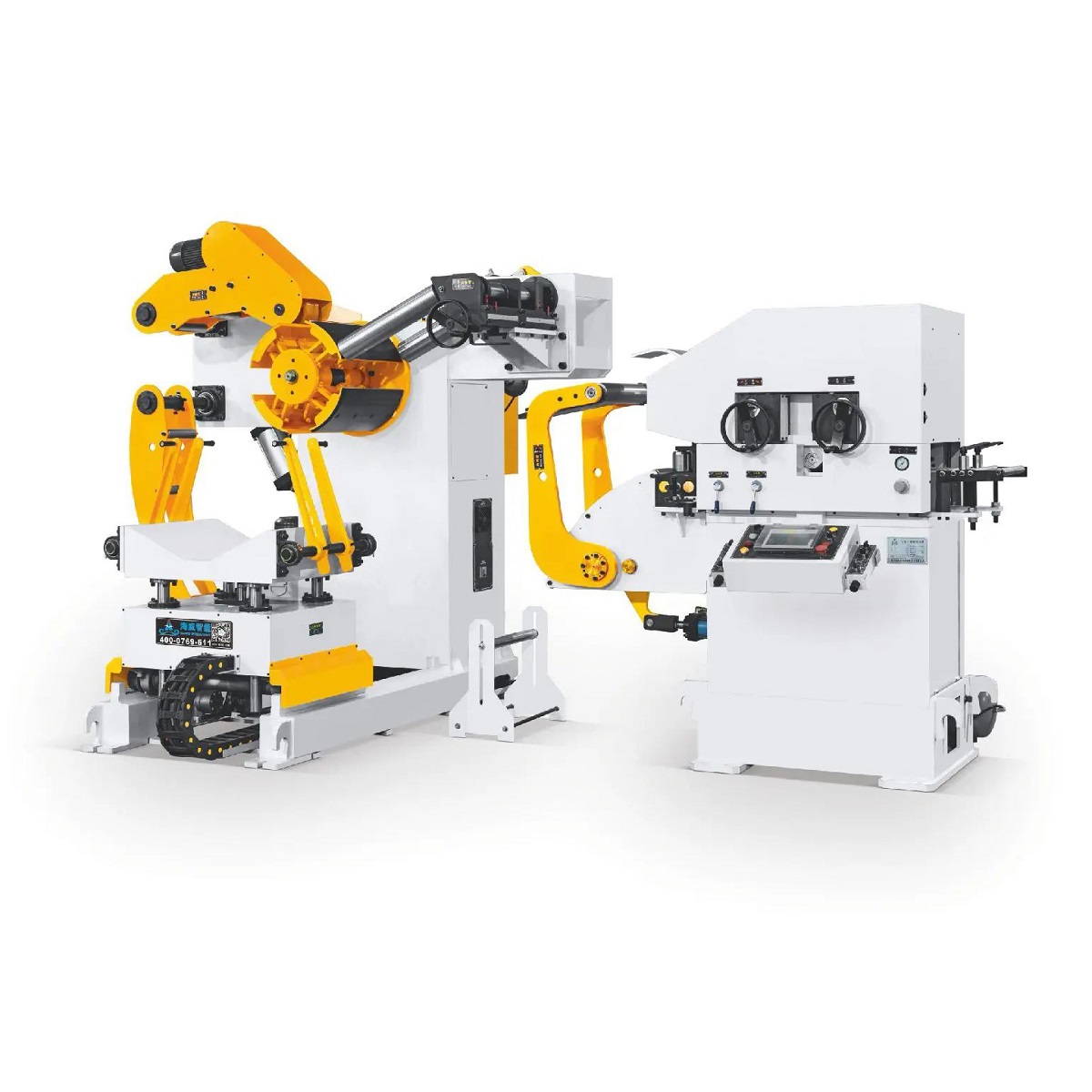

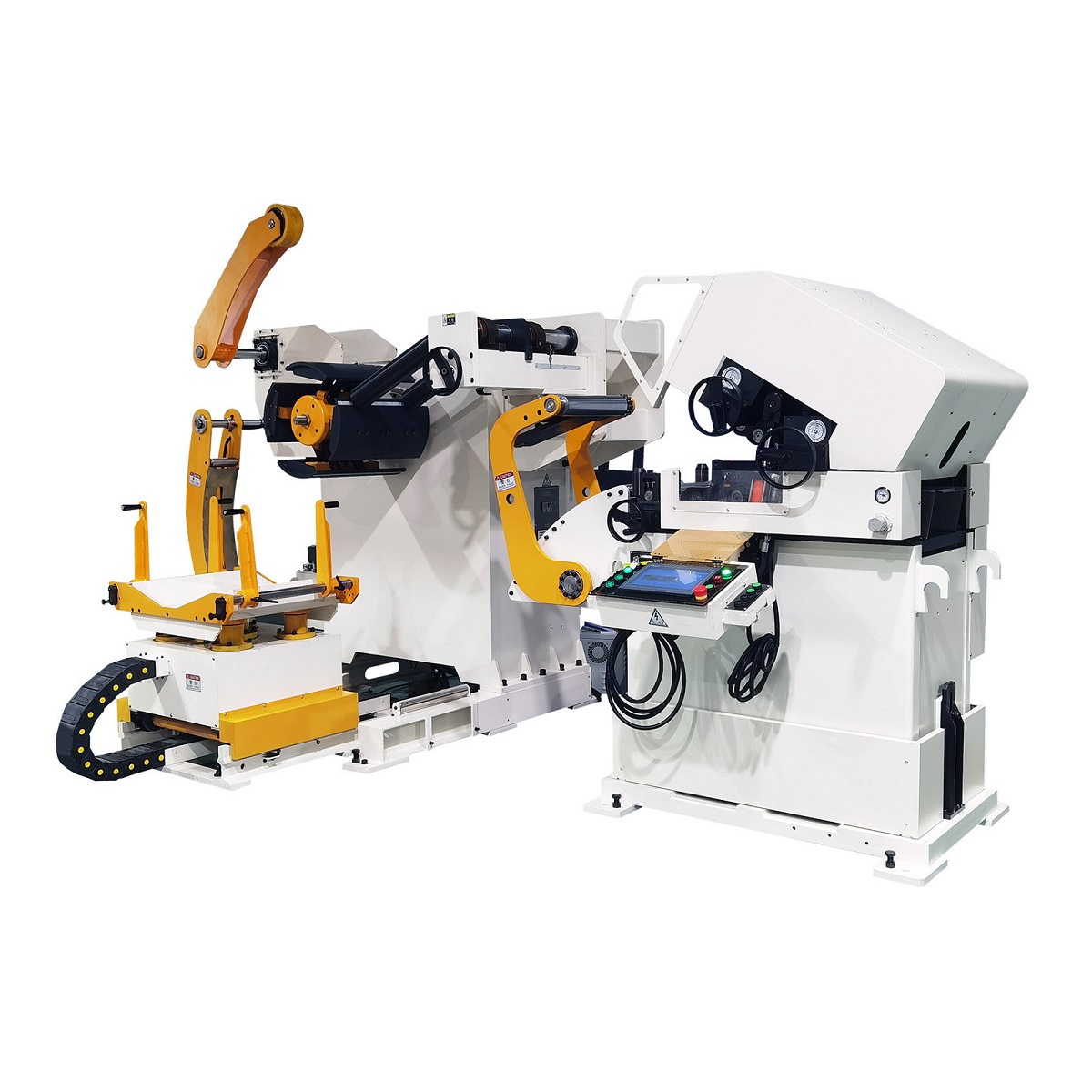

Uncoiler Straightener & Feeder System 3 in 1 (0.5mm–4.5mm)

Integrated 3-in-1 System Components

• Uncoiler: Equipped with hydraulic expansion, press arms, and a position limit arm to keep the coil stable and secure. A hydraulic cart assists in precise coil positioning.
• Leveler: Seamlessly integrated with the uncoiling process to prevent leveling errors and ensure high accuracy.
• Feeder: Numerical position adjustment, automatic lubrication, and hydraulic expansion enhance automation and reduce labor costs.

Main Features of the 3-in-1 Uncoiler, Straightener & Feeder

• Space Efficiency: Compact design requires just 4.5–6m of space, maximizing floor usage and safety.

• Advanced Uncoiler:

  • Hydraulic Expansion: Ensures secure coil positioning.

  • Mandrel Construction: Adjustable high-precision plates for stable output.

  • Material Alignment: Width scale bar ensures accurate positioning.

• High-Precision Straightening:

  • Guide Rollers: Adjust for smooth feeding.

  • Straightener Outlet: Precision rollers ensure smooth transfer.

• Intelligent Controller: User-friendly touchscreen for easy control of speed, size, and settings.

• Powerful Hydraulic System: AC motor and cooling system provide consistent power and pressure.

AEK 3 in 1 Uncoiler, Straightener & Feeder – Schematic

Why Choose AEK NC2?

• Optimized Production Efficiency – Integrated uncoiling, straightening, and feeding reduces material handling time and minimizes errors.
• Precision & Stability – High-accuracy straightening with ≤0.2mm feeding precision ensures superior product quality.
• Strong & Versatile – Handles coil weights up to 7000kg with hydraulic expansion (800B & 1000B models).
• Smart Control – Adjustable speed up to 20m/min, powerful AC motors, and left-to-right material flow for seamless operation.
