CNC 2-Roller Plate Rolling Machine

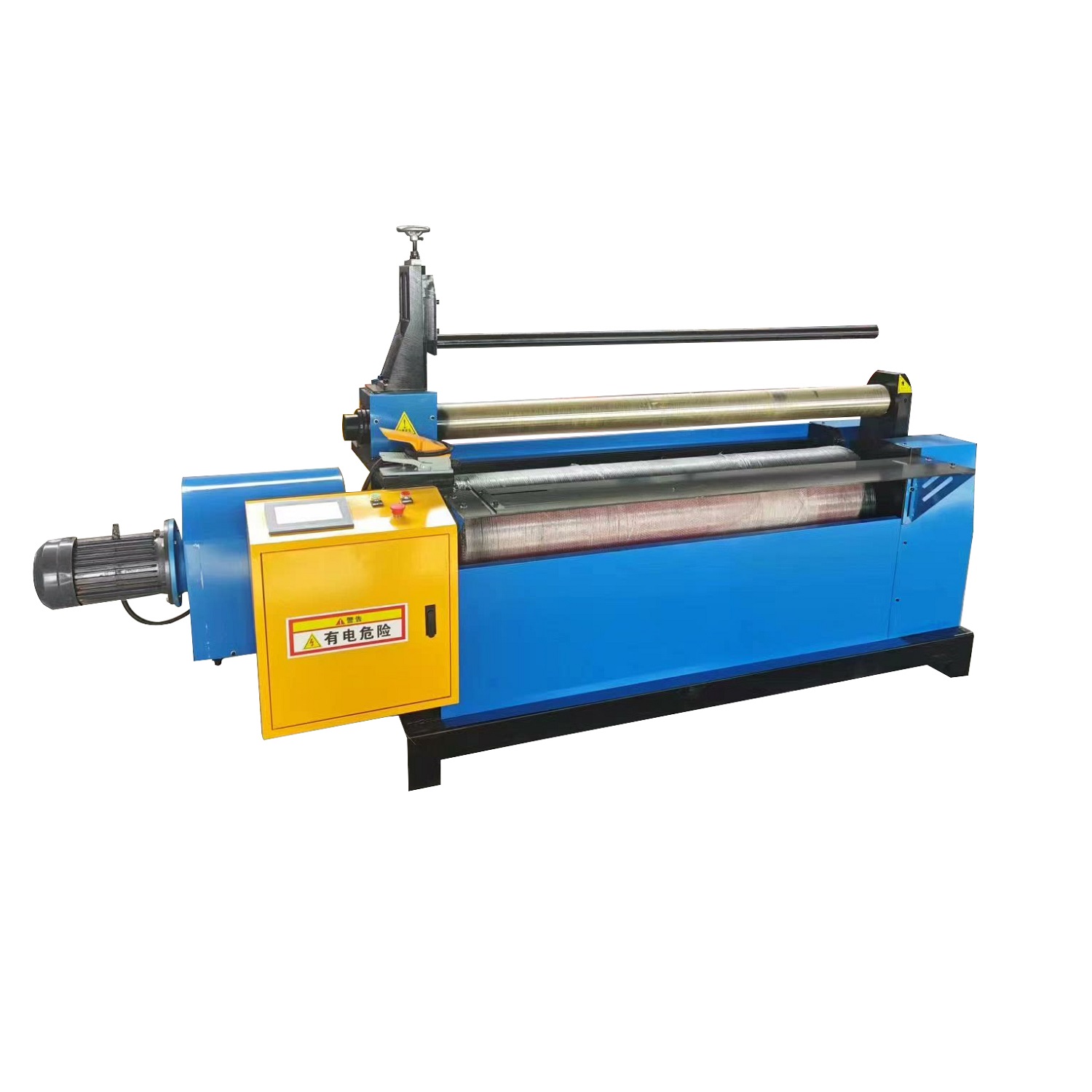

cnc 2 roller plate rolling machine for steel sheet bending img3

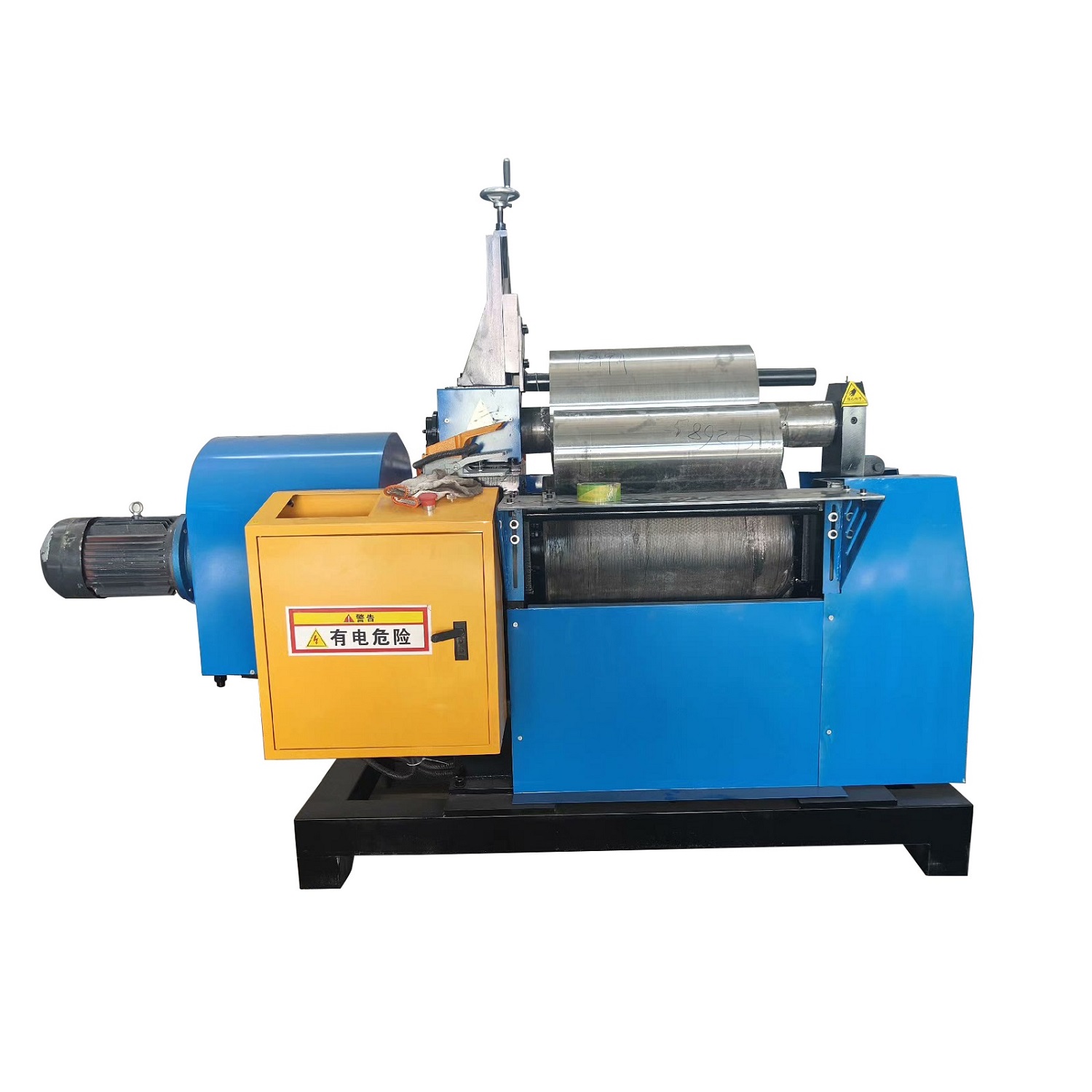

cnc 2 roller plate rolling machine for steel sheet bending img1

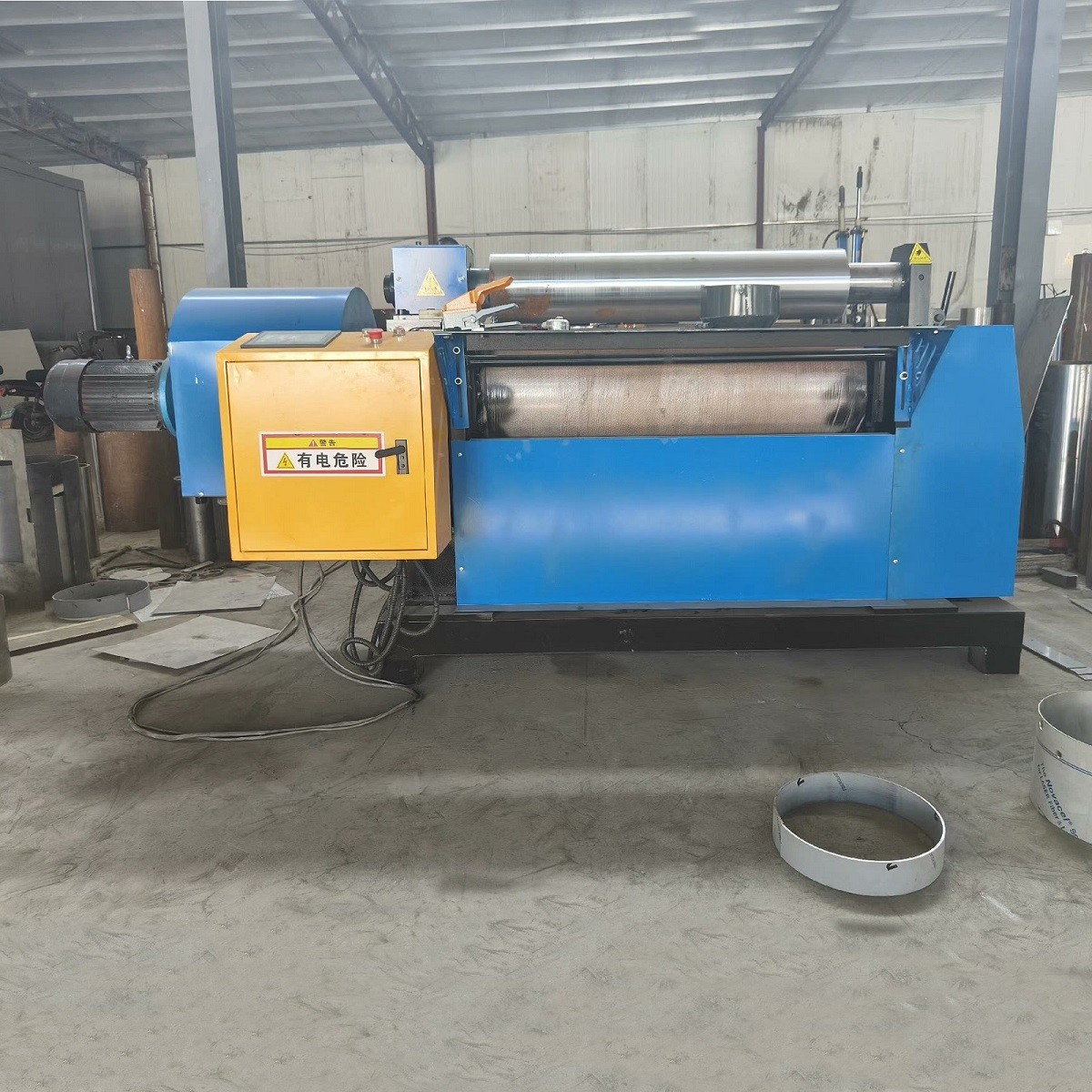

cnc 2 roller plate rolling machine for steel sheet bending img2

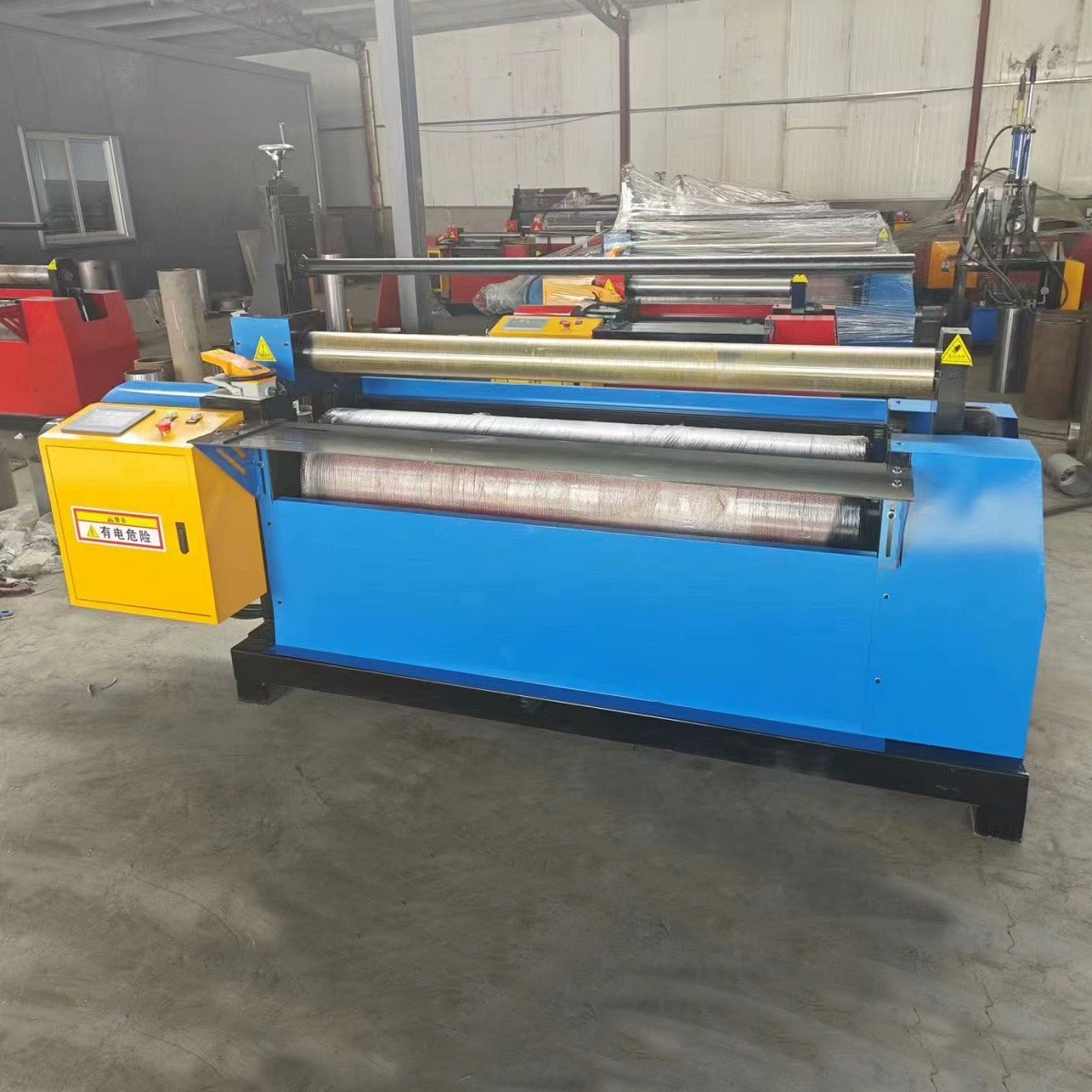

cnc 2 roller plate rolling machine for steel sheet bending img4
cnc 2 roller plate rolling machine for steel sheet bending img3
cnc 2 roller plate rolling machine for steel sheet bending img1
cnc 2 roller plate rolling machine for steel sheet bending img2
cnc 2 roller plate rolling machine for steel sheet bending img4

Model Number: AEK-W13 Series

$3300.00$3100.00
(Reference Price)

The CNC 2-Roller Plate Rolling Machine features one rigid roll and one flexible urethane roll. A servo motor drives the flexible roll to press against the rigid roll, causing it to deform and bend the material into the desired shape.

The flexible roll design ensures no abrasion on the plate surface, making the machine particularly well-suited for processing stainless steel.

Key Features:

  • Plate Thickness: Suitable for plates from 0.8 to 4 mm (¹/₃₂ to ³/₁₆ in.)
  • Plate Width: Accommodates widths from 500 to 1500 mm (20 in. to 5 ft.)
  • Bending Diameter: Capable of bending as small as 90 mm (3.54 in.)
Send Inquiry Now

Featured videos

2 Roller Plate Rolling Machine for Iron and Steel Video

2 Roller Plate Rolling Machine for Iron and Steel

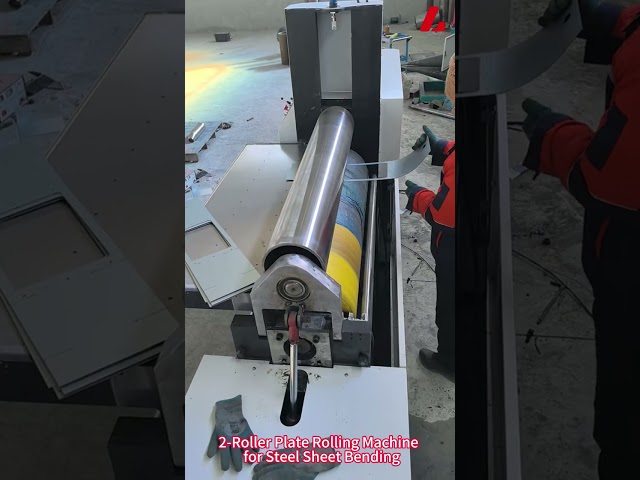

CNC 2-Roller Plate Rolling Machine for Steel Sheet Bending Video

CNC 2-Roller Plate Rolling Machine for Steel Sheet Bending

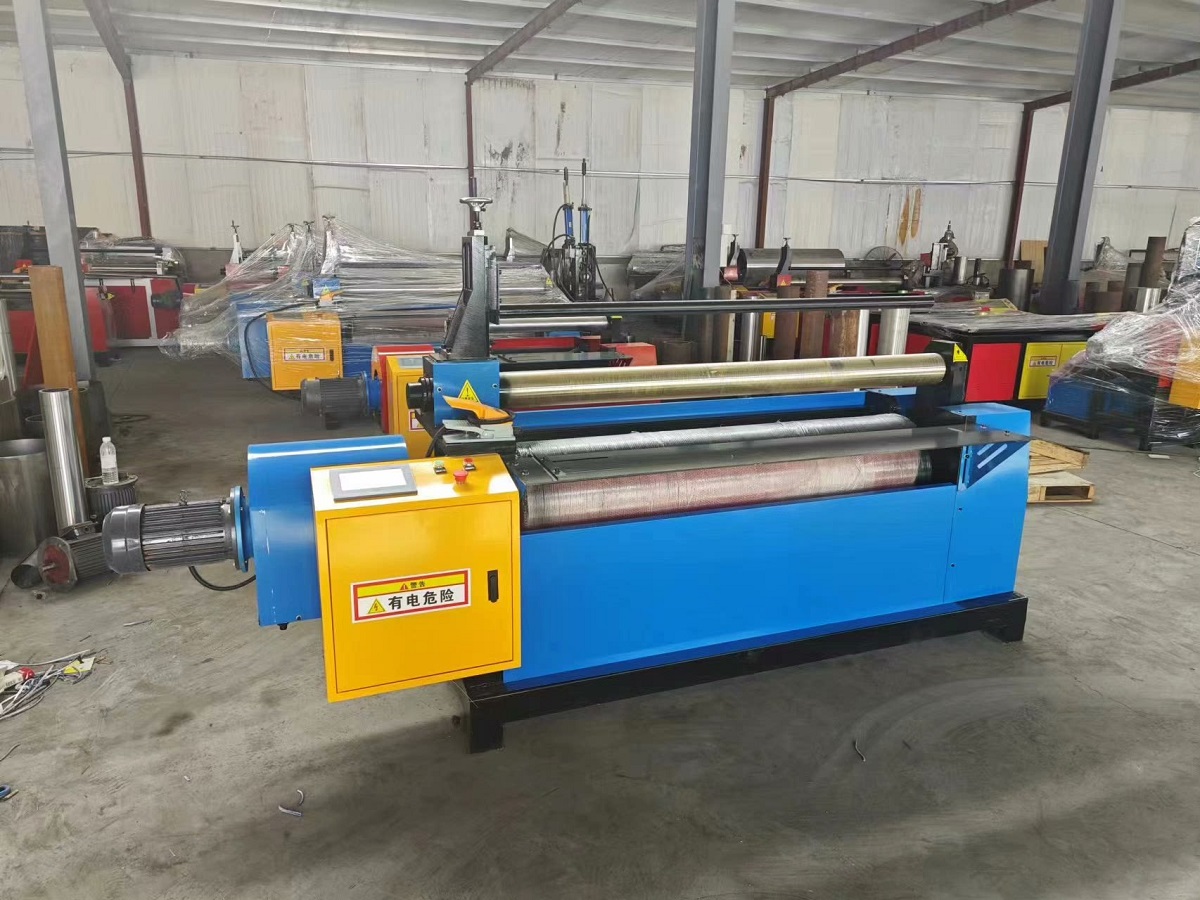

cnc 2 roller steel sheet bending machine

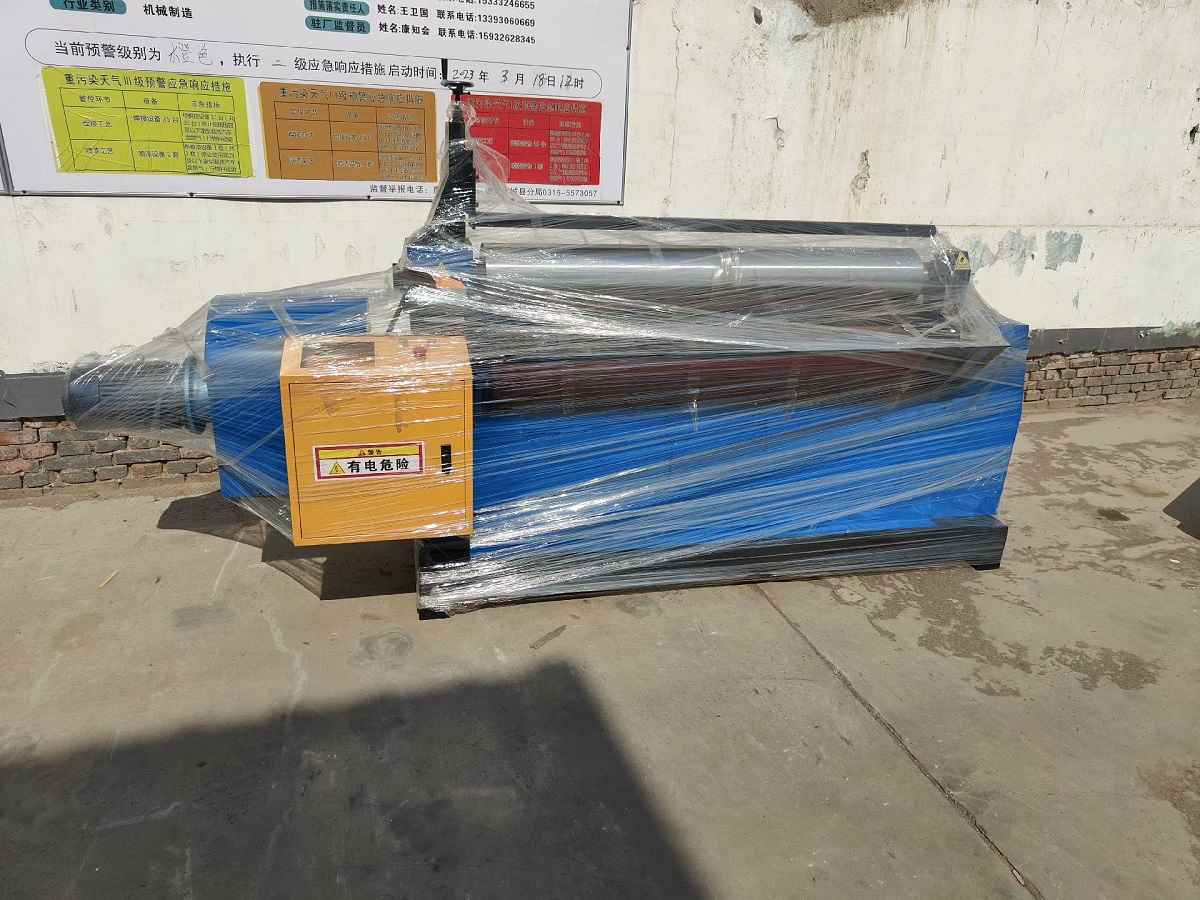

automatic 2 roller cnc plate rolling machine for small metal sheets

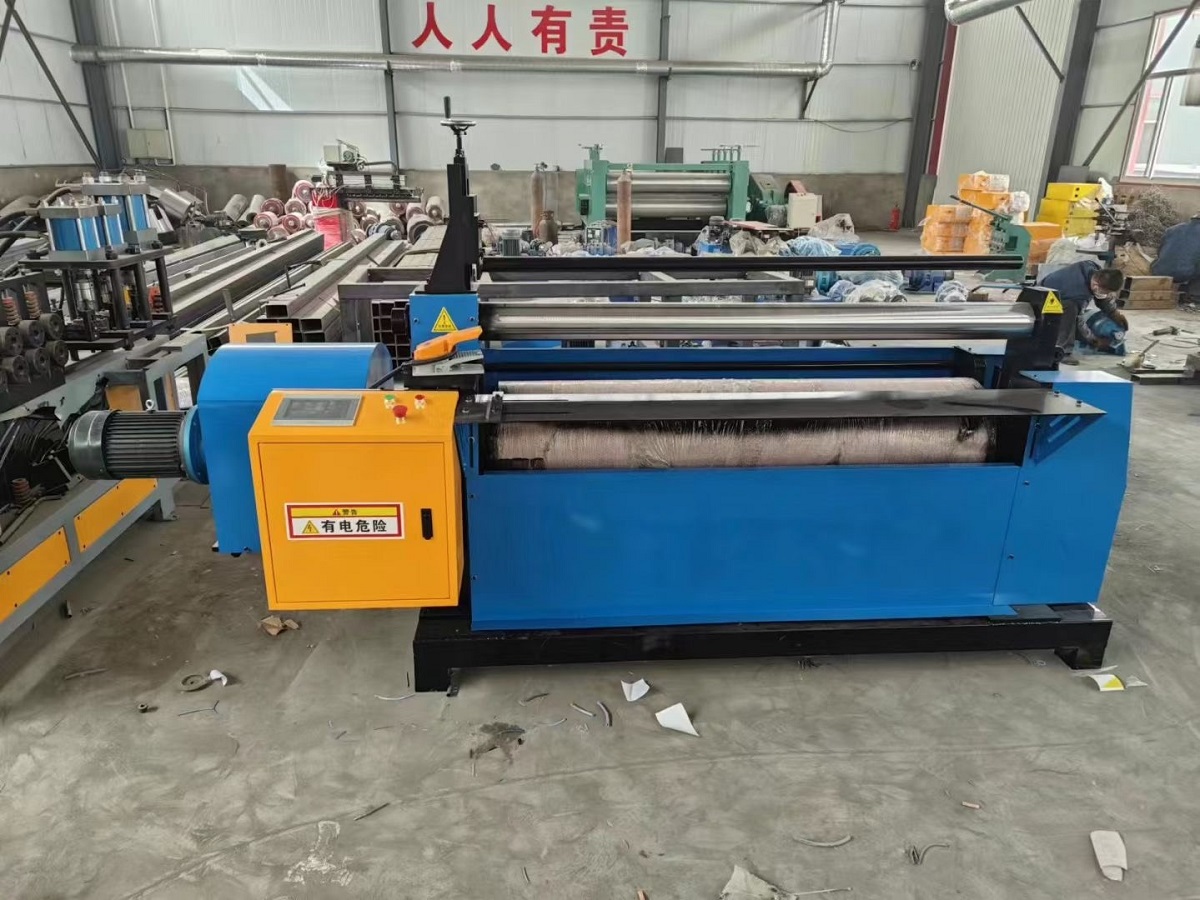

2 roller cnc plate rolling machine for steel sheets

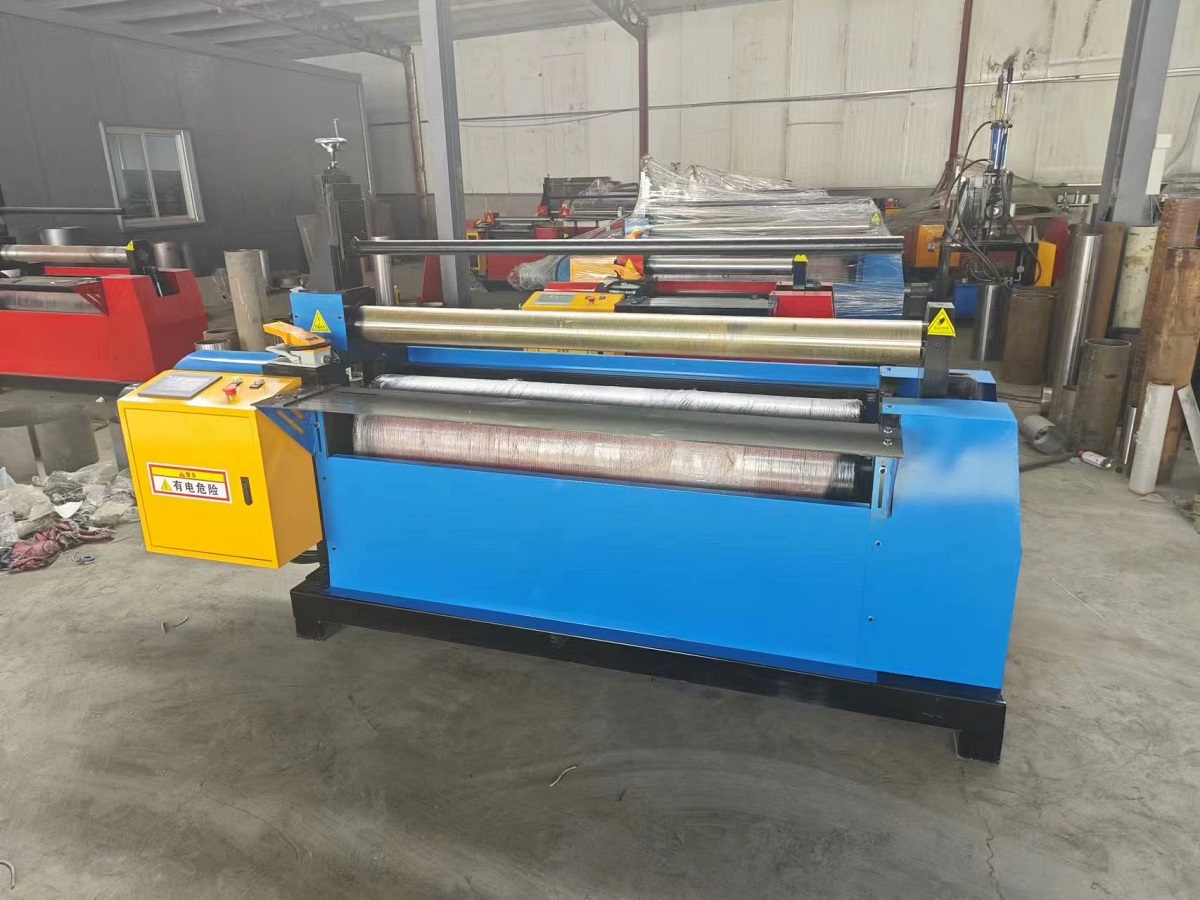

cnc 2 roller plate rolling machine with polyurethane rubber roller

CNC 2-Roller Plate Rolling Machine – Key Features:

  • Smooth Operation: Hydraulic adjustment of the lower roll ensures smooth movement, stable pressure, and consistent distance between rolls, maintaining uniform deformation throughout the bending process.
  • No Edge Flattening: The lower roll is coated with urethane, preventing edge flattening and eliminating the need for pressing heads, a common issue in traditional plate rolls.

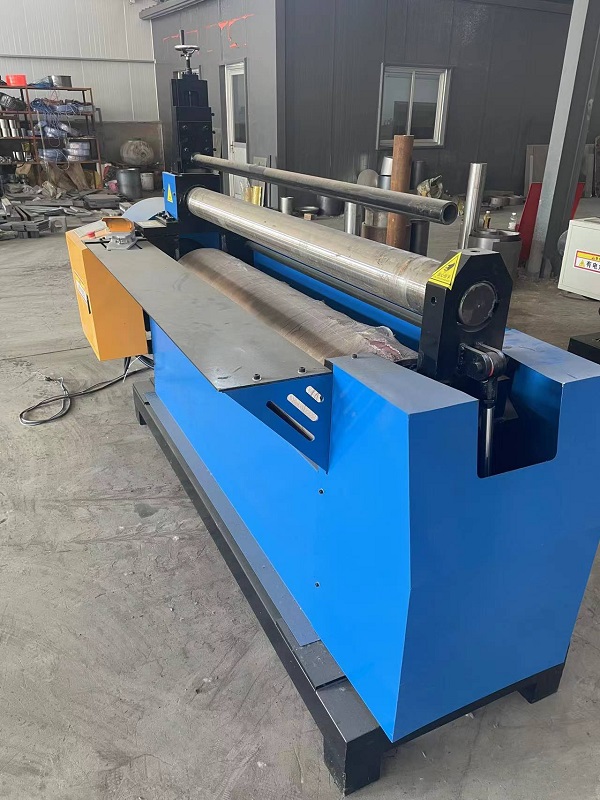

2 roller stainless steel plate rolling machine

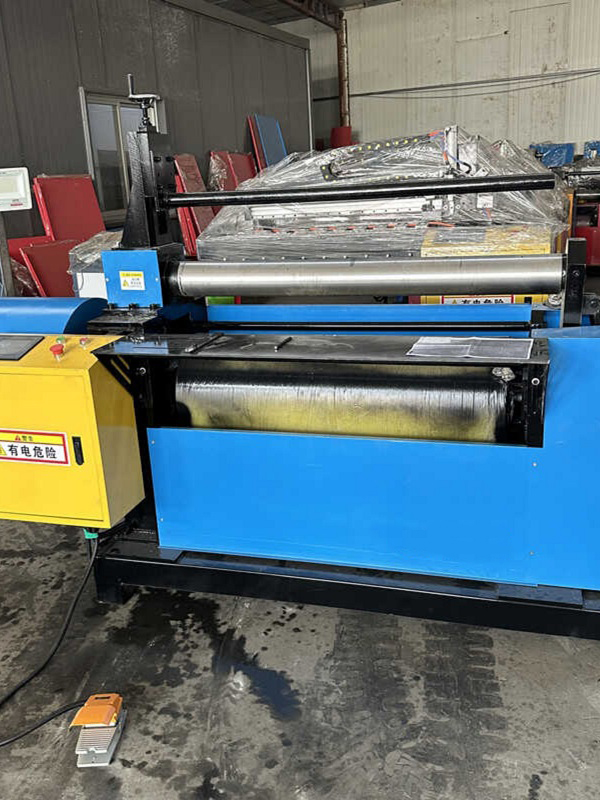

cnc 2 roller plate rolling machine for steel sheet bending 2

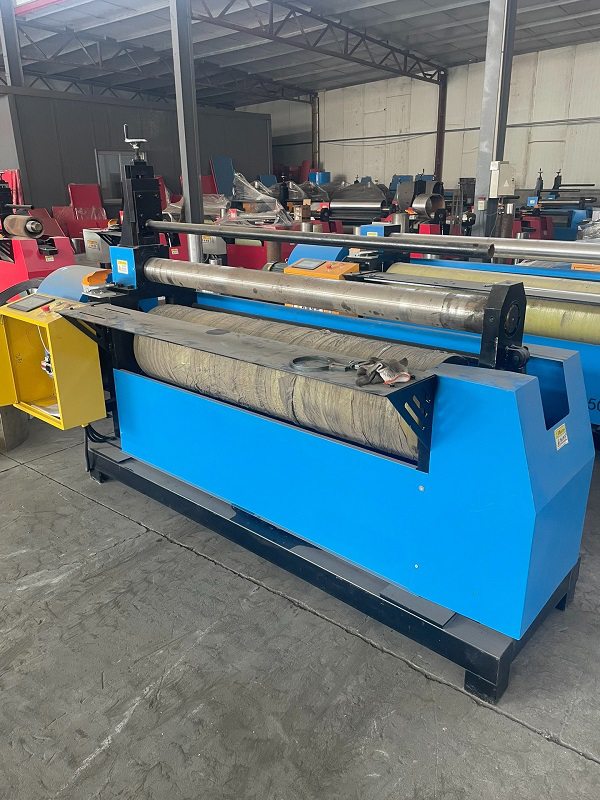

cnc 2 roller mechanical plate rolling machine for metal sheets 2

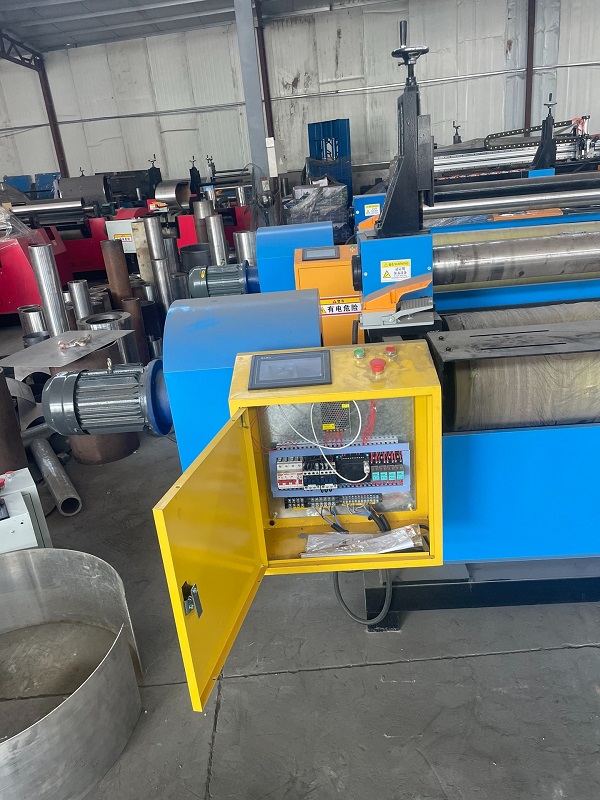

plc electrical cabinet 2

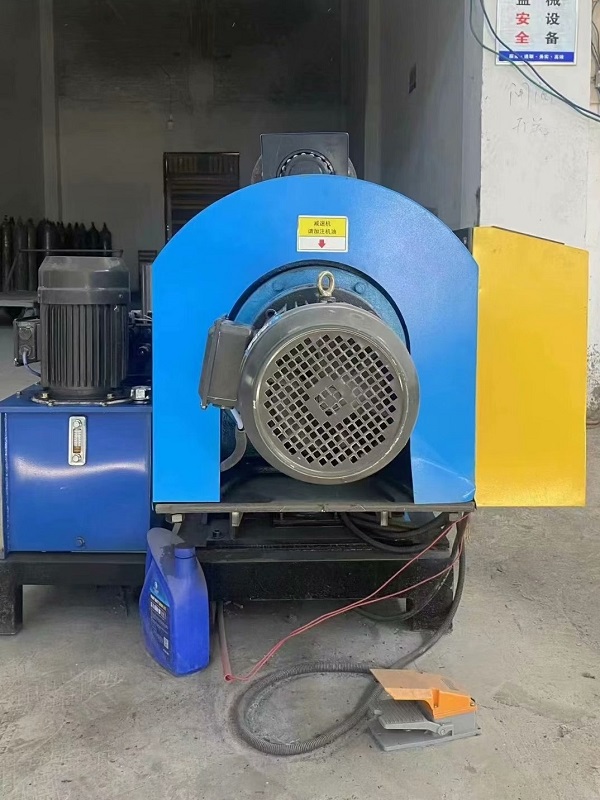

famous brand motor 3

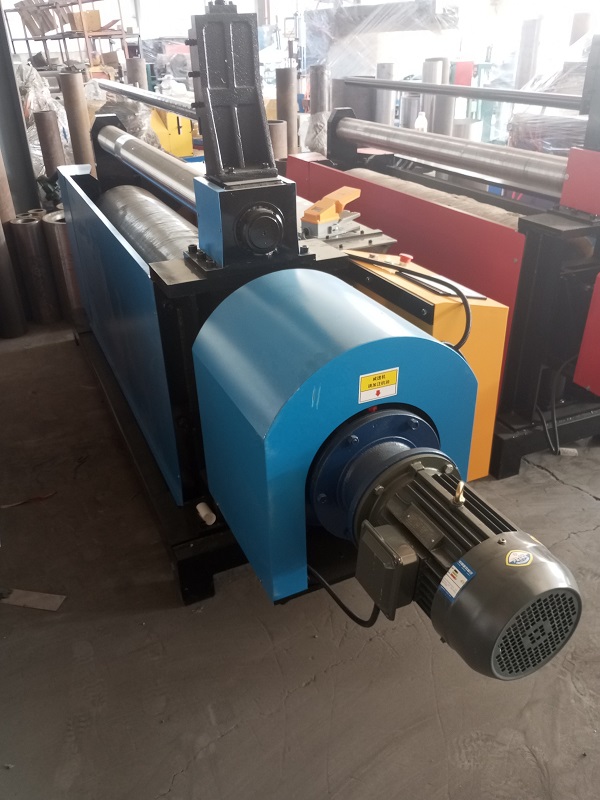

famous brand motor 1

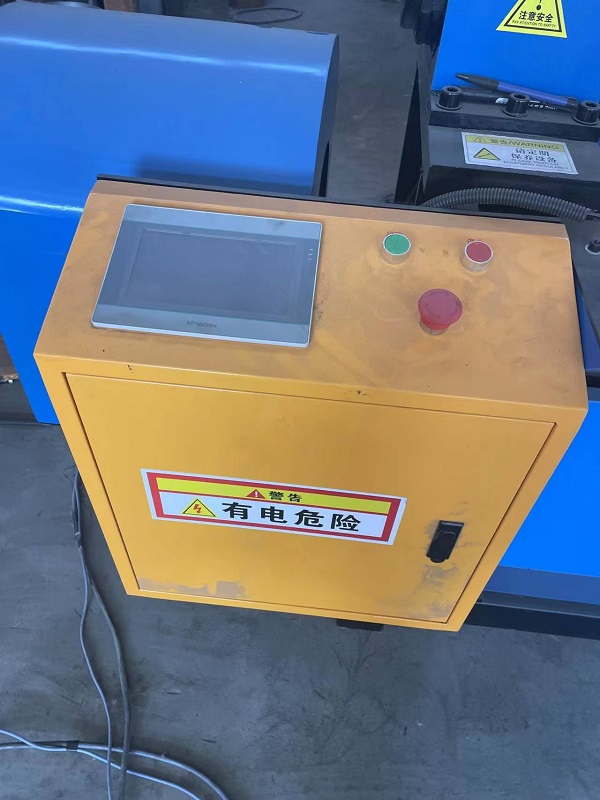

plc electrical cabinet 1

2-Roller Plate Rolling Machine-OEM

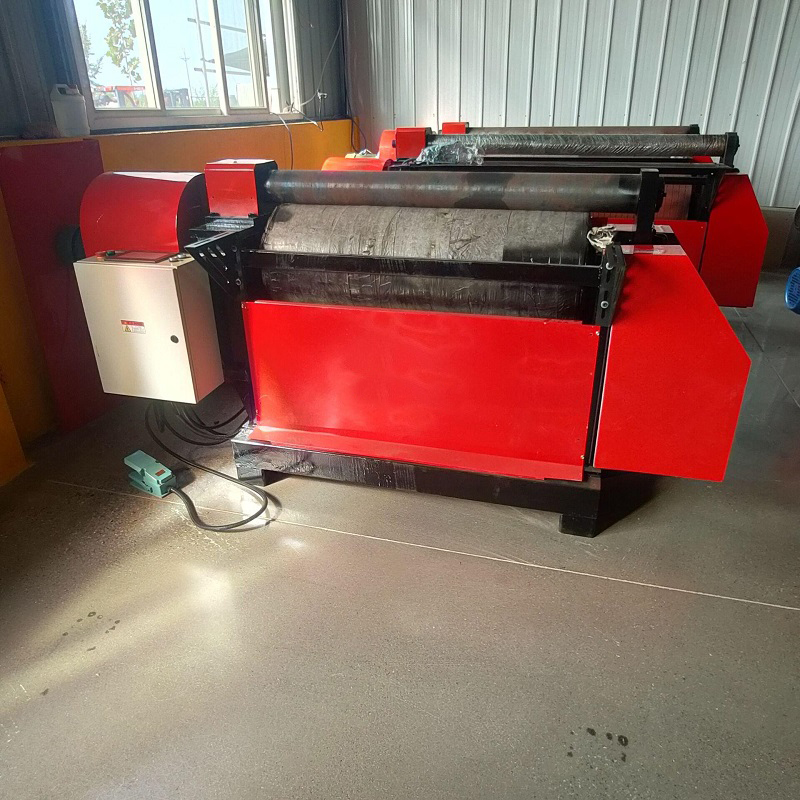

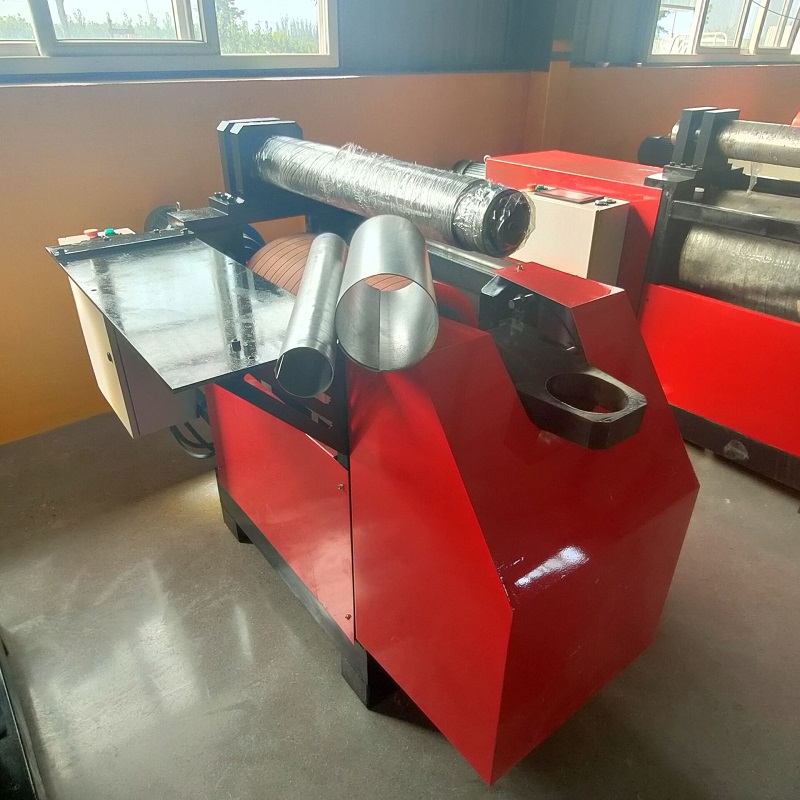

oem 2 roller steel plate bending machine 1

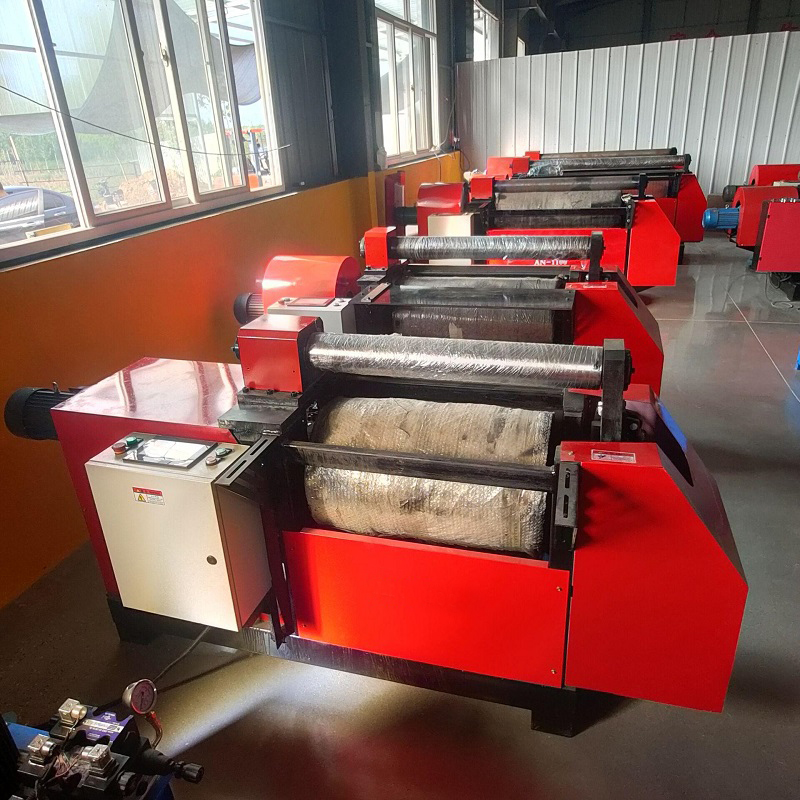

oem 2 roller steel plate bending machine 3
oem 2 roller steel plate bending machine

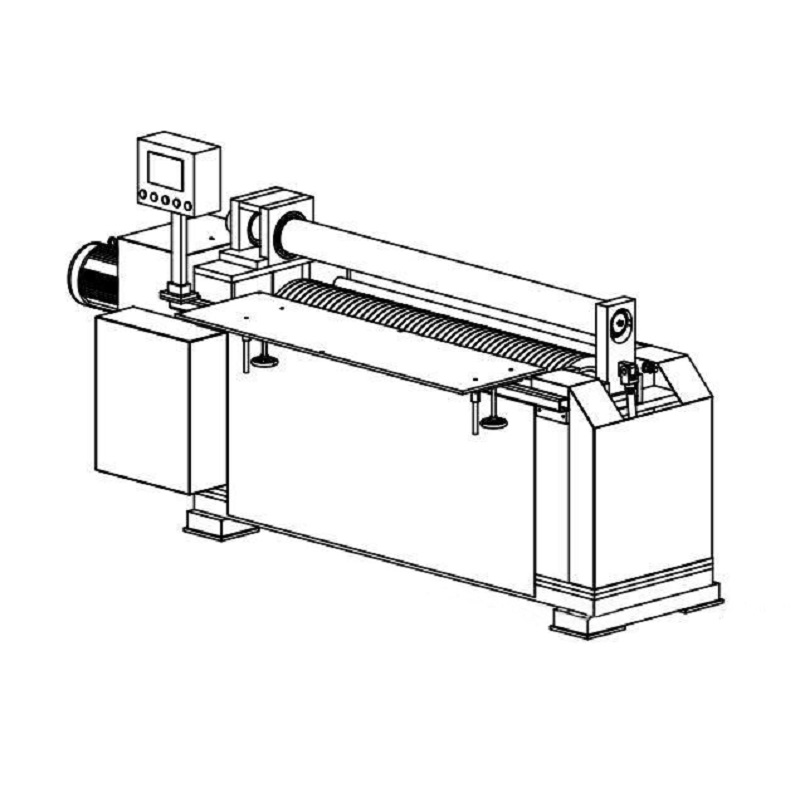

cnc 2 roller mechanical plate rolling machine structure diagram

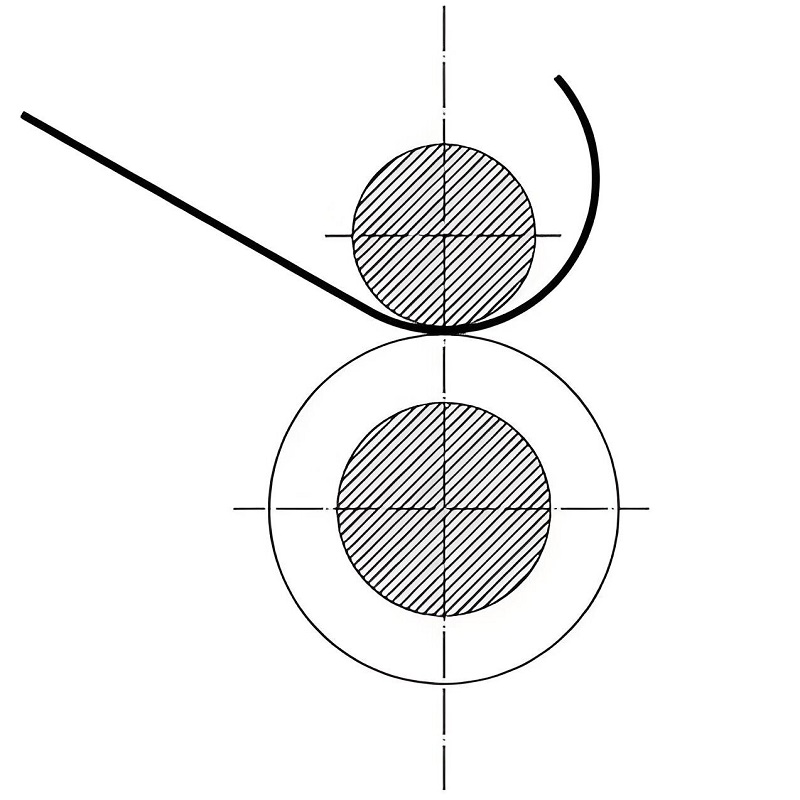

cnc 2 roller mechanical plate rolling machine roller pressing diagram

Upgraded disc rolling machine

2-Roller CNC Plate Rolling Machine- Applications:

Ideal for manufacturing parts for HVAC-R systems, filters, exhaust systems, small tanks, fire extinguishers, and LPG gas tanks.

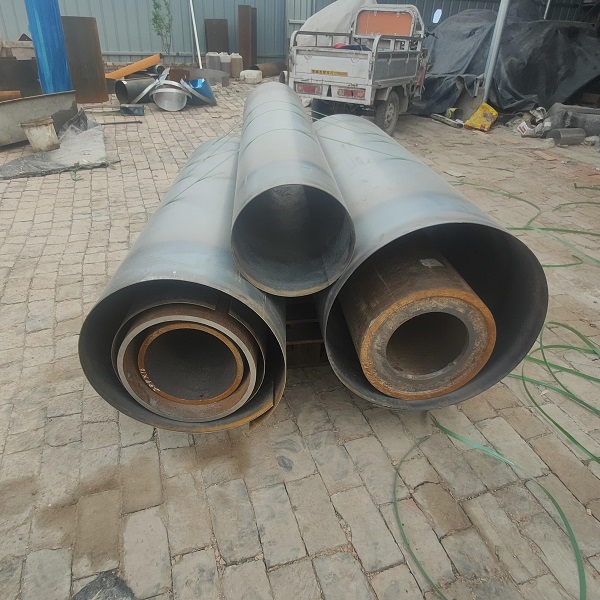

large ventilation ducts

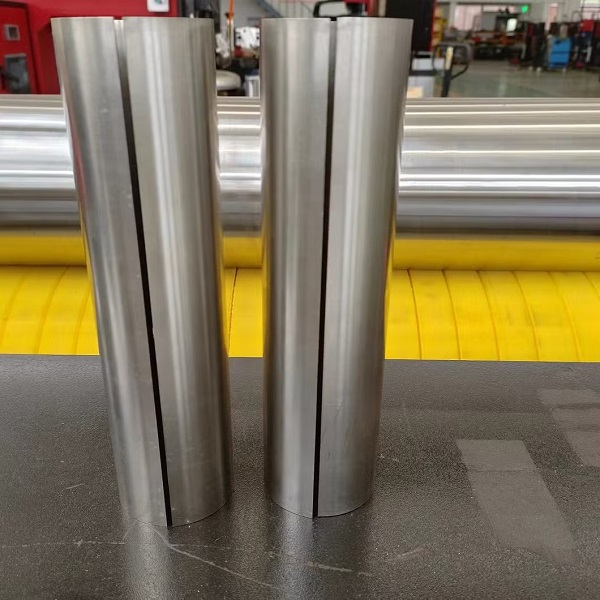

stainless steel roll

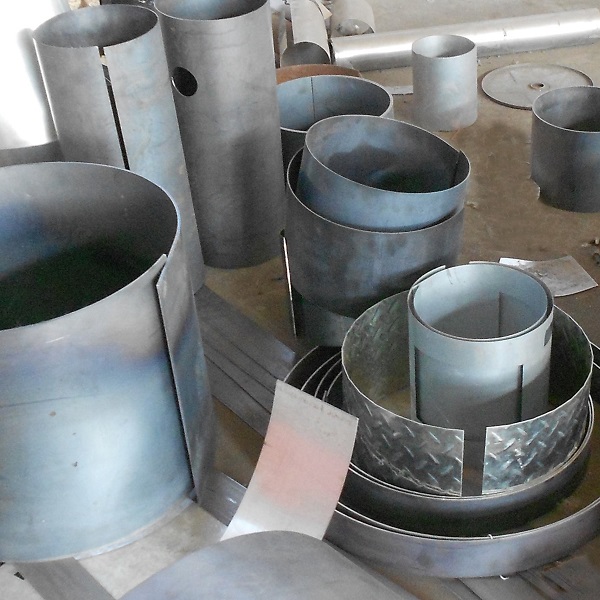

iron roll
Model No. AEK-W13-500 AEK-W13-700 AEK-W13-1000 AEK-W13-1500 AEK-W13G-500 AEK-W13G-700 AEK-W13G-1000 AEK-W13G-1500
Rated power (KW) 3 3 6 6 6 6 7.7 7.7
Hydraulic system adjustment range(MPA) 3-8 3-8 4-12 4-12 4-12 4-12 5-16 5-16
Workpiece thickness(MM) 0.8-2.5 0.8-2.5 0.8-3.5 0.8-3.5 0.8-6 0.8-6 0.8-6 0.8-4
Workpiece diameter(MM) 90-300 100-300 150-450 200-450 100-450 100-450 200-600 200-600
Workpiece length(MM) 50-500 50-700 50-1000 50-1500 100-500 100-700 100-1000 100-1500
