Bench Drill Press (25mm) | ALEKVS Industrial bench drill

Model Number: AEK-Z4125D

$1380.00$1200.00
(Reference Price)

ALEKVS Drill Machine’s maximum drilling diameter reaches 25mm, which is suitable for various drilling requirements. It is equipped with a 280mm x 300mm worktable that supports 360° rotation, allowing flexible angle adjustment.

The ideal choice for single-piece and small-batch production, perfect for drilling, counterboring, tapping screws, spot facing, and other machining tasks.

Powered by an 1100W motor, it supports speed adjustments ranging from 365 to 3150 r/min.

Vertical Type Column Industrial Bench Drill

Suitable for various metal materials such as stainless steel, aluminum alloy, copper, and iron, it enables efficient drilling operations, making it an ideal drilling equipment for small to medium-sized workshops and factories.

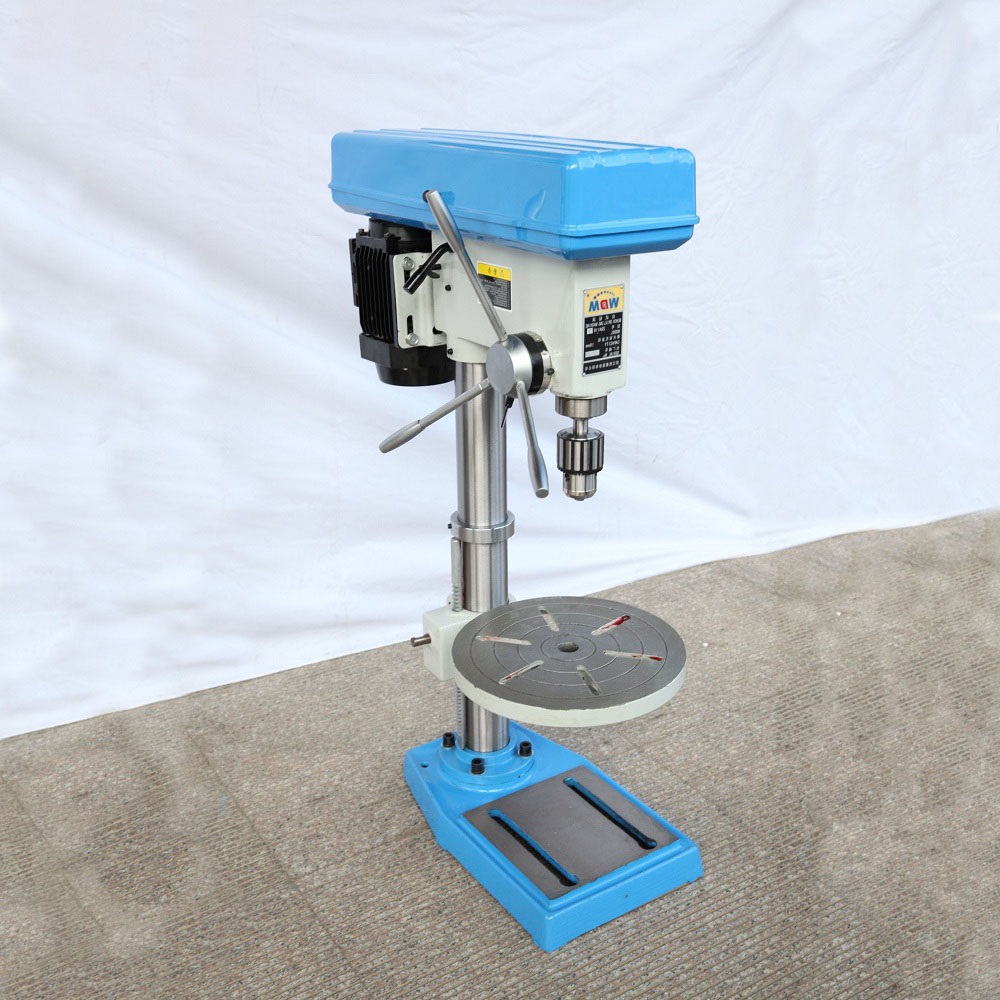

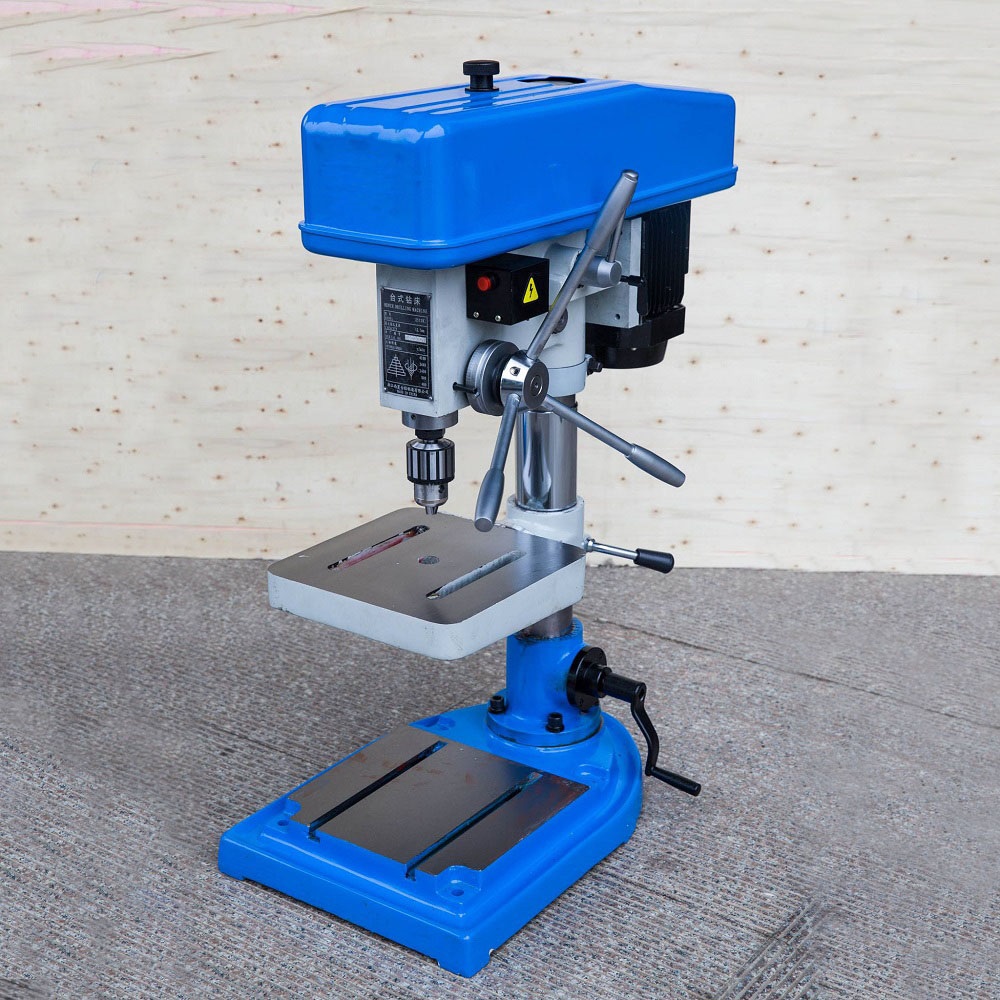

pillar drill press for metal drilling 1
pillar drill press for metal drilling
pillar drill press machine metal drilling details4
pillar drill press machine metal drilling details3
pillar drill press machine metal drilling details2
pillar drill press machine metal drilling details

Advantages

  • High-Power Copper-Core Motor: High-purity copper wire, durable, fast speed, low power consumption, and quick heat dissipation.
  • Balanced Pulley System: Ensures stable rotation, reduces vibration and operates quietly.
  • Full Steel Extended Handle: Extended operating rod, labor-saving, and durable for easier operation.
  • High-Quality Cast Iron Main Frame: Thickened cast iron, high-pressure resistance, reduces vibration, and enhances stability.
  • LED Work Light: High-brightness LED light to illuminate the work area for precise operation.
  • Waterproof Switch: Safe waterproof design to prevent moisture and dust from entering.
  • Rotating Worktable: 360° rotation to accommodate various drilling needs.
  • Precision Grinding Drill Chuck: Improves drilling accuracy, ensuring each hole is precise and consistent.
  • Precise Depth Scale: Adjustable depth scale for accurate depth control.
  • Heavy Duty Base: Precision-ground, heavy-duty base providing excellent stability and strong anti-vibration performance.

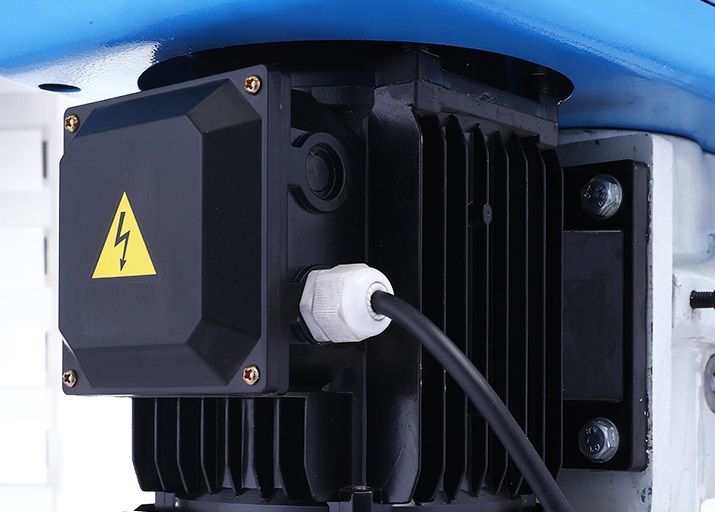

high power copper core motor
High-power copper core motor

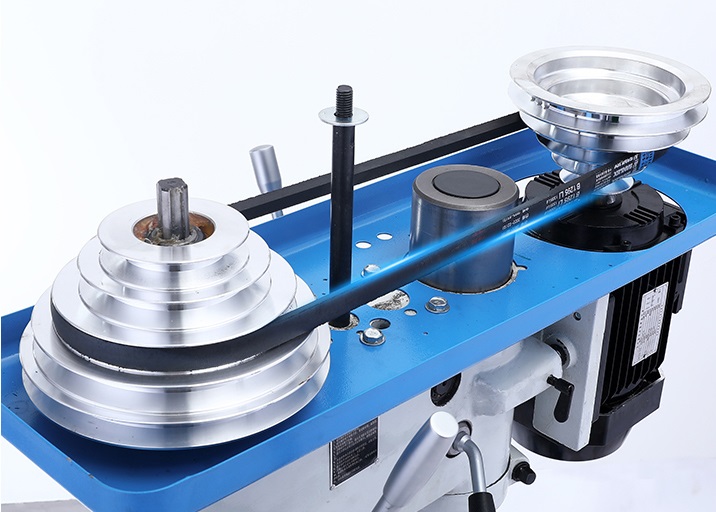

balanced pulley system
balanced pulley system

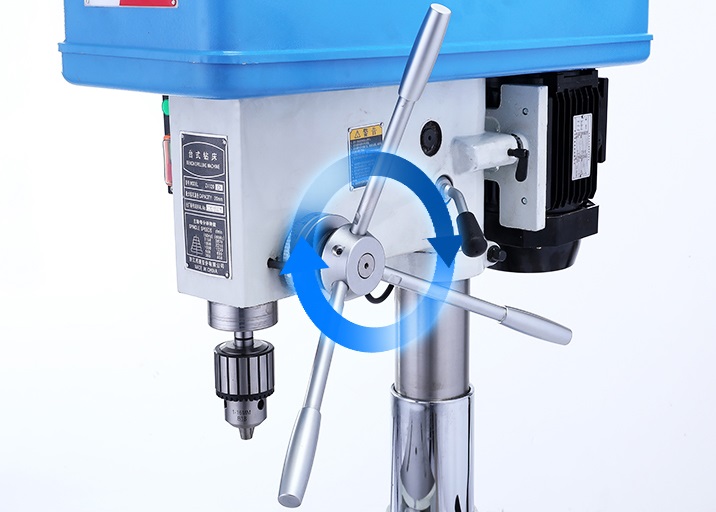

full steel extended handle
full steel extended handle

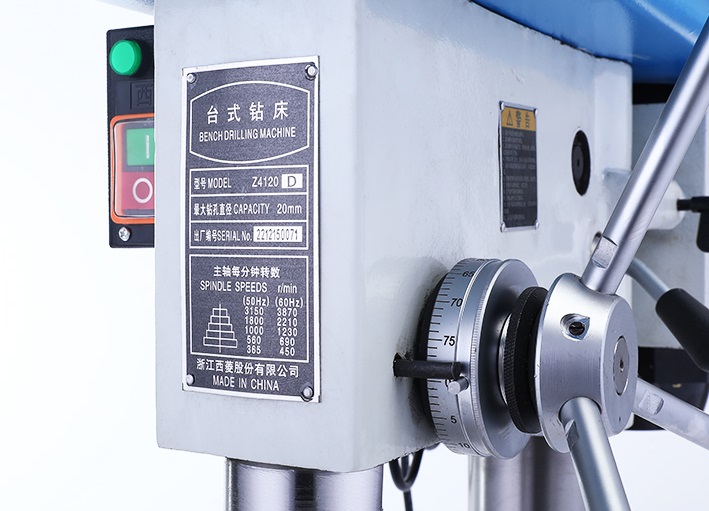

high quality cast iron main frame
high quality cast iron main frame

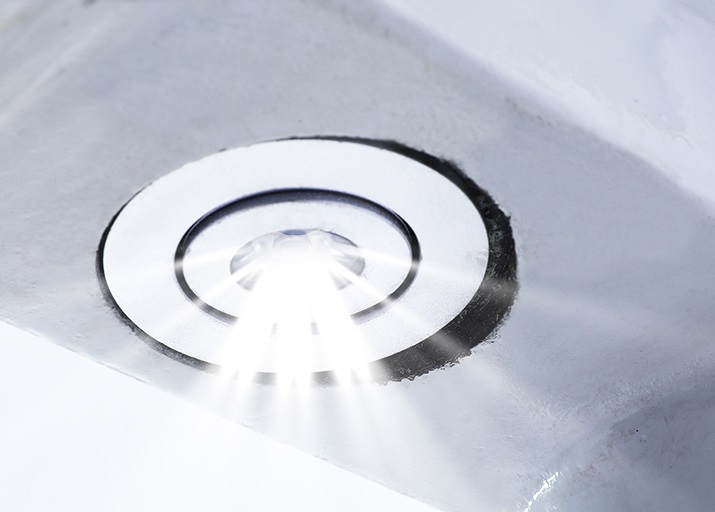

led work light
LED Work Light

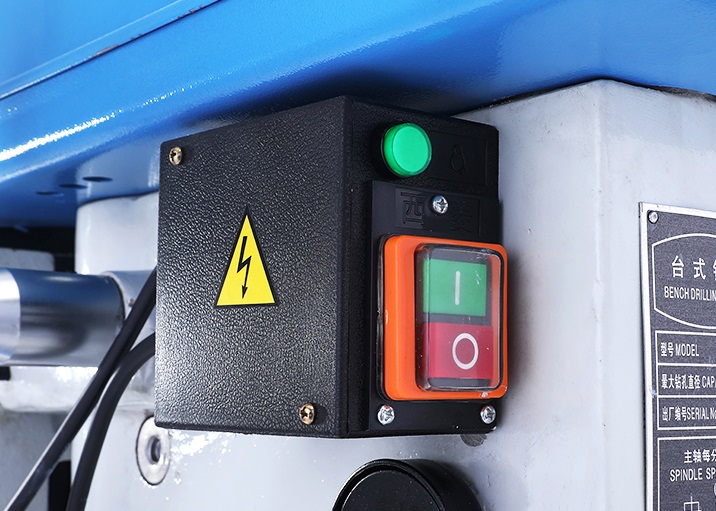

waterproof switch 2
waterproof switch

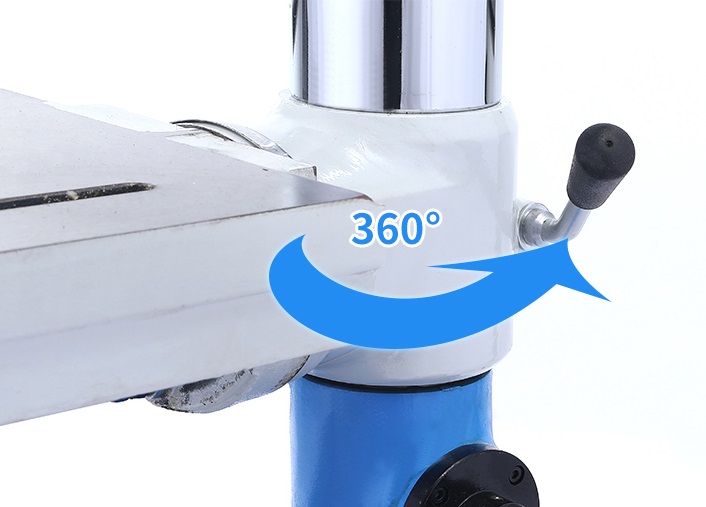

rotating worktable 360
Rotating Worktable 360°

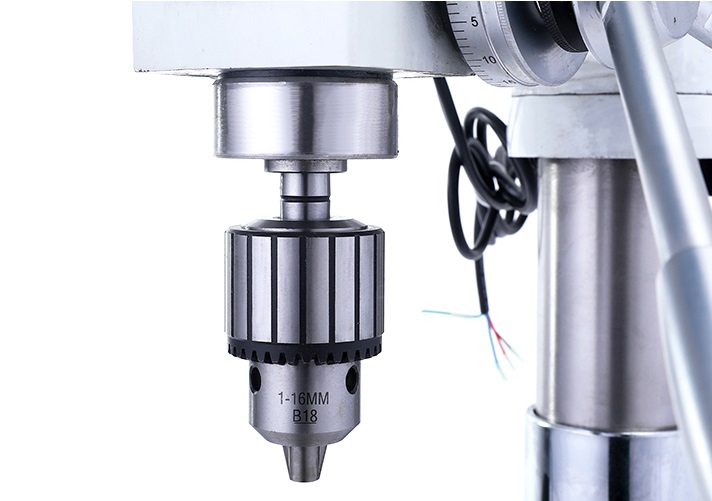

precision grinding drill chuck
precision grinding drill chuck

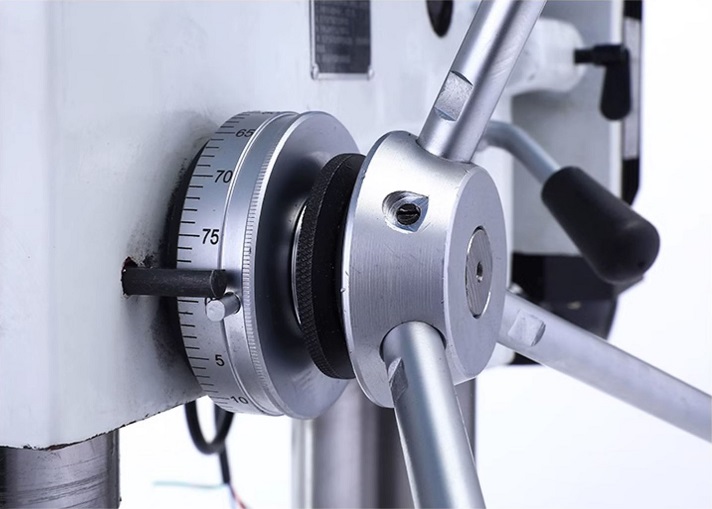

precise depth scale
Precise Depth Scale

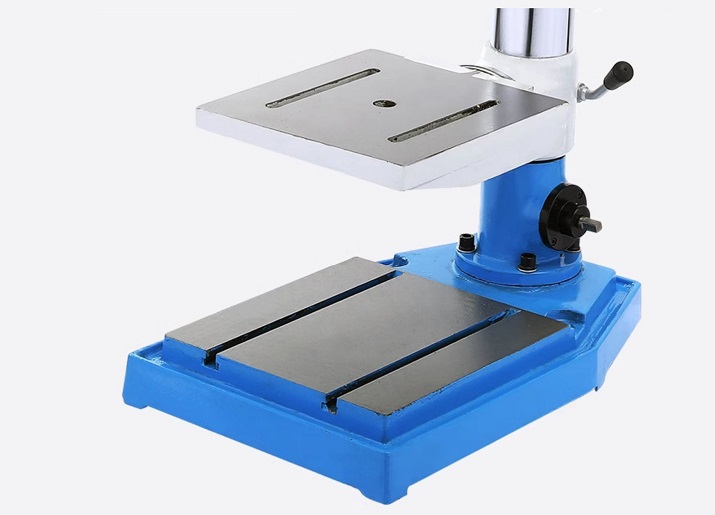

heavy duty base
heavy duty base

Technical Specifications

Model AEK-Z4120D AEK-Z4125D
Maximum Drilling Diameter 20 mm 25 mm
Column Diameter 85 mm 85 mm
Maximum Spindle Stroke 125 mm 125 mm
Distance from Spindle Center to Column Centerline 240 mm 240 mm
Maximum Distance from Spindle End to Worktable 367 mm 367 mm
Maximum Distance from Spindle End to Base 630 mm 630 mm
Spindle Taper MT2 MT3
Spindle Speed Range 365~3150 r/min 365~3150 r/min
Number of Spindle Speed Levels 5 5
Worktable Size 280×300 mm 280×300 mm
Base Size 590×375 mm 590×375 mm
Total Height 1127 mm 1127 mm
Motor Power 1100 W 1100 W
Gross/Net Weight 165/140 kg 165/140 kg
Packing Size 83×47×104 cm 83×47×104 cm

Product Specifications & Accessories

Model AEK-Z4120D AEK-Z4125D Quantity
Drilling Machine AEK-Z4120D AEK-Z4125D 1 unit
V-Belt B-1245Li B-1245Li 1 piece
Drill Chuck 1.0-16mm/B18 1.0-16mm/B18 1 box
Taper Shank Adapter MT2-B18 MT3-B18 1 piece
Taper Sleeve MT3-MT2 1 piece
Cutting Iron Yes Yes 1 piece
Lift Handwheel Yes Yes 1 piece
User Manual/Certificate/Pack List 1 set
