3 in 1 NC Servo Decoiler Straightener Feeder (0.3-3.2mm) banner

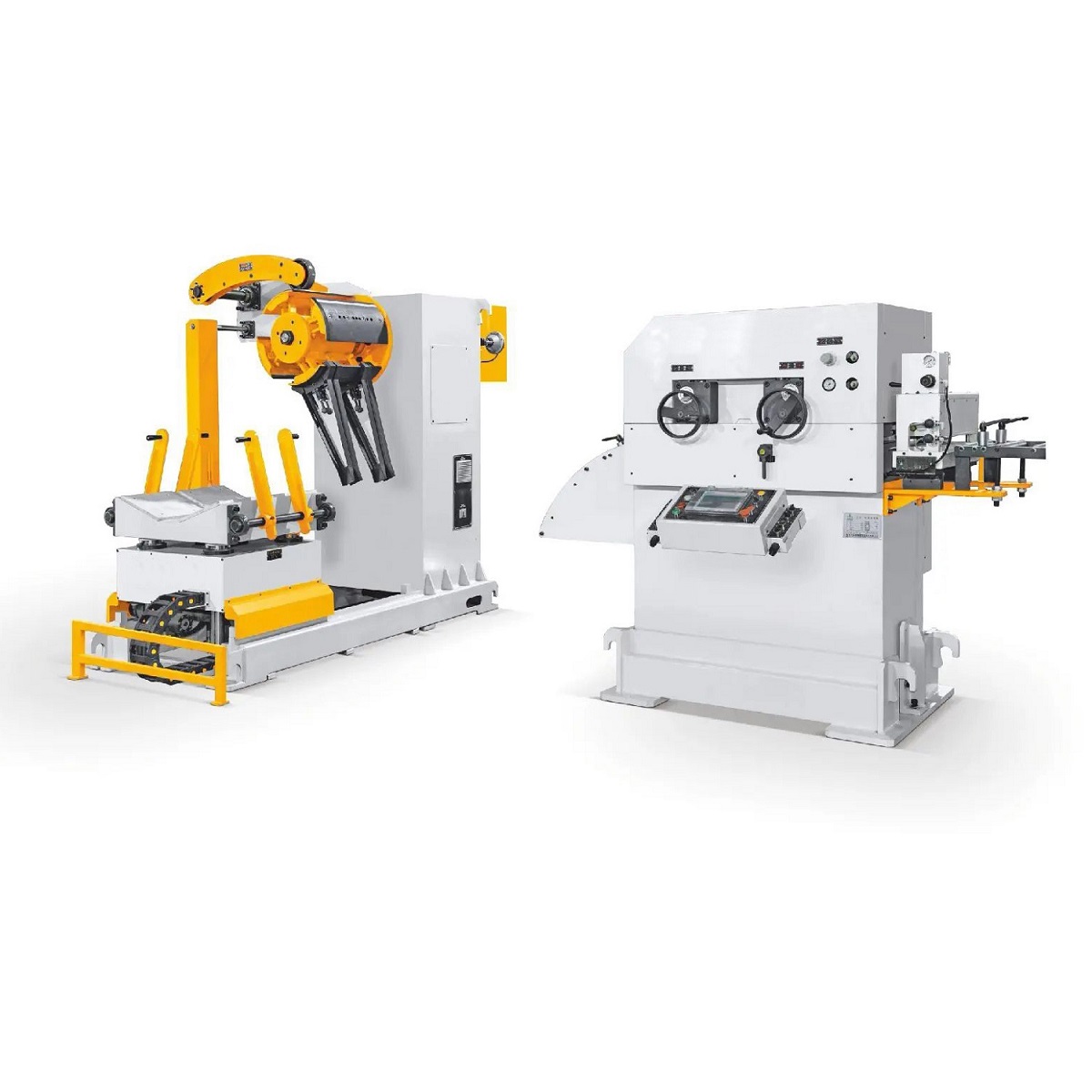

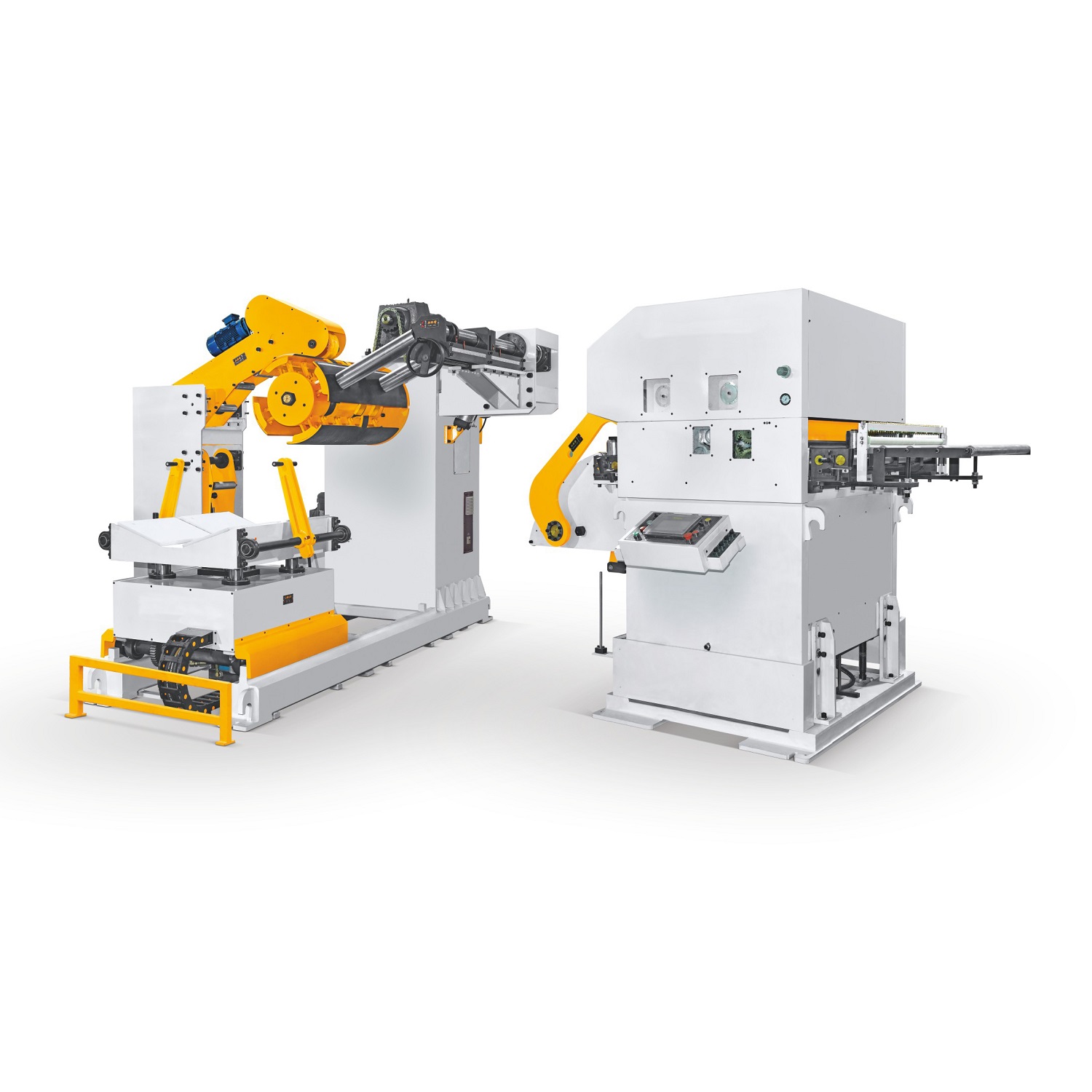

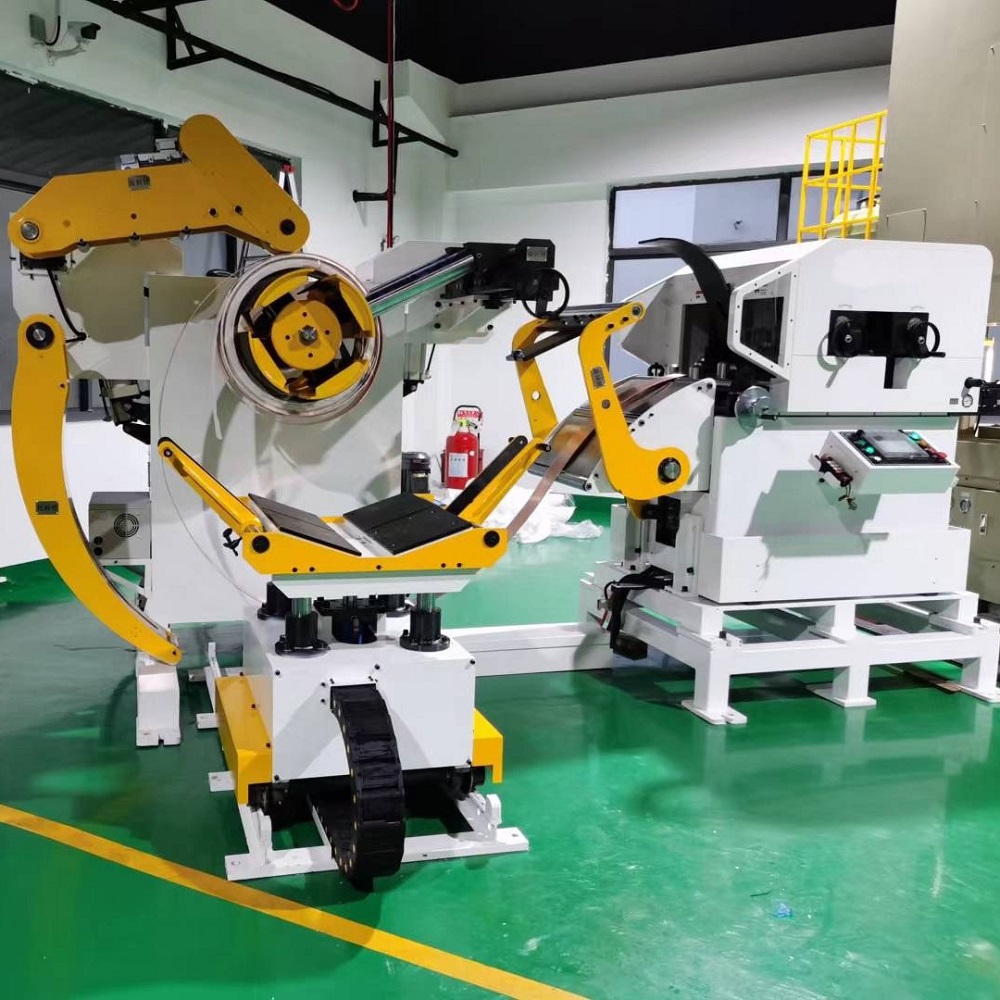

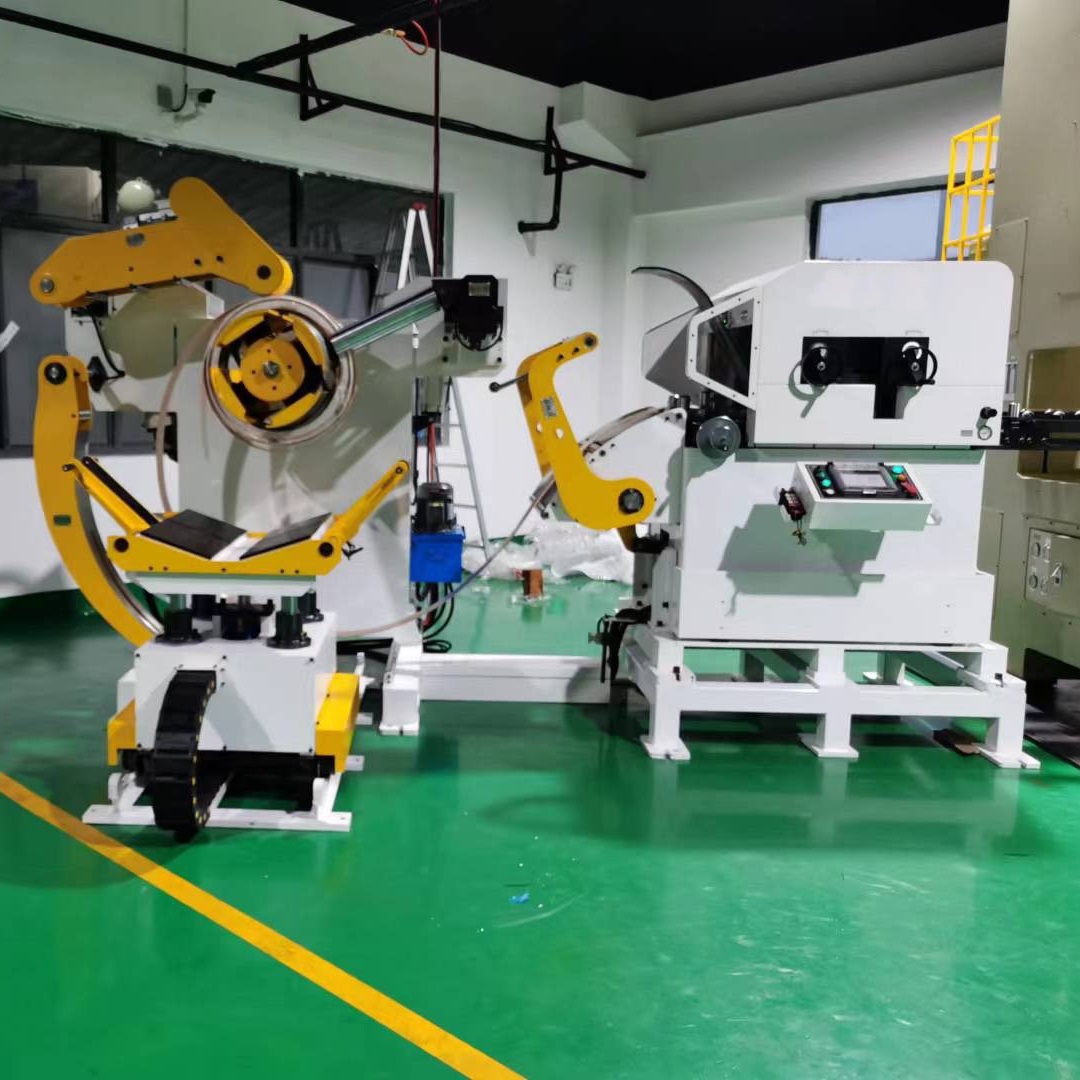

3 in 1 NC Servo Decoiler Straightener Feeder (0.3-3.2mm)

3 in 1 nc servo decoiler straightener feeder img4
3 in 1 nc servo decoiler straightener feeder img3
3 in 1 nc servo decoiler straightener feeder img1
3 in 1 nc servo decoiler straightener feeder img2
3 in 1 nc servo decoiler straightener feeder img4
3 in 1 nc servo decoiler straightener feeder img3
3 in 1 nc servo decoiler straightener feeder img1
3 in 1 nc servo decoiler straightener feeder img2

Model Number: AEK NC1-Series

$10500.00$9500.00
(Reference Price)

The AEK NC1 Series is designed for metal coil materials ranging from 50mm to 1300mm in width and 0.3mm to 3.2mm in thickness.

Automated Solutions: It integrates coil decoiling, straightening, and feeding into a single system, delivering a highly efficient and precise solution for automated stamping production.

Precision Feeding: Supports a maximum feed length of 9999mm and a speed of up to 24m/min.

Send Inquiry Now

Automatic Coil Decoiler with Straightener & Servo Feeder for Power Press

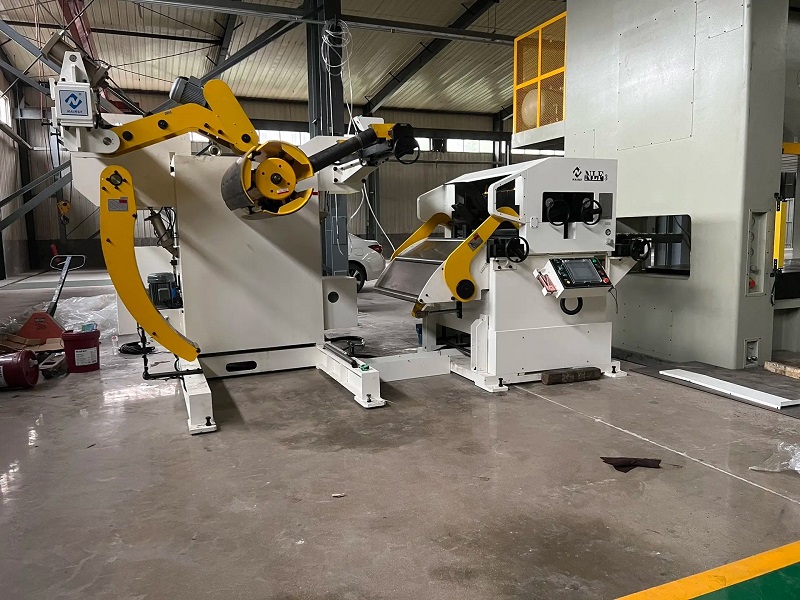

automatic 3 in 1 coil decoiler straightener feeder for power press machines

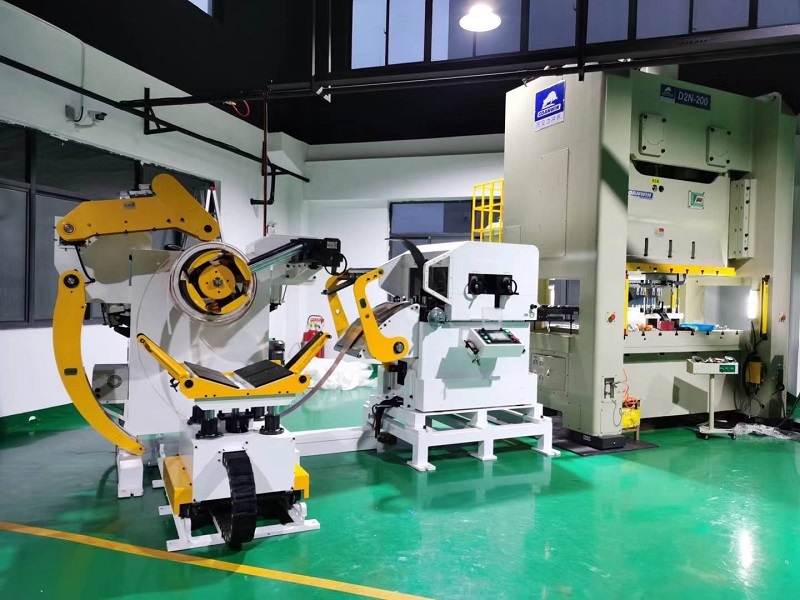

3 in 1 decoiler straightener feeder for press machines

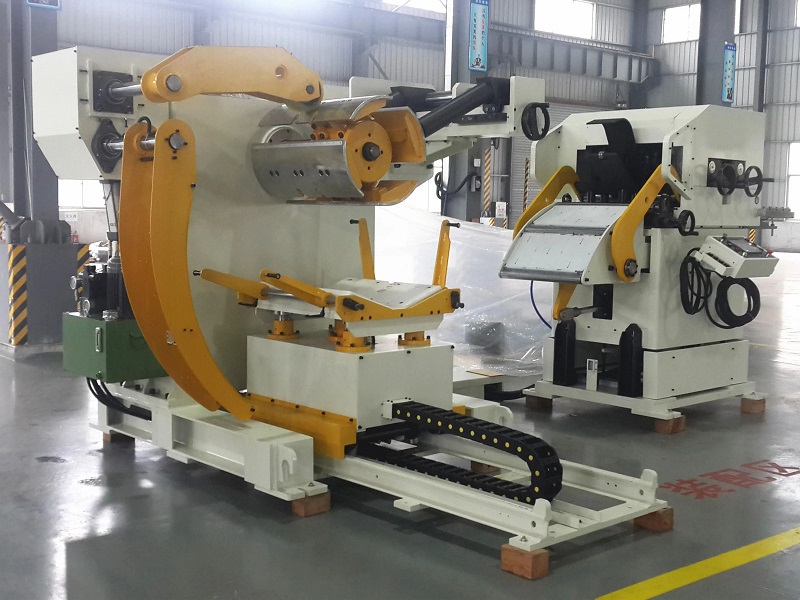

hydraulic 3 in 1 decoiler straightener feeder
nc servo feeder 3 in 1 metal coil feeding line
automatic feeding car

Customized 3-in-1 Decoiler Straightener Feeder for Your Stamping Line

nc servo decoiler straightener feeder for sale
3 in 1 nc servo decoiler straightener feeder for thick steel coils 0 3 3 2mm
high speed 3 in 1 nc servo feeder for precision stamping lines

Product Description

  • Material Frame: Q235B steel, laser-cut and CNC-machined for precision; annealed for durability.
  • Material Spindle: 40Mn tube forging with heat treatment for flexibility and smooth operation.
  • Vertical Boards: Cast steel ZG25, annealed and CNC-machined for strength and accuracy.
  • Straightening Rollers: GCr15 steel, heat-treated and precision-ground for durability.
  • Gear System: Advanced grinding and heat treatment for high wear resistance and longevity.

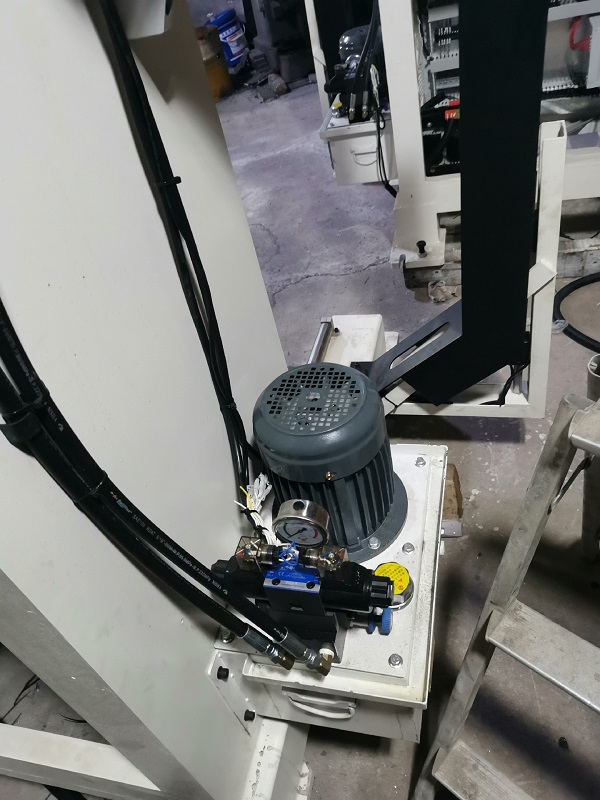

well known brand motor

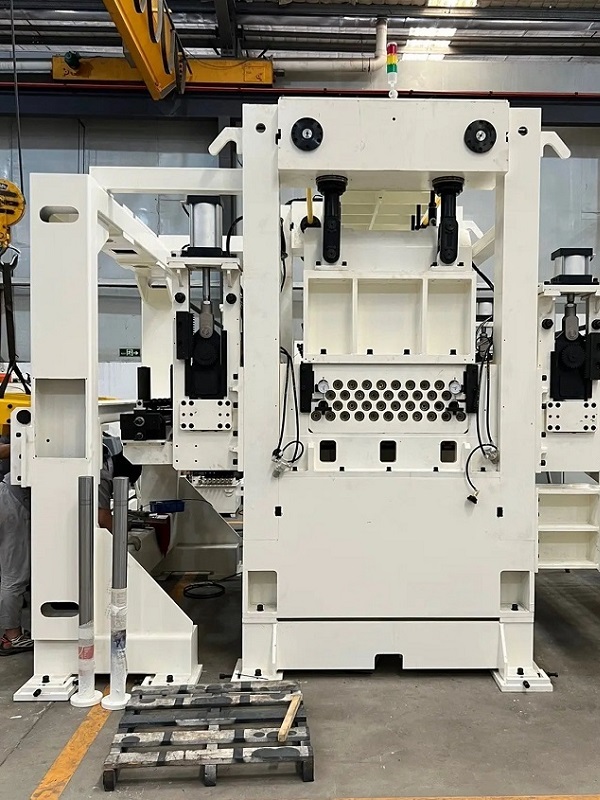

high load bearing integral frame

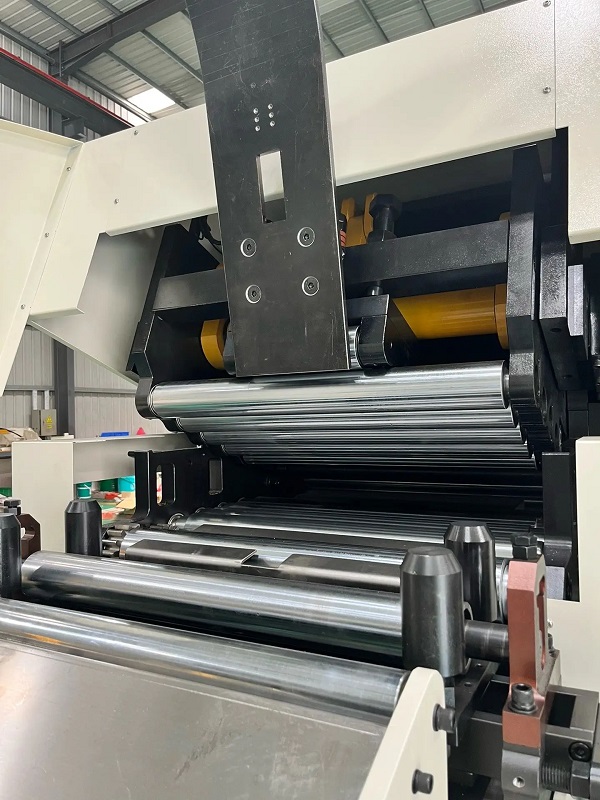

coil inlet

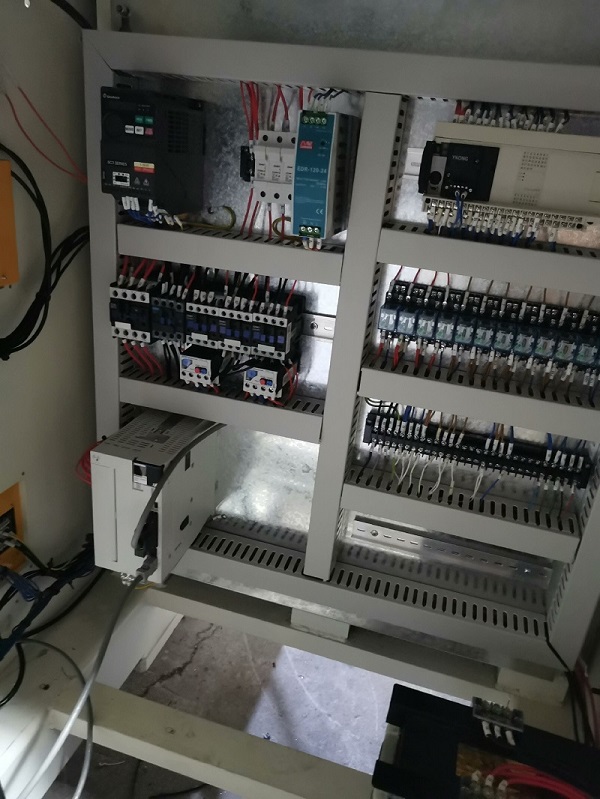

electrical cabinet control
Model AEK NC1-400 AEK NC1-600 AEK NC1-800 AEK NC1-1000B AEK NC1-1300B
Material Width (mm) 50~400 50~600 50~800 50~1000 50~1300
Material Thickness (mm) 0.3~3.2 0.3~3.2 0.3~3.2 0.3~3.2 0.3~3.2
Max. Coil Weight (kg) 3000 3000 5000 7000 7000
Coil O.D. (mm) 1400 1400 1400 1400 1400
Coil I.D. (mm) 508 508 508 508 508
Max. Feed Length (mm) 9999 9999 9999 9999 9999
Feed Speed (m/min) 16~24 16~24 16~24 16~24 16~24
Straightening Rolls Upper 5/Lower 4 Upper 5/Lower 4 Upper 5/Lower 4 Upper 5/Lower 4 Upper 5/Lower 4
Pinch Rolls (group) 1 1 1 1 1
Straightener Motor (Kw) AC3.0 AC3.0 AC5.0 AC5.0 AC7.0
Mandrel Expansion Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Decoiler Motor (Kw) 2.2 2.2 3.75 3.75 3.75
Input Power 3Phase AC 380V (or local voltage) 3Phase AC 380V (or local voltage) 3Phase AC 380V (or local voltage) 3Phase AC 380V (or local voltage) 3Phase AC 380V (or local voltage)
Height Adjustment Electric adjustment Electric adjustment Electric adjustment Electric adjustment Electric adjustment
Air Pressure (Mpa) 0.5 0.5 0.5 0.5 0.5
Feeding line height adjust Electric Adjustment Electric Adjustment Electric Adjustment Electric Adjustment Electric Adjustment
