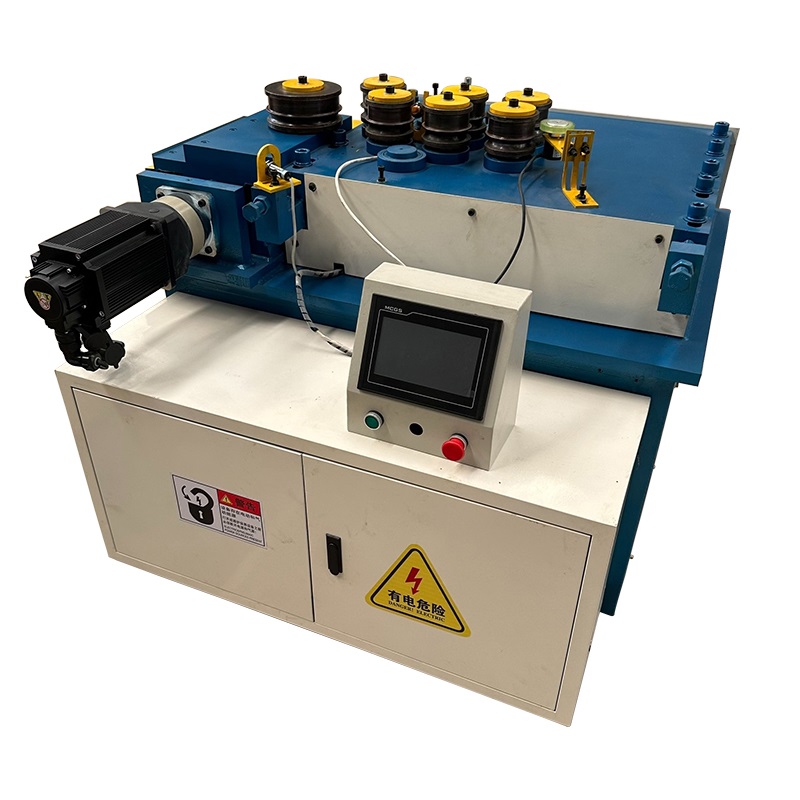

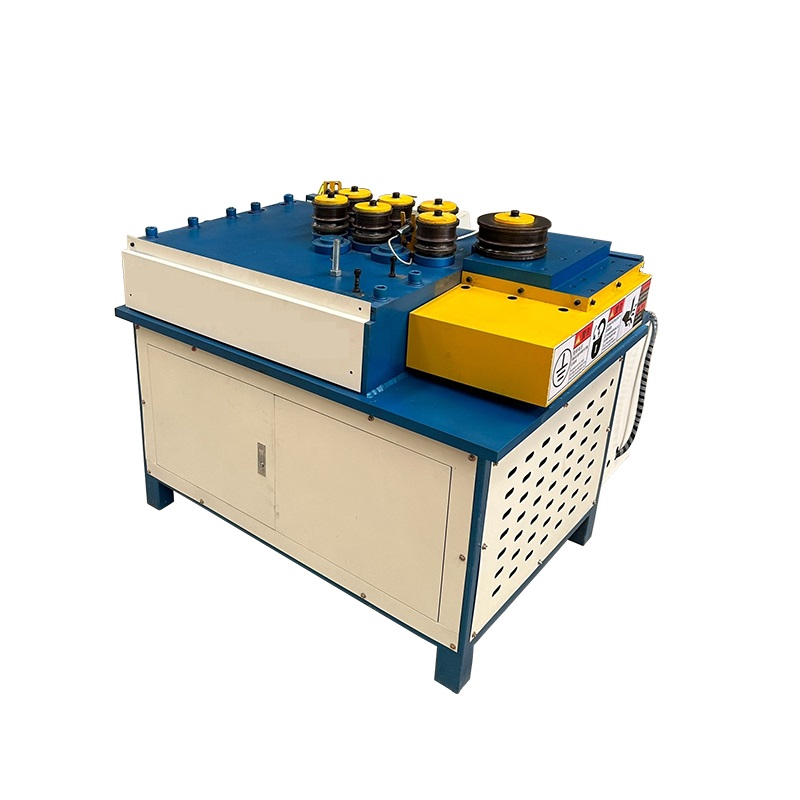

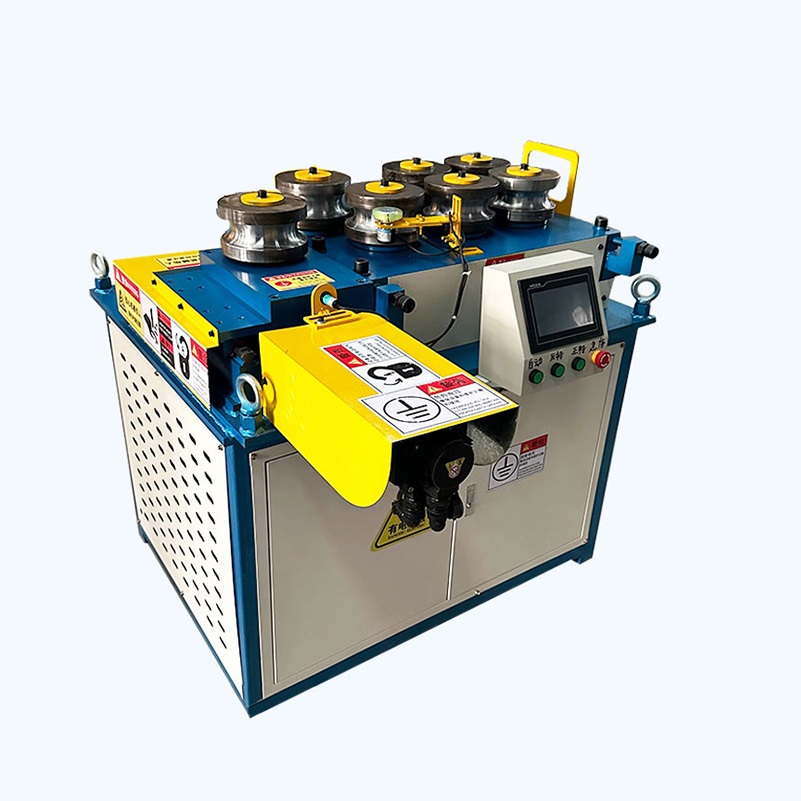

2.4 inch electric Spiral Coil tube bending machine

Model Number: AEK CPB-60

$7000.00$5800.00
(Reference Price)

AEK CPB-60 electric greenhouse tube bending machine can achieve high-precision and high-efficiency tube bending operations. Whether it is diameter size, bending angle, or bending radius, it can be precisely adjusted according to customer needs.

Servo motors do positioning to achieve the desired radius. All shafts, gears and pinions are made of hardened 45# nickel-chromium steel.

Featured videos

Pipe bending machine Arc bending machine Video

Pipe bending machine Arc bending machine

Round tube bending machine Arc bending machine  Video

Round tube bending machine Arc bending machine

Square and round tube bending machine Arc bending machine Video

Square and round tube bending machine Arc bending machine

Square tube bending machine  Video

Square tube bending machine

  1. The bending angle is controlled by a servo motor encoder, providing a ± 0.1 tolerance
  2. CNC (Programmable Logic Control) system
  3. One set of die wheels can adapt to various specifications of pipes
  4. Bending movement time can be programmed to meet different needs.
  5. Touch screen operation display, easy to operate the machine
  6. The mold can be customized and replaced according to the different sizes of the processed material
  7. The mold is made of 45# hard chrome plated and high-temperature quenched.

Applications

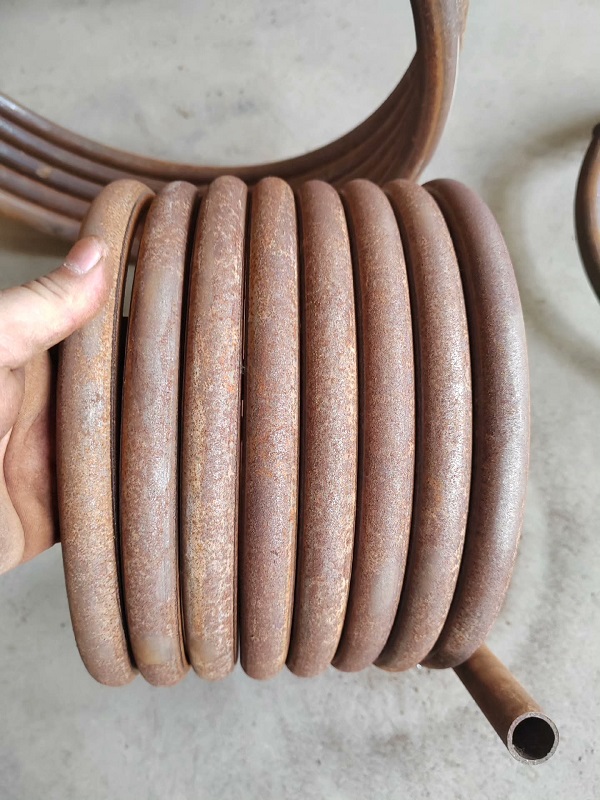

Coiled copper tube

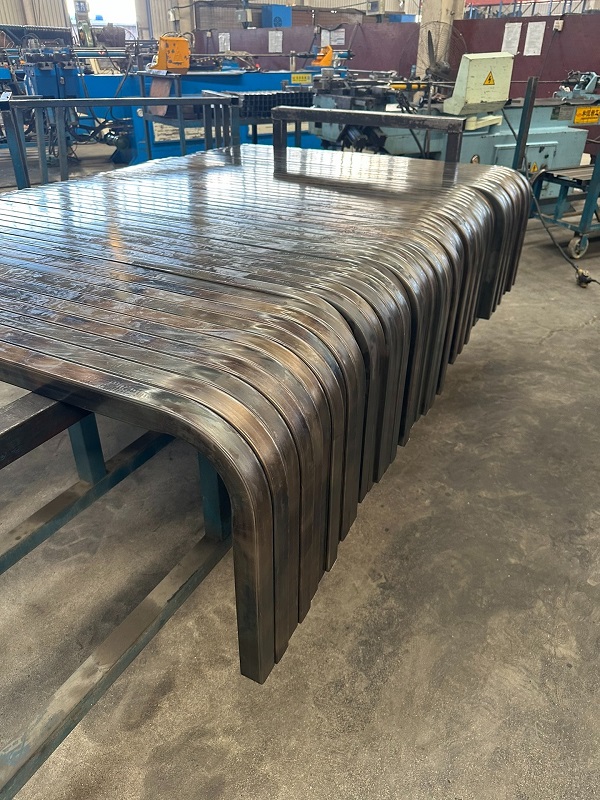

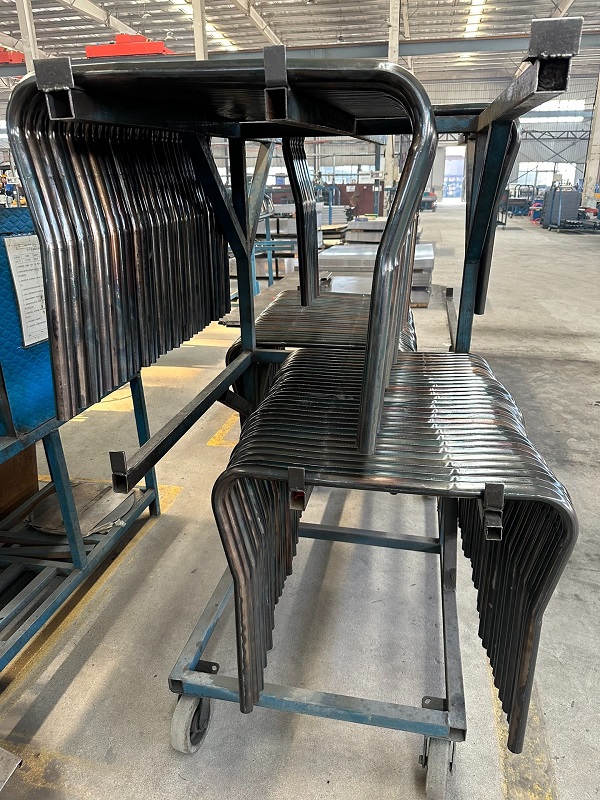

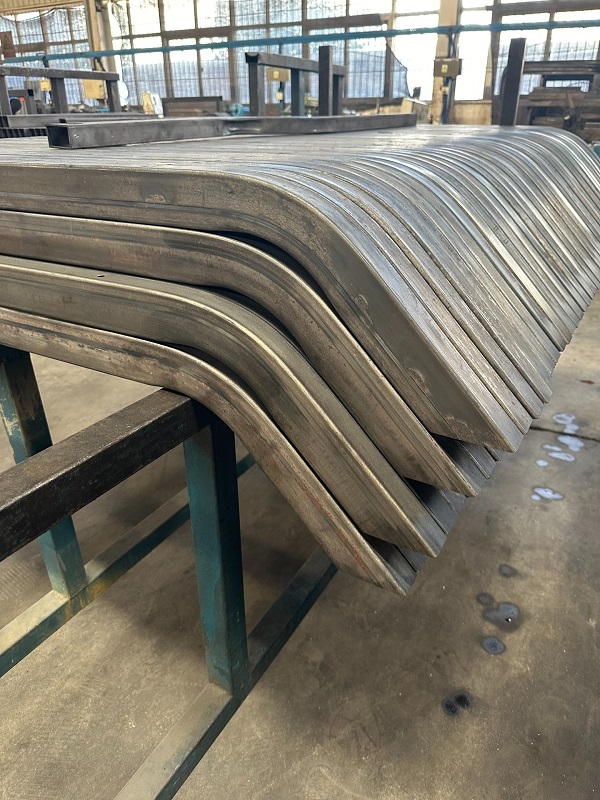

Square tube house frame
Square tube house frame

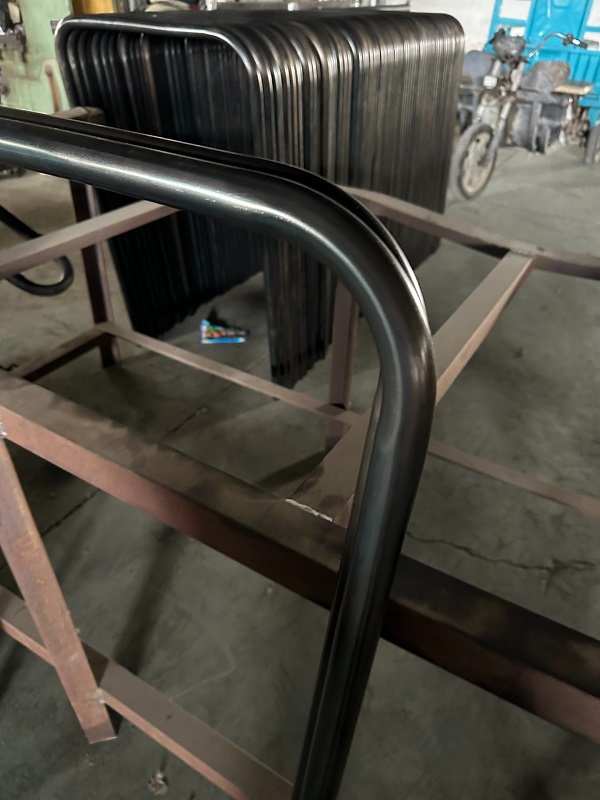

Stainless steel guardrail
Playground Bend
7 inch plc
High precision servo motor

product details

PLC system is easy to operate

It can record thousands of pieces of information and start with one button, which is easy to operate.

High performance

CNC control, high precision, one-time molding machine saves labor, fast speed, and can adjust the bending arc size at will

Wide range of applications

Greenhouse pipe processing, mirror frame processing, wire mesh fence ironwork processing, park construction, breeding construction
Door and window processing and other industries.

45# quenching die roller

Made of high-hardness steel, even pressure distribution

Model 2.4 inch square /electric greenhouse pipe bending machine
Material / Metal Processed ALLOY, Brass / Copper, Carbon steel, Stainless steel, Aluminum
Max. Bending Angle (Deg) 180
Bending Precision (Deg) ±0.1
Shaft diameter 70mm
Molding line number 7 rounds Bearing steel
Steel plate thickness 40mm
Processing diameter range R>115mm
Machine size 1200*1100*1100 MM
Bending speed 1-50 m/min
Machine power Main motor 5.5kw, servo motor 4kw
Bendable tube type Round tube, square tube, oval tube, shaped tube
Automation Automatic
Power (kW) 9.5
Weight (KG) 1100
Machinery Test Report Provided
Video outgoing-inspection Provided
Warranty of core components 1 Year
Core Components Bearing, Motor, PLC, Pressure vessel, Gearbox
Extra Services Machining
Warranty 2 years
Applicable Industries Building Material Shops, Manufacturing Plant, Retail, Construction works , Other
Key Selling Points High-accuracy
